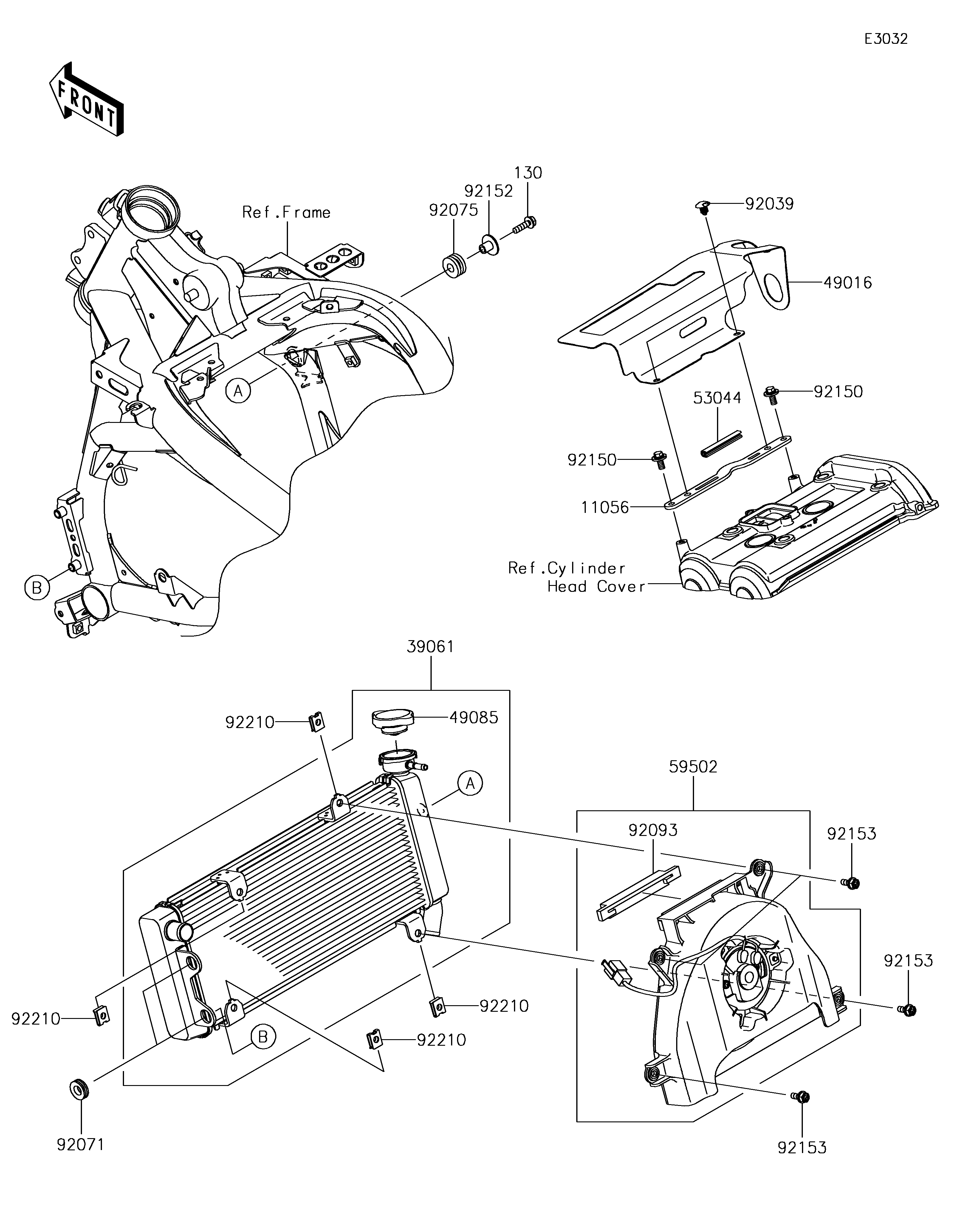

Parts Diagrams |
11056
130
39061
49016
49085
53044
59502
92039
92071
92075
92093
92150
92150
92152
92153
92153
92153
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11056 | 11056-7316 | 1 | ||
| BOLT-FLANGED,6X22 | 130 | 130BA0622 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-0712 | 1 | ||
| COVER-SEAL | 49016 | 49016-0632 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-0006 | 1 | ||
| TRIM | 53044 | 53044-0565 | 1 | ||
| FAN-ASSY | 59502 | 59502-0603 | 1 | ||
| RIVET | 92039 | 92039-0722 | 2 | ||
| GROMMET | 92071 | 92071-1115 | 2 | ||
| DAMPER,10X24X12 | 92075 | 92075-1690 | 1 | ||
| SEAL | 92093 | 92093-0636 | 1 | ||
| BOLT,FLANGED,6X14 | 92150 | 92150-1689 | 2 | ||
| COLLAR,6.5X10X13.1 | 92152 | 92152-0910 | 1 | ||
| BOLT | 92153 | 92153-0531 | 4 | ||
| NUT | 92210 | 92210-1323 | 4 |
| BRACKET | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X22 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X24X12 | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X14 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X10X13.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
