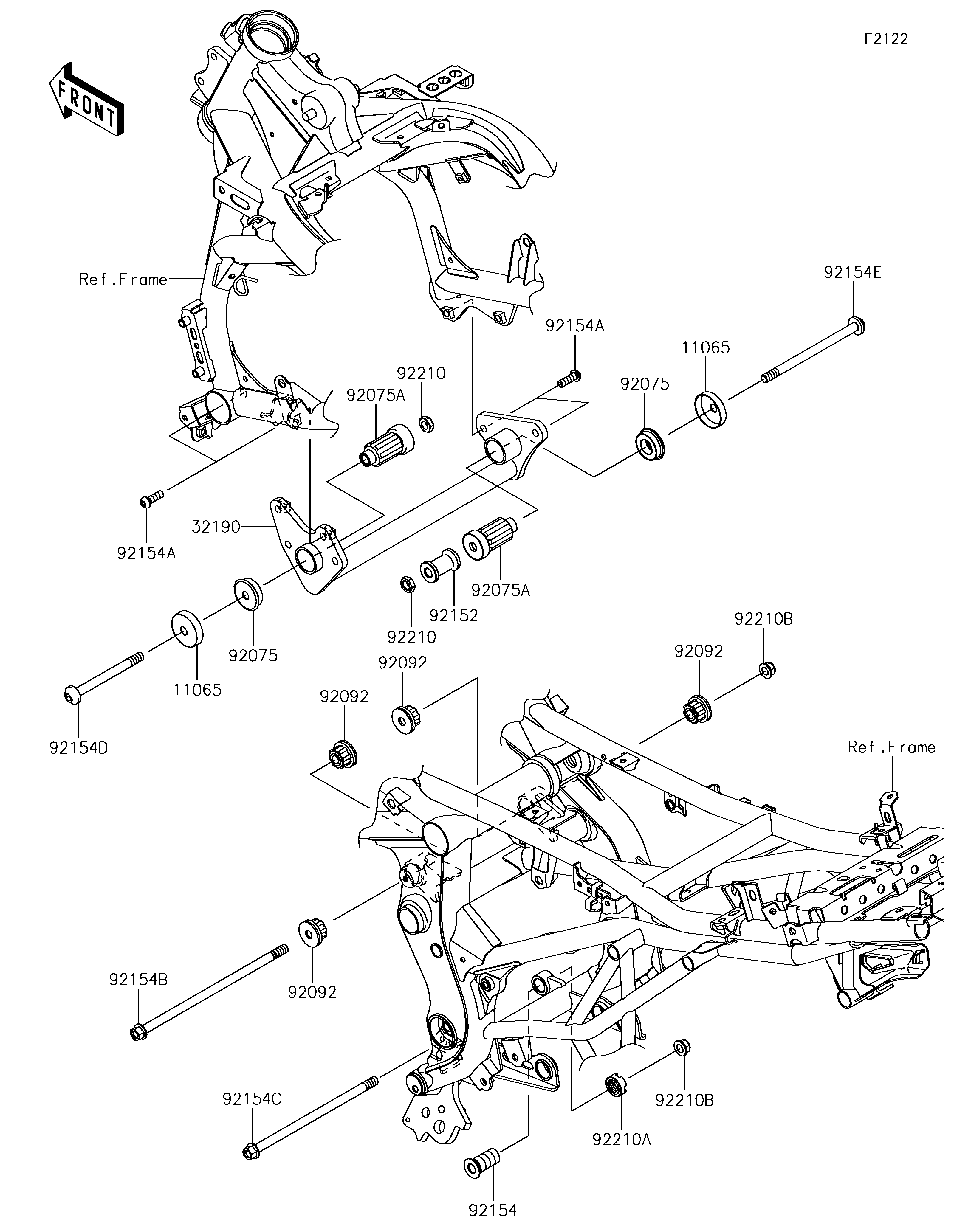

2017 Versys 650 ABS - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
32190
92075
92075
92075A
92075A
92092
92092
92092
92092
92152
92154
92154A
92154A
92154B
92154C
92154D
92154E
92210
92210
92210A
92210B
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,10.5X43X10 11065 11065-0871 2
BRACKET-ENGINE,FR 32190 32190-0667 1
DAMPER,ENGINE MOUNT 92075 92075-1738 2
DAMPER,ENGINE MOUNT,MAIN 92075A 92075-1739 2
BUSHING-RUBBER 92092 92092-0021 4
COLLAR,10.5X26X40 92152 92152-1878 1
BOLT,ENGINE MOUNT,18MM 92154 92154-0249 1
BOLT,SOCKET,8X25 92154A 92154-1485 4
BOLT,FLANGED,10X237 92154B 92154-1505 1
BOLT,FLANGED,10X200 92154C 92154-1660 1
BOLT,SOCKET,10X110 92154D 92154-1671 1
BOLT,SOCKET,10X150 92154E 92154-1672 1
NUT,LOCK,10MM 92210 92210-0784 2
NUT,CASTLE,18MM 92210A 92210-0963 1
NUT,LOCK,FLANGED,10MM 92210B 92210-1081 2
