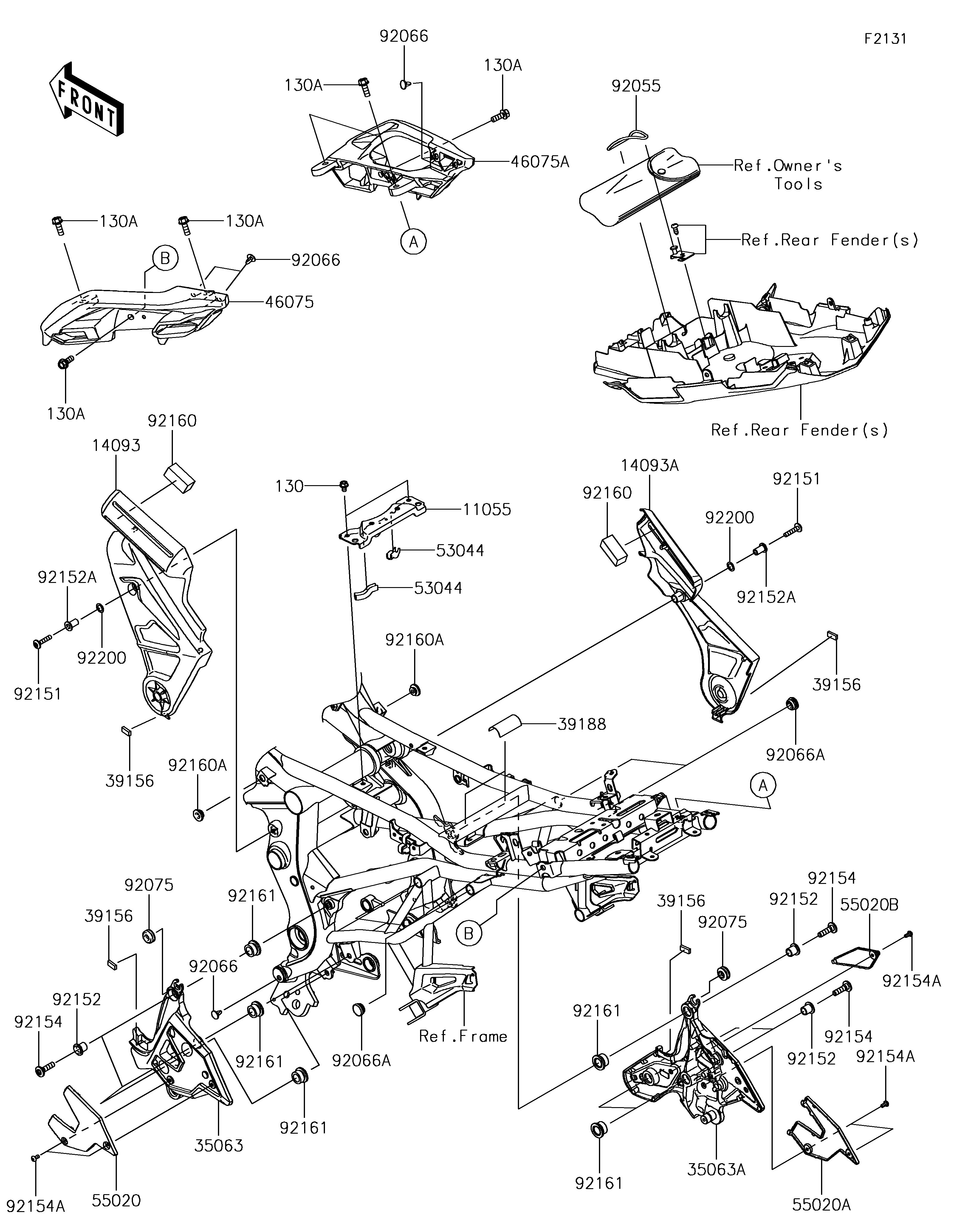

2017 Versys 650 ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11055
130
130A
130A
130A
130A
130A
14093
14093A
35063
35063A
39156
39156
39156
39156
39188
46075
46075A
53044
53044
55020
55020A
55020B
92055
92066
92066
92066
92066A
92066A
92075
92075
92151
92151
92152
92152
92152
92152A
92152A
92154
92154
92154
92154A
92154A
92154A
92160
92160
92160A
92160A
92161
92161
92161
92161
92161
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK 11055 11055-1929 1
BOLT-FLANGED,6X10 130 130BA0610 2
BOLT-FLANGED,8X22 130A 130BA0822 6
COVER,PIVOT,LH,F.S.BLACK 14093 14093-0263-18T 1
COVER,PIVOT,RH,F.S.BLACK 14093A 14093-0264-18T 1
STAY,STEP,LH,F.S.BLACK 35063 35063-0967-18R 1
STAY,STEP,RH,F.S.BLACK 35063A 35063-1376-18R 1
PAD,18X8X4 39156 39156-1921 4
TAPE,40X50 39188 39188-0049 2
GRIP,TANDEM,LH,F.S.BLACK 46075 46075-0593-18R 1
GRIP,TANDEM,RH,F.S.BLACK 46075A 46075-0594-18R 1
TRIM,L=40 53044 53044-1174 2
GUARD,STEP,LH 55020 55020-0978 1
GUARD,STEP,RH,RR 55020A 55020-0979 1
GUARD,STEP,RH,FR 55020B 55020-0980 1
RING-O,62.6X3.5 92055 92055-0798 1
PLUG 92066 92066-1103 5
PLUG 92066A 92066-1306 4
DAMPER 92075 92075-1067 2
BOLT,SOCKET,6X30 92151 92151-1605 2
COLLAR,10.6X13.8X15 92152 92152-0976 6
COLLAR,6.5X10X19.1 92152A 92152-1997 2
BOLT,SOCKET,8X30 92154 92154-0842 6
BOLT,SOCKET,5X10 92154A 92154-1292 5
DAMPER 92160 92160-1272 2
DAMPER 92160A 92160-1613 2
DAMPER,14X26X13.9 92161 92161-0946 6
WASHER,10.4X15.9X0.5 92200 92200-0157 2
