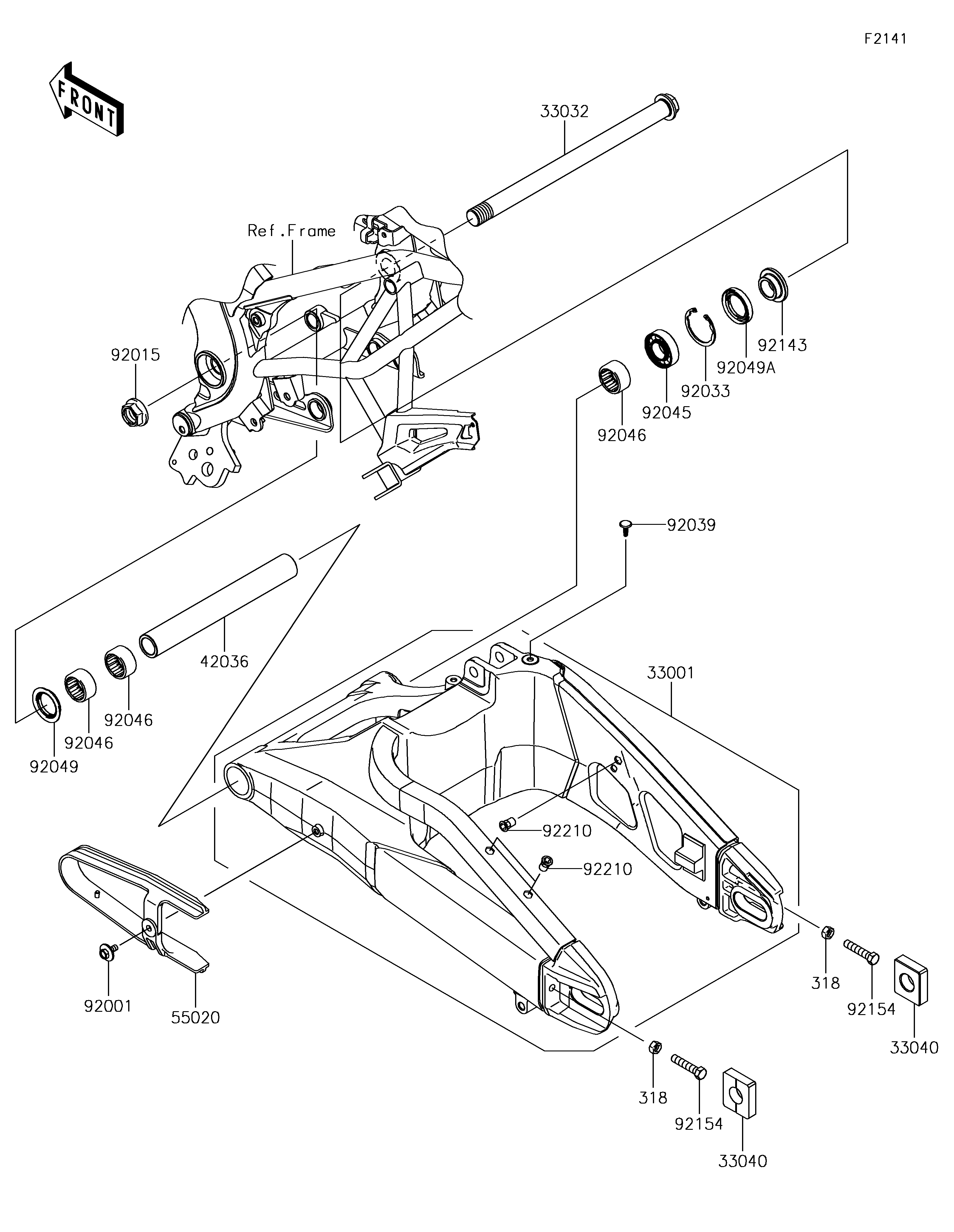

Parts Diagrams |
318
318
33001
33032
33040
33040
42036
55020
92001
92015
92033
92039
92045
92046
92046
92046
92049
92049A
92143
92154
92154
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT-HEX-SMALL,8MM | 318 | 318BA0800 | 2 | ||
| ARM-COMP-SWING,F.S.BLACK | 33001 | 33001-0651-18R | 1 | ||
| SHAFT-SWING ARM,20X300 | 33032 | 33032-0041 | 1 | ||
| ADJUSTER-CHAIN | 33040 | 33040-1109 | 2 | ||
| SLEEVE,SWING ARM,L=219.5 | 42036 | 42036-0066 | 1 | ||
| GUARD,CHAIN | 55020 | 55020-0234 | 1 | ||
| BOLT,6X16 | 92001 | 92001-1950 | 1 | ||
| NUT,FLANGED,20MM | 92015 | 92015-1724 | 1 | ||
| RING-SNAP,42MM | 92033 | 92033-1041 | 1 | ||
| RIVET | 92039 | 92039-3787 | 1 | ||
| BEARING-BALL,6004UL11 | 92045 | 92045-0017 | 1 | ||
| BEARING-NEEDLE,7E-HVS 28X34X17 | 92046 | 92046-0008 | 3 | ||
| SEAL-OIL | 92049 | 92049-0132 | 1 | ||
| SEAL-OIL | 92049A | 92049-0138 | 1 | ||
| COLLAR,SWING ARM,RH,L=12.5 | 92143 | 92143-1727 | 1 | ||
| BOLT,8X40 | 92154 | 92154-0288 | 2 | ||
| NUT,POP,6MM,L=15 | 92210 | 92210-1397 | 3 |
