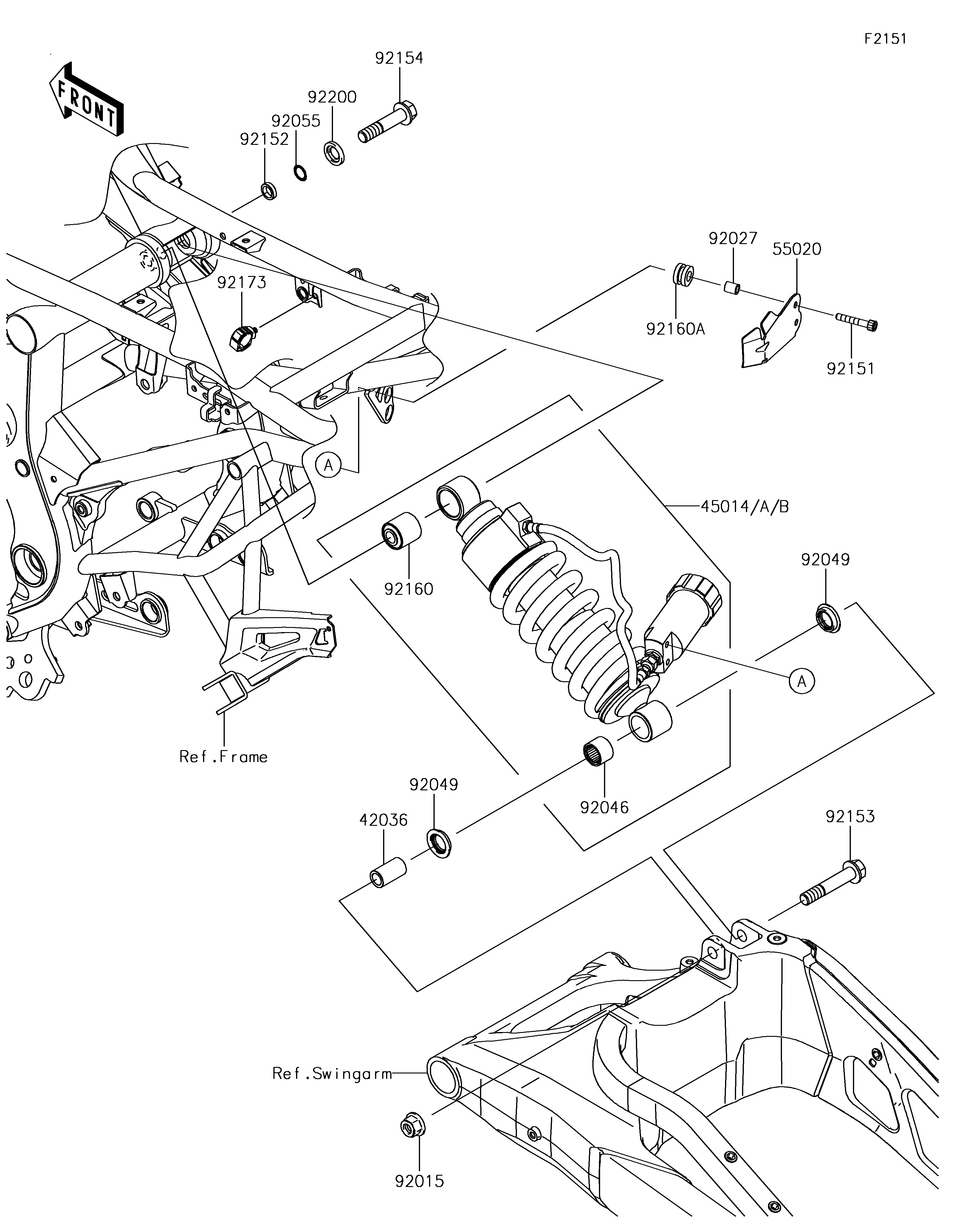

2017 Versys 650 ABS - Suspension/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
42036
45014A
55020
92015
92027
92046
92049
92049
92055
92151
92152
92153
92154
92160
92160A
92173
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SLEEVE,12.1X18X32 42036 42036-0024 1
SHOCKABSORBER,G.B.GREEN 45014A 45014-0467-46Y 1 _________________________________________CA,US
GUARD 55020 55020-0977 1
NUT,LOCK,FLANGED,12MM 92015 92015-1433 1
COLLAR,6.8X10X11.5 92027 92027-1210 2
BEARING-NEEDLE,SFYZM182417 92046 92046-1272 1
SEAL-OIL 92049 92049-0133 2
RING-O,11.8X2.4 92055 92055-0843 1
BOLT,SOCKET,6X35 92151 92151-1390 2
COLLAR,12.1X16.8X4.4 92152 92152-0811 1
BOLT,FLANGED,12X65 92153 92153-1767 1
BOLT,FLANGED,12X55 92154 92154-0289 1
DAMPER,SHOCKABSORBER 92160 92160-1161 1
DAMPER,10X20X12 92160A 92160-1167 2
CLAMP,HOLDER CLIP 92173 92173-0868 1
WASHER,12.5X24X3.2 92200 92200-0519 1
