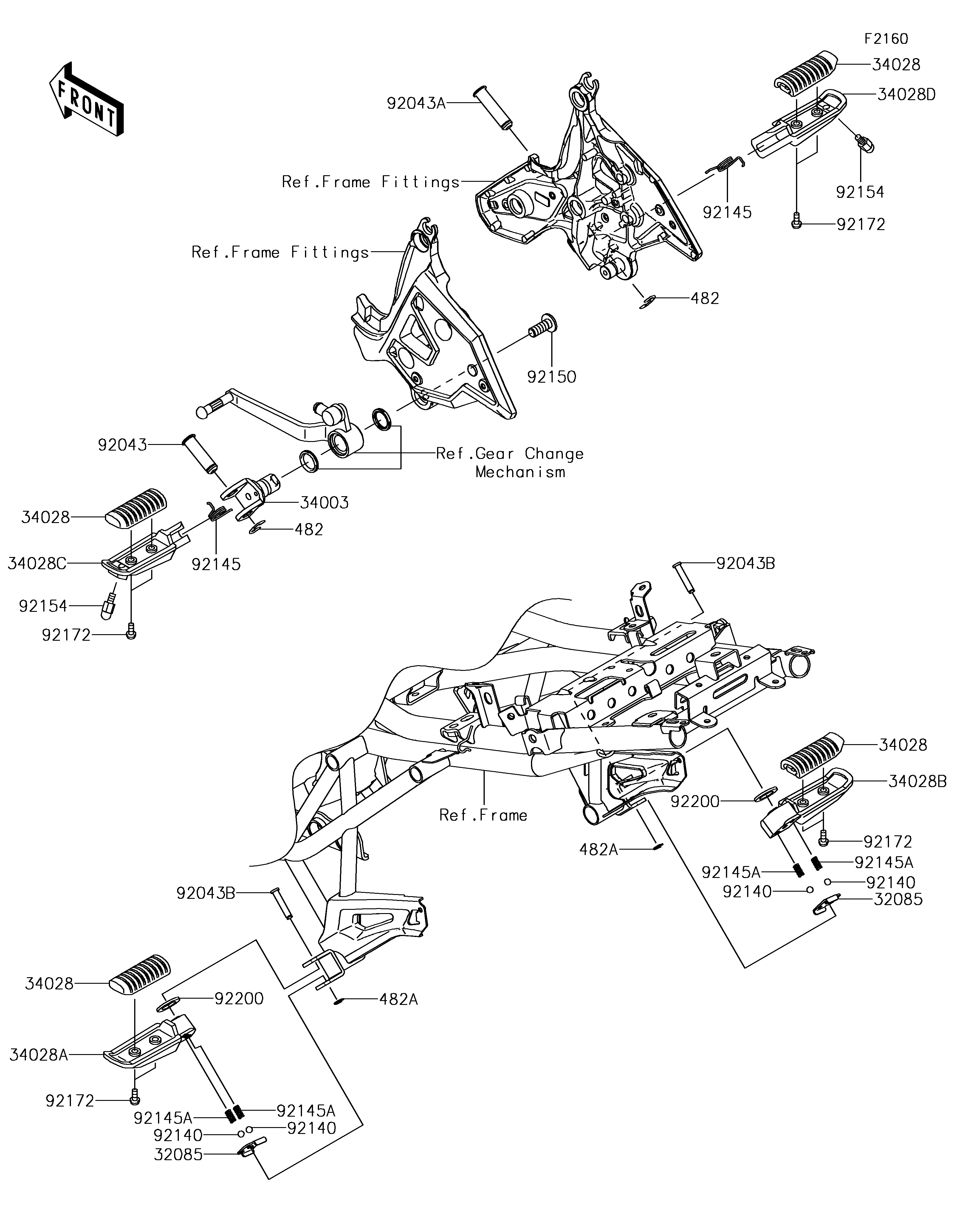

2017 Versys 650 ABS - Footrests

DOWNLOAD PDF
SELECT A NEW PART
32085
32085
34003
34028
34028
34028
34028
34028A
34028B
34028C
34028D
482
482
482A
482A
92043
92043A
92043B
92043B
92140
92140
92140
92140
92145
92145
92145A
92145A
92145A
92145A
92150
92154
92154
92172
92172
92172
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STOPPER,REAR STEP 32085 32085-0047 2
HOLDER-STEP,FR,LH 34003 34003-0145 1
STEP,RUBBER 34028 34028-0133 4
STEP,RR,LH 34028A 34028-0314 1
STEP,RR,RH 34028B 34028-0315 1
STEP,FR,LH 34028C 34028-0327 1
STEP,FR,RH 34028D 34028-0328 1
CIRCLIP-TYPE-E,10MM 482 482EA0100 2
CIRCLIP-TYPE-E 482A 482EA5000 2
PIN,12X37 92043 92043-0025 1
PIN,12X37.5 92043A 92043-0026 1
PIN,6X34 92043B 92043-1271 2
BALL,6.35MM 92140 92140-0008 4
SPRING,STEP RETURN 92145 92145-0723 2
SPRING 92145A 92145-1319 4
BOLT,SOCKET,10X25 92150 92150-1268 1
BOLT,BANK SENSOR 92154 92154-0838 2
SCREW-PAN-WP-CROS,5X14 92172 92172-0473 8
WASHER,16X26X2.3 92200 92200-0043 2
