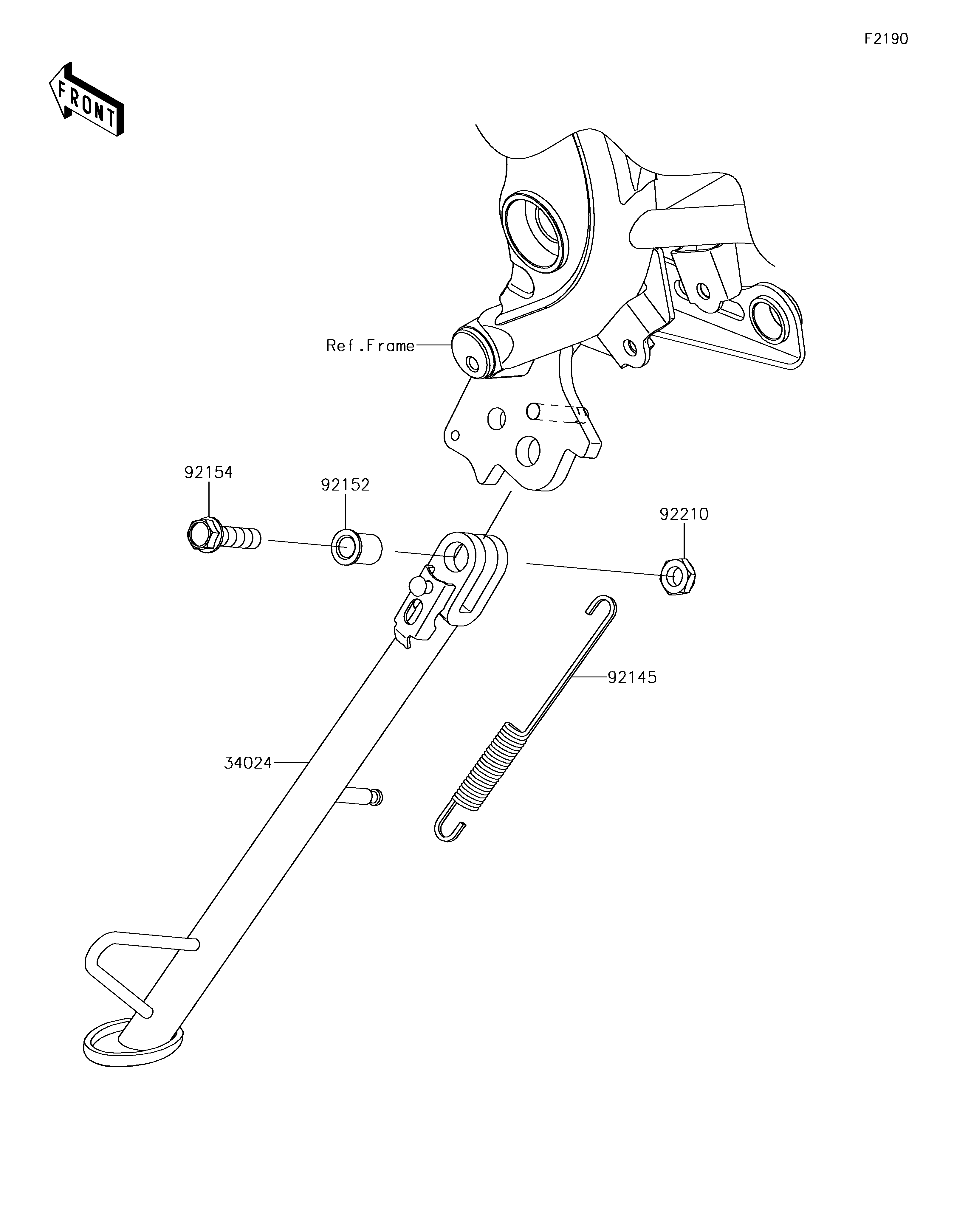

34024
92145
92152
92154
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-SIDE 34024 34024-0126 1
SPRING,SIDE STAND 92145 92145-0813 1
COLLAR,10.2X15X20.1 92152 92152-1914 1
BOLT,FLANGED,10X37 92154 92154-1352 1
NUT,LOCK,10MM 92210 92210-0784 1
