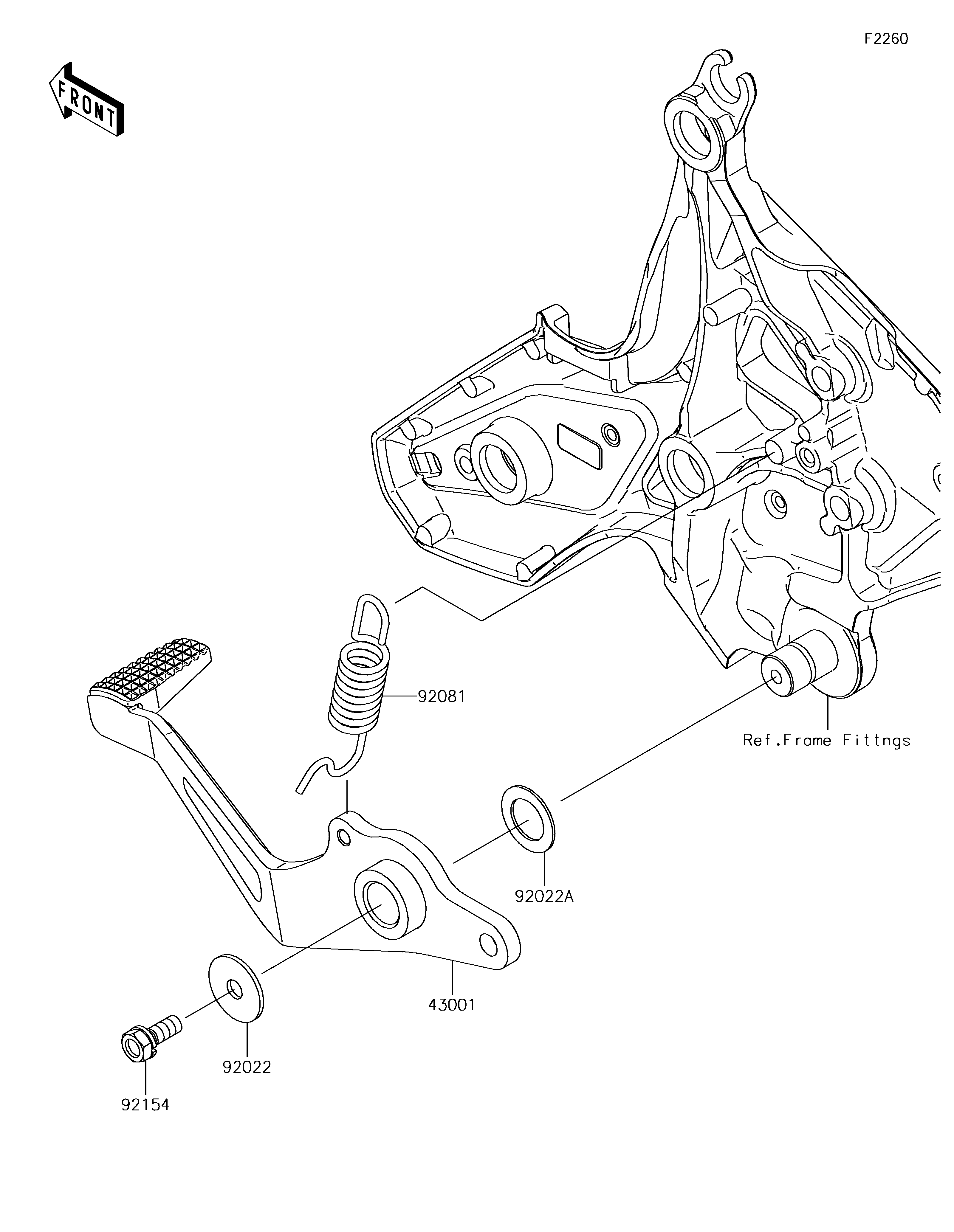

43001
92022
92022A
92081
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-0745 1
WASHER,7X24X1.6 92022 92022-228 1
WASHER,15.3X24X1 92022A 92022-326 1
SPRING,BRAKE PEDAL 92081 92081-1833 1
BOLT,UPSET-WS,6X16 92154 92154-0935 1
