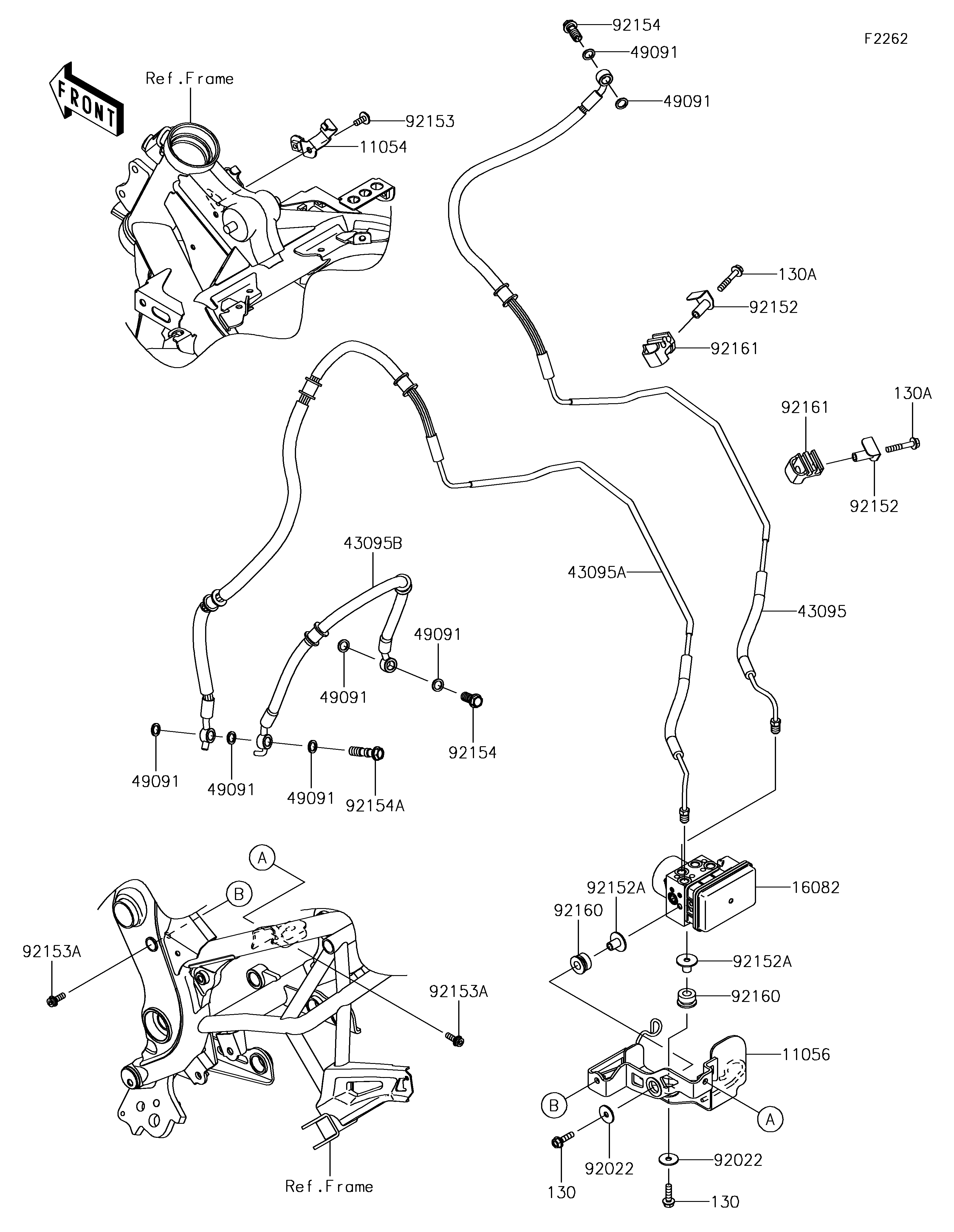

2017 Versys 650 ABS - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
11054
11056
130
130
130A
130A
16082
43095
43095A
43095B
49091
49091
49091
49091
49091
49091
49091
92022
92022
92152
92152
92152A
92152A
92153
92153A
92153A
92154
92154
92154A
92160
92160
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BRAKE PIPE 11054 11054-0408 1
BRACKET,ABS UNIT 11056 11056-3977 1
BOLT-FLANGED,6X22 130 130BA0622 2
BOLT-FLANGED,6X35 130A 130BB0635 2
PUMP-ASSY-OIL,ABS 16082 16082-0783 1
HOSE-BRAKE,FR M/C-ABS UNIT 43095 43095-0818 1
HOSE-BRAKE,ABS UNIT-FR CAL. 43095A 43095-0820 1
HOSE-BRAKE,525MM 43095B 43095-0822 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 7
WASHER,6.5X22X1.6 92022 92022-237 2
COLLAR 92152 92152-0409 2
COLLAR,6.5X10X14.6 92152A 92152-0965 2
BOLT,SOCKET,6X14 92153 92153-1446 1
BOLT,SOCKET,6X16 92153A 92153-1517 2
BOLT,FLANGED,10X23 92154 92154-0732 2
BOLT,FLANGED,10X37 92154A 92154-0733 1
DAMPER 92160 92160-1141 2
DAMPER,BRAKE PIPE 92161 92161-0347 2
