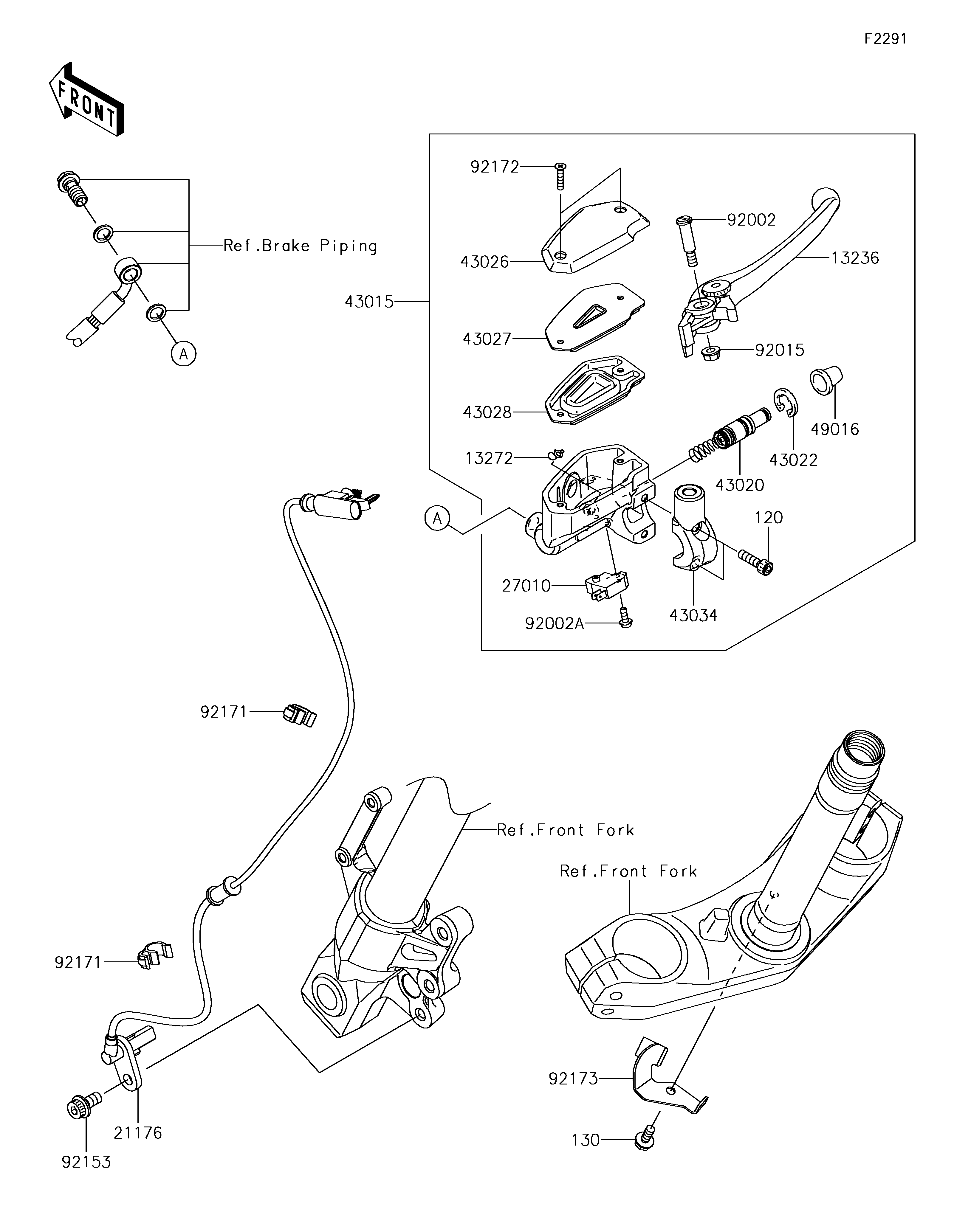

2017 Versys 650 ABS - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
120
130
13236
13272
21176
27010
43015
43020
43022
43026
43027
43028
43034
49016
92002
92002A
92015
92153
92171
92171
92172
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X22 120 120CB0622 2
BOLT-FLANGED,6X14 130 130BA0614 1
LEVER-COMP,FRONT BRAKE 13236 13236-0140 1
PLATE 13272 13272-0573 1
SENSOR,FR 21176 21176-0776 1
SWITCH,BRAKE 27010 27010-0762 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0601 1
PISTON-COMP-BRAKE 43020 43020-0008 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-0019 1
PLATE-DIAPHRAGM 43027 43027-0008 1
DIAPHRAGM 43028 43028-0015 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0049 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
NUT,FLANGED,6MM 92015 92015-1528 1
BOLT,SOCKET,8X16 92153 92153-0327 1
CLAMP,BRAKE HOSE 92171 92171-1819 2
SCREW,4X20 92172 92172-0320 2
CLAMP,FORK UNDER HOLDER 92173 92173-1288 1
