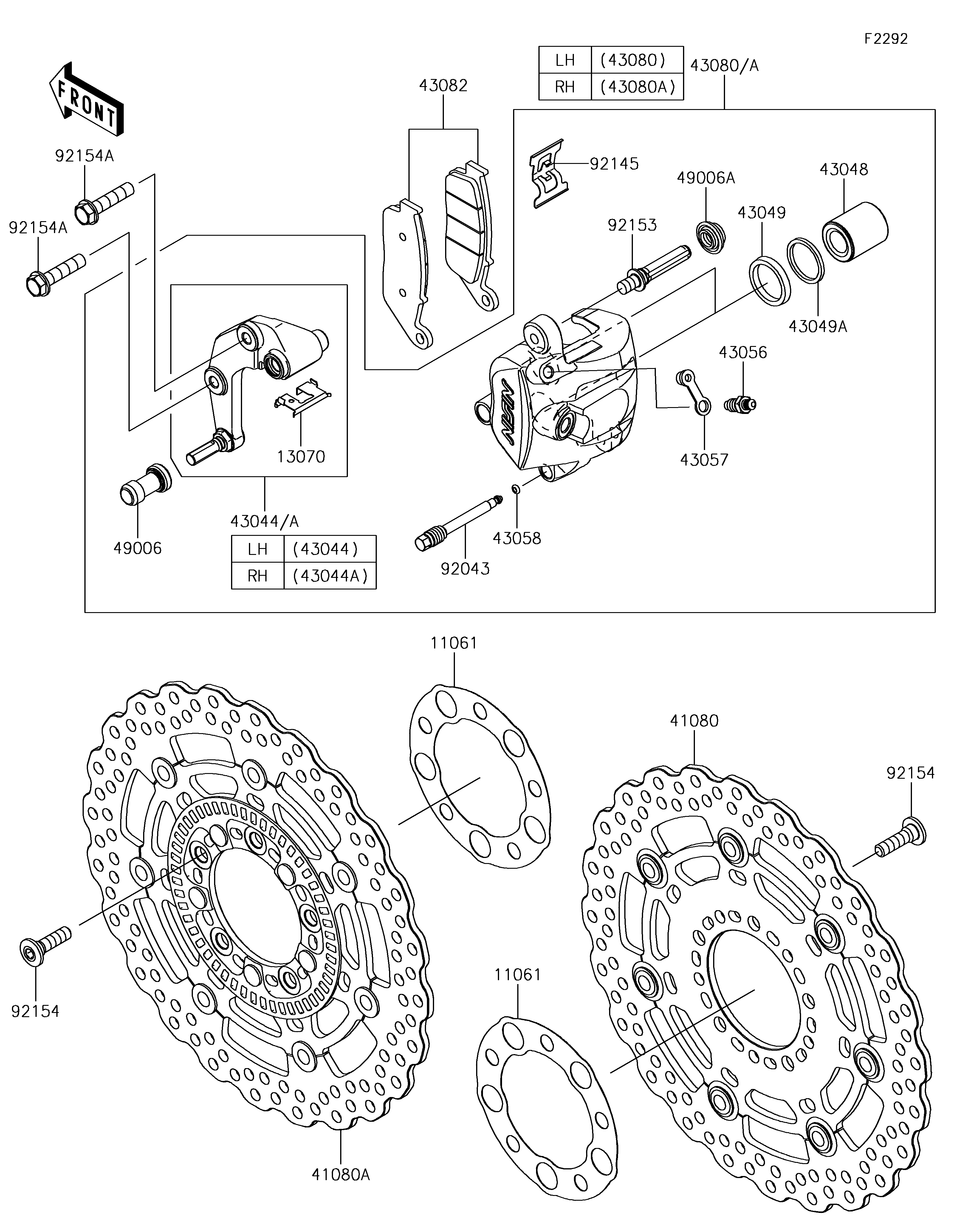

2017 Versys 650 ABS - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
13070
41080
41080A
43044
43044A
43048
43049
43049A
43056
43057
43058
43080
43080A
43082
49006
49006A
92043
92145
92153
92154
92154
92154A
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11061 11061-0451 2
GUIDE,BRAKE PAD 13070 13070-0077 2
DISC,FR,BLACK/SILVER 41080 41080-0620-5C 1
DISC,FR,ABS,BLACK/SILVER 41080A 41080-0621-5C 1
HOLDER-COMP-CALIPER,FR,LH 43044 43044-0078 1
HOLDER-COMP-CALIPER,FR,RH 43044A 43044-0079 1
PISTON-CALIPER 43048 43048-1068 4
PACKING,PISTON SEAL 43049 43049-1060 4
PACKING,PISTON SEAL 43049A 43049-1061 4
BREATHER 43056 43056-1055 2
CAP-BREATHER 43057 43057-1001 2
RING,STOPPER 43058 43058-1100 2
CALIPER-SUB-ASSY,FR,LH,BLACK 43080 43080-0147-DJ 1
CALIPER-SUB-ASSY,FR,RH,BLACK 43080A 43080-0148-DJ 1
PAD-ASSY-BRAKE 43082 43082-0150 2
BOOT,CALIPER 49006 49006-1088 2
BOOT,CALIPER 49006A 49006-1242 2
PIN,HANGER 92043 92043-0820 2
SPRING,PAD 92145 92145-0524 2
BOLT 92153 92153-1872 2
BOLT,SOCKET,8X30 92154 92154-0844 10
BOLT,FLANGED,8X35 92154A 92154-1646 4
