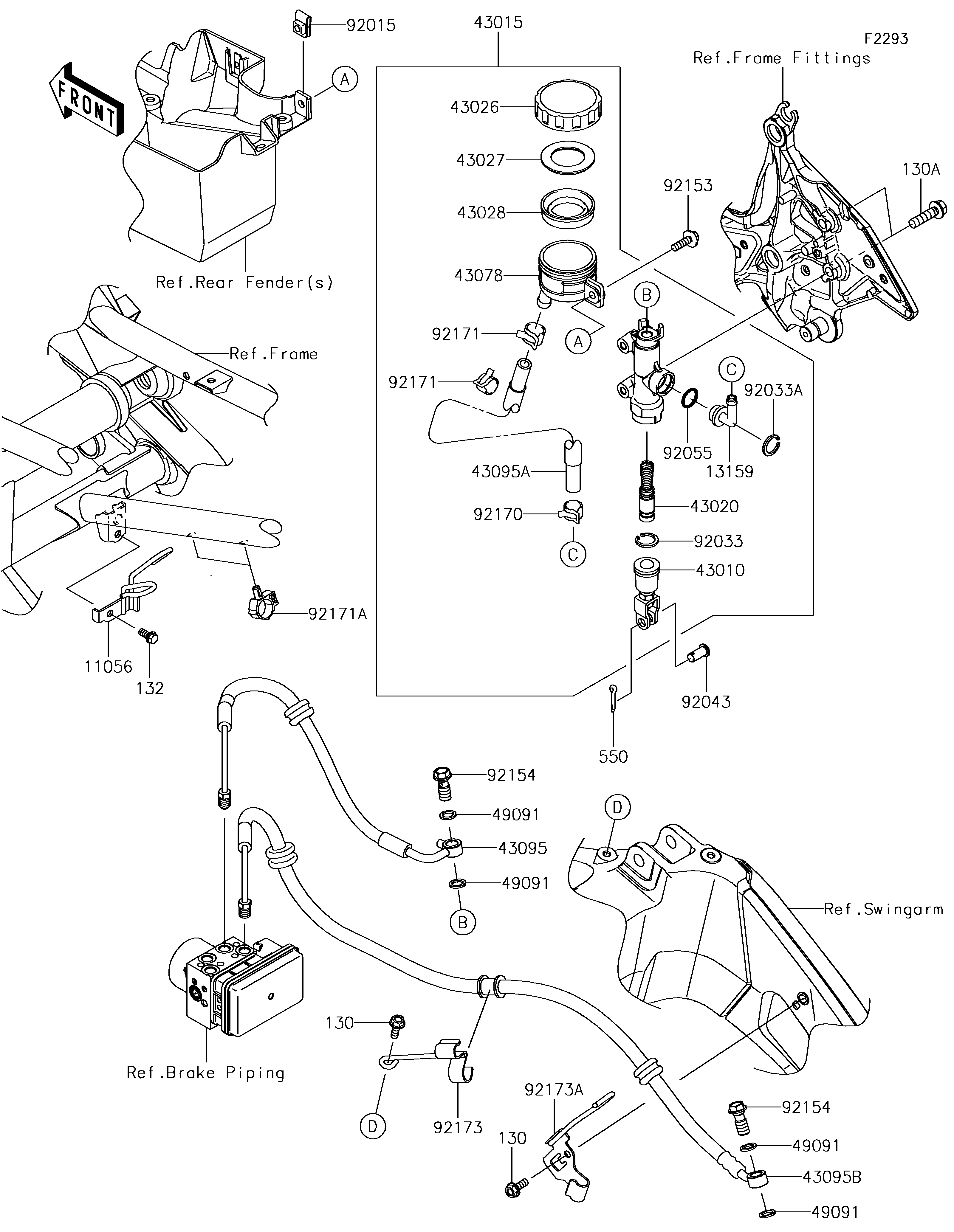

2017 Versys 650 ABS - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11056
130
130
130A
13159
132
43010
43015
43020
43026
43027
43028
43078
43095
43095A
43095B
49091
49091
49091
49091
550
92015
92033
92033A
92043
92055
92153
92154
92154
92170
92171
92171
92171A
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FRAME COMP 11056 11056-4072 1
BOLT-FLANGED,6X16 130 130BB0616 2
BOLT-FLANGED,8X30 130A 130CA0830 2
CONNECTOR 13159 13159-1056 1
BOLT-FLANGED-SMALL,6X12 132 132BB0612 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0602 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
RESERVOIR,RR MASTER CYLINDER 43078 43078-1082 1
HOSE-BRAKE,RR M/C-ABS UNIT 43095 43095-0823 1
HOSE-BRAKE,500MM 43095A 43095-0842 1
HOSE-BRAKE,ABS UNIT-RR CAL. 43095B 43095-0938 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
PIN-COTTER,2.0X15 550 550AA2015 1
NUT,6MM 92015 92015-1602 1
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN 92043 92043-0182 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,6X22 92153 92153-0725 1
BOLT,FLANGED,10X23 92154 92154-0732 2
CLAMP,HOSE 92170 92170-1091 1
CLAMP,HOSE 92171 92171-0463 2
CLAMP 92171A 92171-0955 2
CLAMP,SWING ARM,FR 92173 92173-1290 1
CLAMP,SWING ARM 92173A 92173-1291 1
