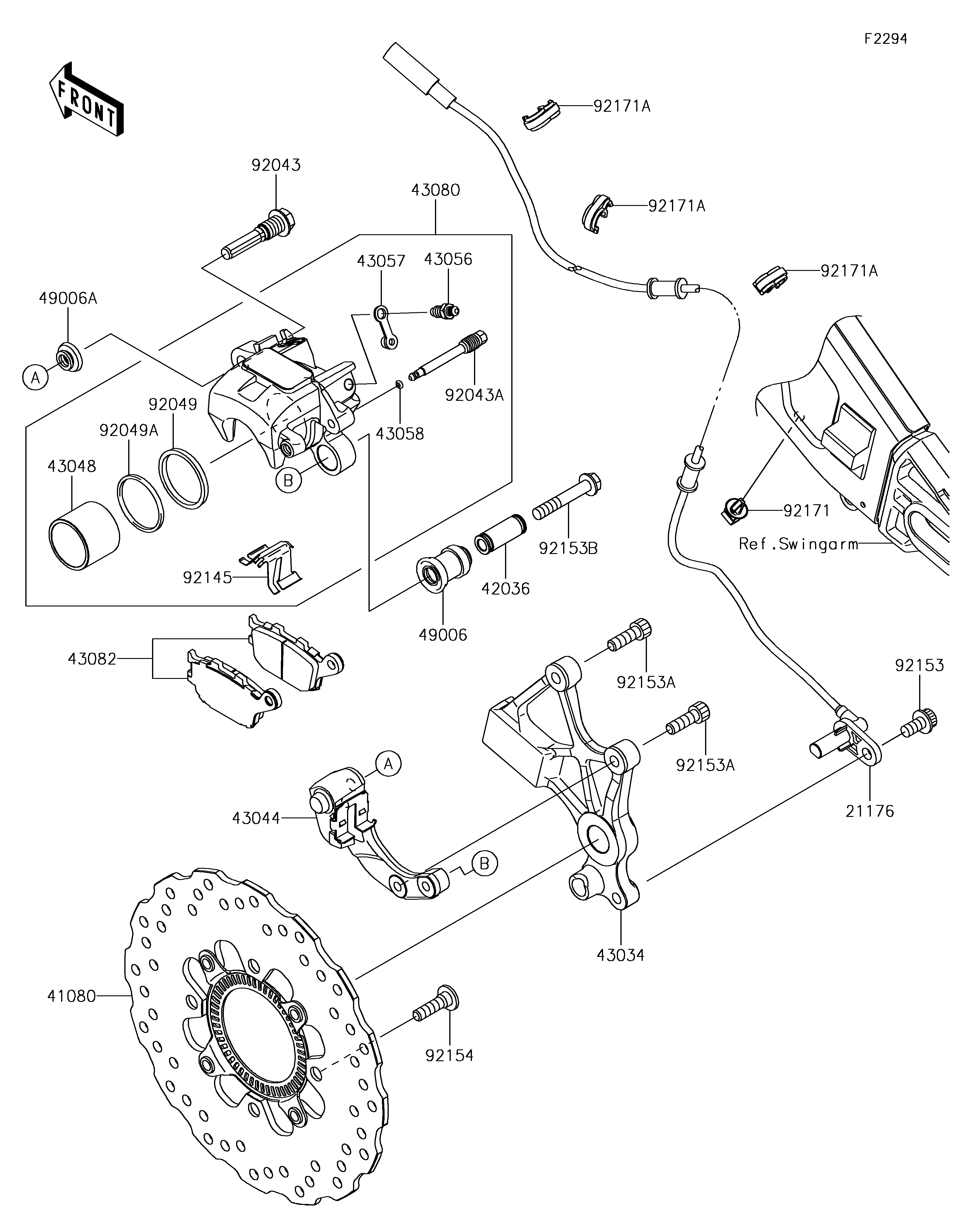

2017 Versys 650 ABS - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
21176
41080
42036
43034
43044
43048
43056
43057
43058
43080
43082
49006
49006A
92043
92043A
92049
92049A
92145
92153
92153A
92153A
92153B
92154
92171
92171A
92171A
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SENSOR,RR 21176 21176-0777 1
DISC,RR,ABS 41080 41080-0660 1
SLEEVE 42036 42036-0050 1
HOLDER-BRAKE,RR 43034 43034-0128 1
HOLDER-COMP-CALIPER 43044 43044-0080 1
PISTON-CALIPER 43048 43048-0008 1
BREATHER 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
RING,STOPPER 43058 43058-1100 1
CALIPER-SUB-ASSY,RR,BLACK 43080 43080-0149-DJ 1
PAD-ASSY-BRAKE 43082 43082-0155 1
BOOT 49006 49006-0058 1
BOOT,CALIPER 49006A 49006-1242 1
PIN 92043 92043-0137 1
PIN,HANGER 92043A 92043-0820 1
SEAL-OIL 92049 92049-1449 1
SEAL-OIL 92049A 92049-1450 1
SPRING,PAD 92145 92145-0493 1
BOLT,SOCKET,8X16 92153 92153-0327 1
BOLT,SOCKET,8X25 92153A 92153-1625 2
BOLT,FLANGED 92153B 92153-1826 1
BOLT,SOCKET,8X30 92154 92154-0844 4
CLAMP 92171 92171-0640 1
CLAMP,BRAKE HOSE 92171A 92171-1819 3
