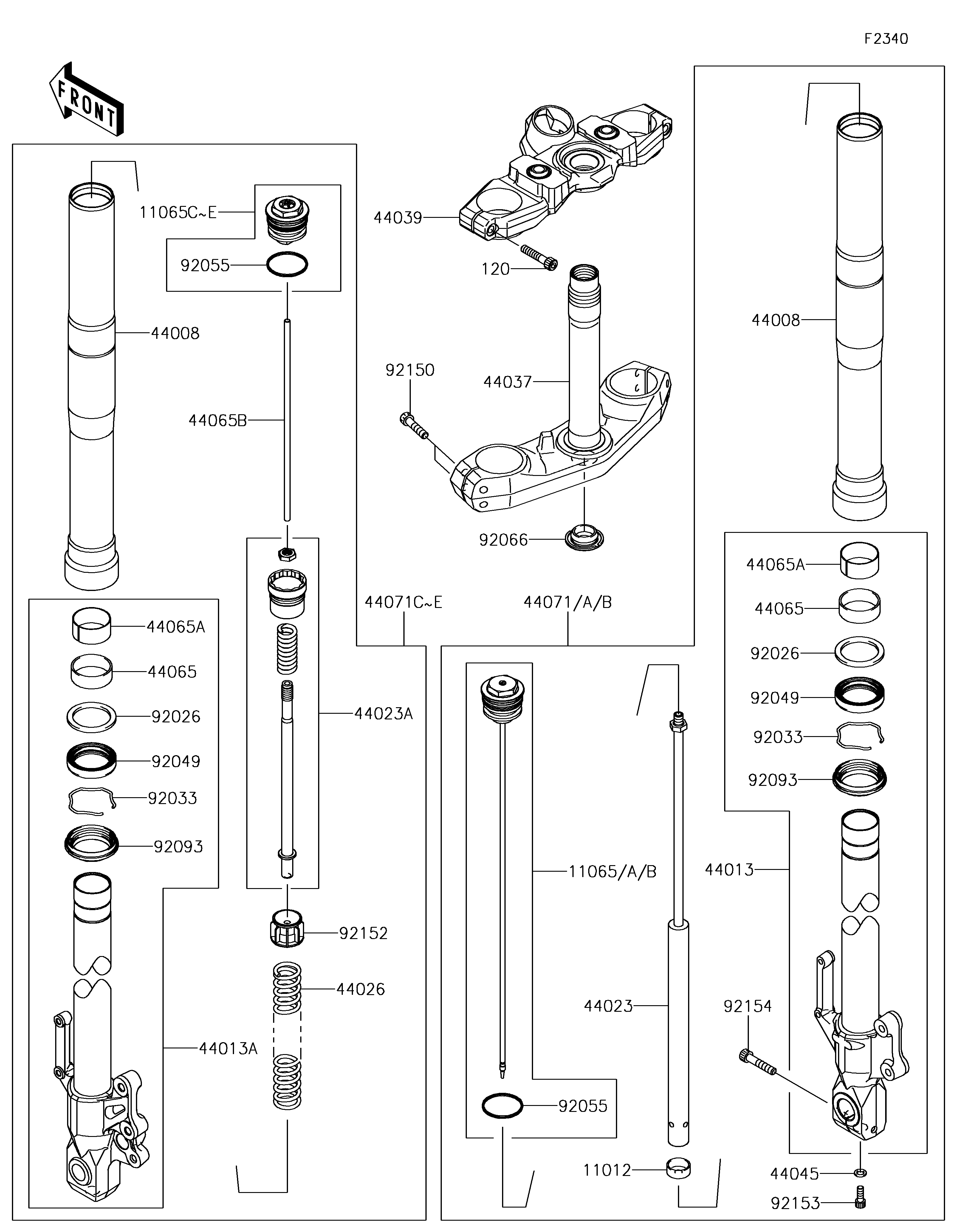

2017 Versys 650 ABS - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11065B
11065B
11065E
11065E
44008
44008
44008
44008
44013
44013
44013A
44013A
44023
44023
44023A
44023A
44026
44026
44037
44037
44039
44039
44045
44045
44065
44065
44065
44065
44065A
44065A
44065A
44065A
44065B
44065B
44071B
44071B
44071E
44071E
92026
92026
92026
92026
92033
92033
92033
92033
92049
92049
92049
92049
120
120
92055
92055
92055
92055
92066
92066
92093
92093
92093
92093
92150
92150
92152
92152
92153
92153
92154
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1761 1
CAP,G.B.GREEN 11065B 11065-0866-50Y 1 _________________________________________CA,US
CAP,G.B.GREEN 11065E 11065-0867-50Y 1 _________________________________________CA,US
PIPE-FORK OUTER,A.BLACK 44008 44008-0072-499 2
PIPE-FORK INNER,RH 44013 44013-0234 1
PIPE-FORK INNER,LH 44013A 44013-0235 1
CYLINDER-SET-FORK 44023 44023-0121 1
CYLINDER-SET-FORK 44023A 44023-0122 1
SPRING-FRONT FORK 44026 44026-0187 1
HOLDER-FORK UNDER 44037 44037-0149 1
HOLDER-FORK UPPER,F.S.BLACK 44039 44039-0159-18R 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 1
BUSHING-FRONT FORK,GUIDE 44065 44065-0030 2
BUSHING-FRONT FORK 44065A 44065-0036 2
BUSHING-FRONT FORK 44065B 44065-0063 1
DAMPER-ASSY,FORK,RH,BLACK 44071B 44071-0986-56K 1 _________________________________________CA,US
DAMPER-ASSY,FORK,LH,BLACK 44071E 44071-0987-56K 1 _________________________________________CA,US
SPACER,FORK OUTER 92026 92026-1276 2
RING-SNAP 92033 92033-1222 2
SEAL-OIL 92049 92049-0125 2
BOLT-SOCKET,8X40 120 120CA0840 2
RING-O 92055 92055-0131 2
PLUG 92066 92066-0032 1
SEAL,DUST 92093 92093-0035 2
BOLT,SOCKET 92150 92150-1511 4
COLLAR 92152 92152-1893 1
BOLT,SOCKET,8X22 92153 92153-0028 1
BOLT 92154 92154-1295 1
