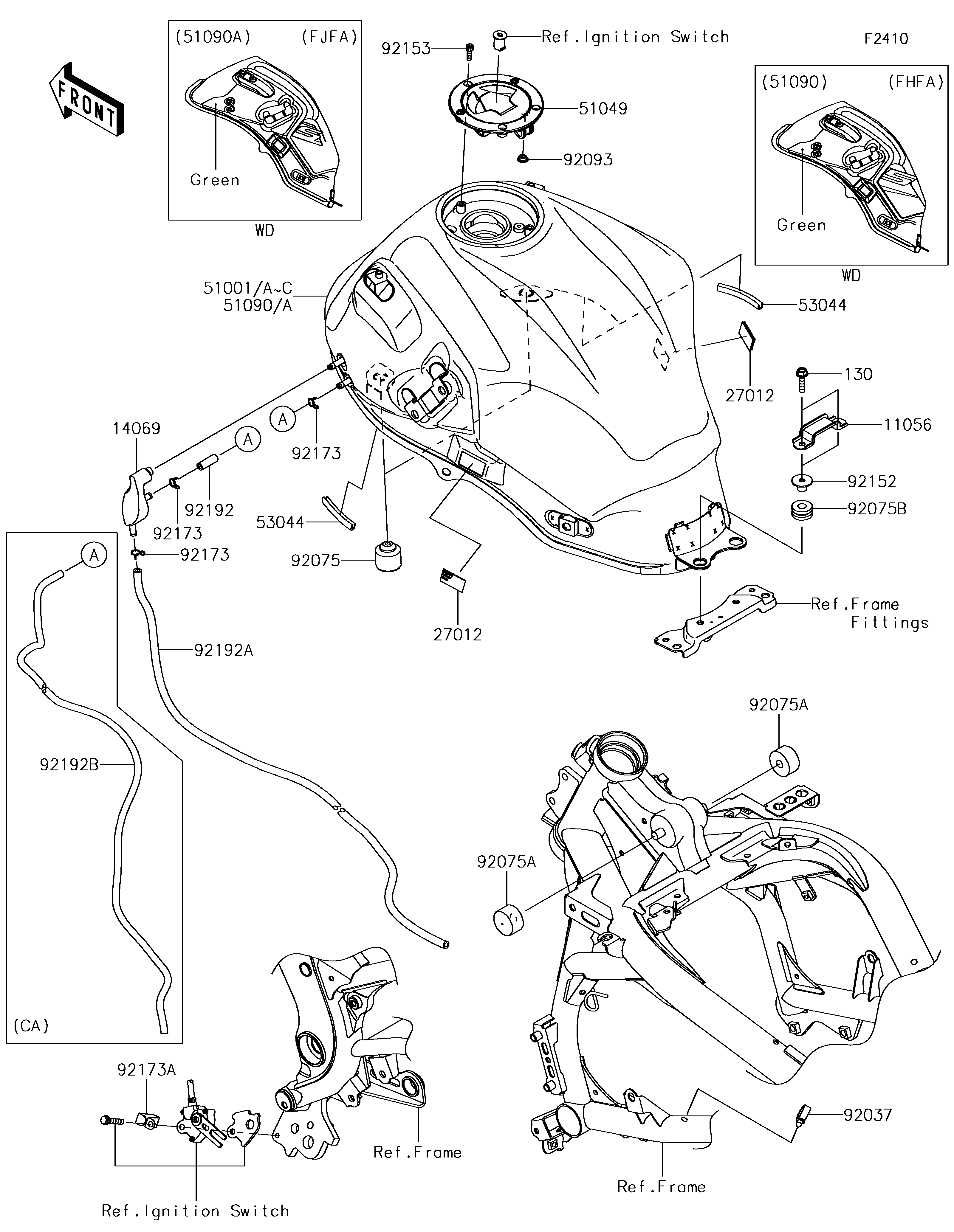

2017 Versys 650 ABS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11056
130
14069
27012
27012
51049
51090
53044
53044
92037
92075
92075A
92075A
92075B
92093
92152
92153
92173
92173
92173
92173A
92192
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT 11056 11056-0361 1
BOLT-FLANGED,6X25 130 130BA0625 2
BREATHER 14069 14069-0011 1 _________________________________________CN
HOOK,DUAL LOCK FASTENER,20X30 27012 27012-0784 2
CAP-TANK,FUEL 51049 51049-0714 1
TANK-COMP-FUEL,C.L.GREEN 51090 51090-5111-51P 1
TRIM,L=60 53044 53044-1249 2
CLAMP,HOSE 92037 92037-1827 1
DAMPER 92075 92075-1002 2
DAMPER,FUEL TANK 92075A 92075-125 2
DAMPER,10X24X12 92075B 92075-1690 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR,6.5X10X13.1 92152 92152-0910 2
BOLT,SOCKET,5X16 92153 92153-1616 3
CLAMP 92173 92173-0049 3 _________________________________________CA
CLAMP 92173A 92173-0833 1
TUBE,5X9X26 92192 92192-0910 1 _________________________________________CN
TUBE,5X9X900 92192A 92192-1237 1 _________________________________________CN
