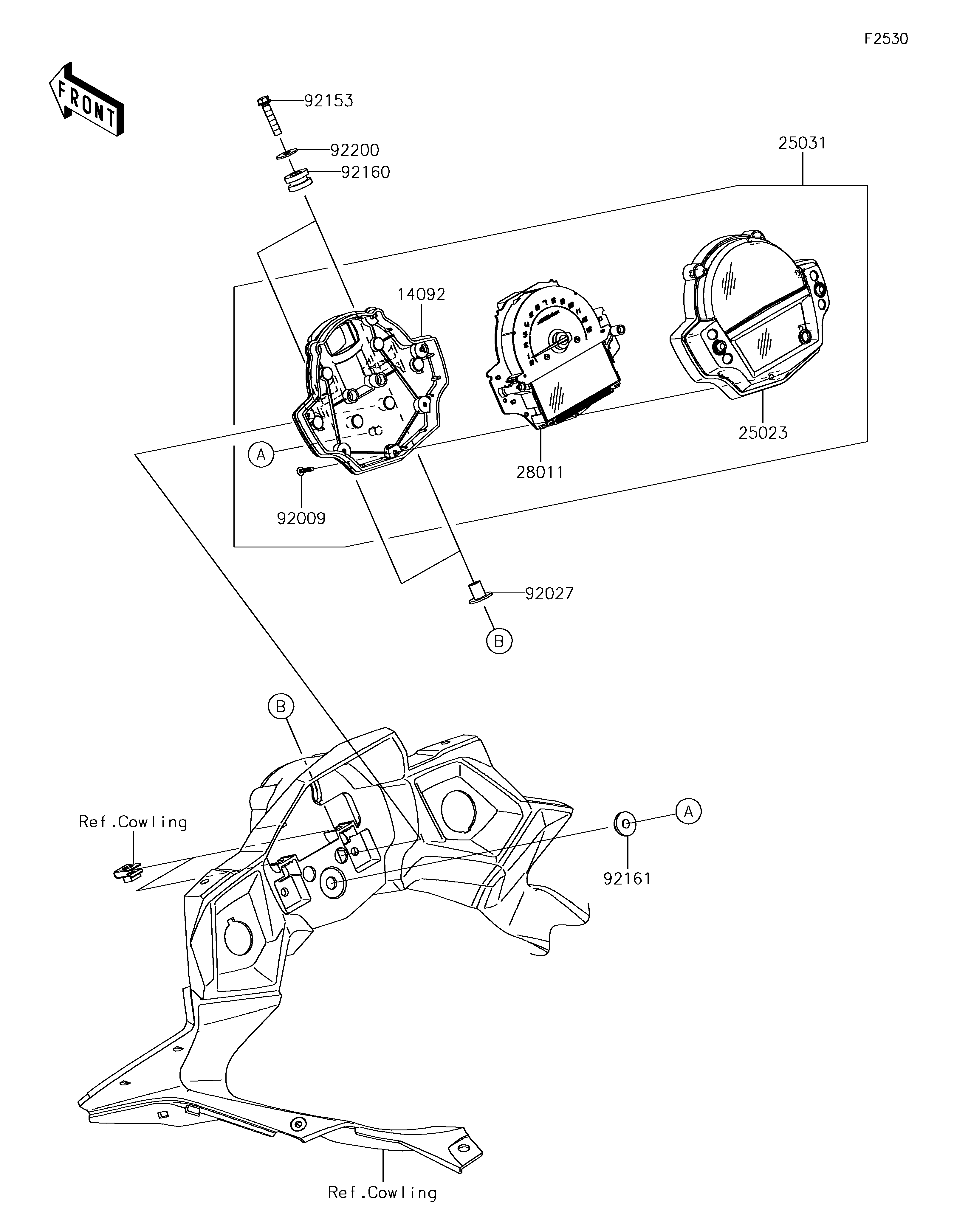

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,METER 14092 14092-0865 1
COVER-METER CASE 25023 25023-0076 1
METER-ASSY,COMBINATION,ABS 25031 25031-0705 1
METER,SP&LCD 28011 28011-0688 1
SCREW,TAPPING,3X16 92009 92009-1391 9
COLLAR,6.5X10X14.1 92027 92027-1183 2
BOLT,FLANGED-SMALL,6X28 92153 92153-1309 2
DAMPER,10X20X12 92160 92160-1167 2
DAMPER 92161 92161-1531 1
WASHER,6.2X18X1.2 92200 92200-1643 2
