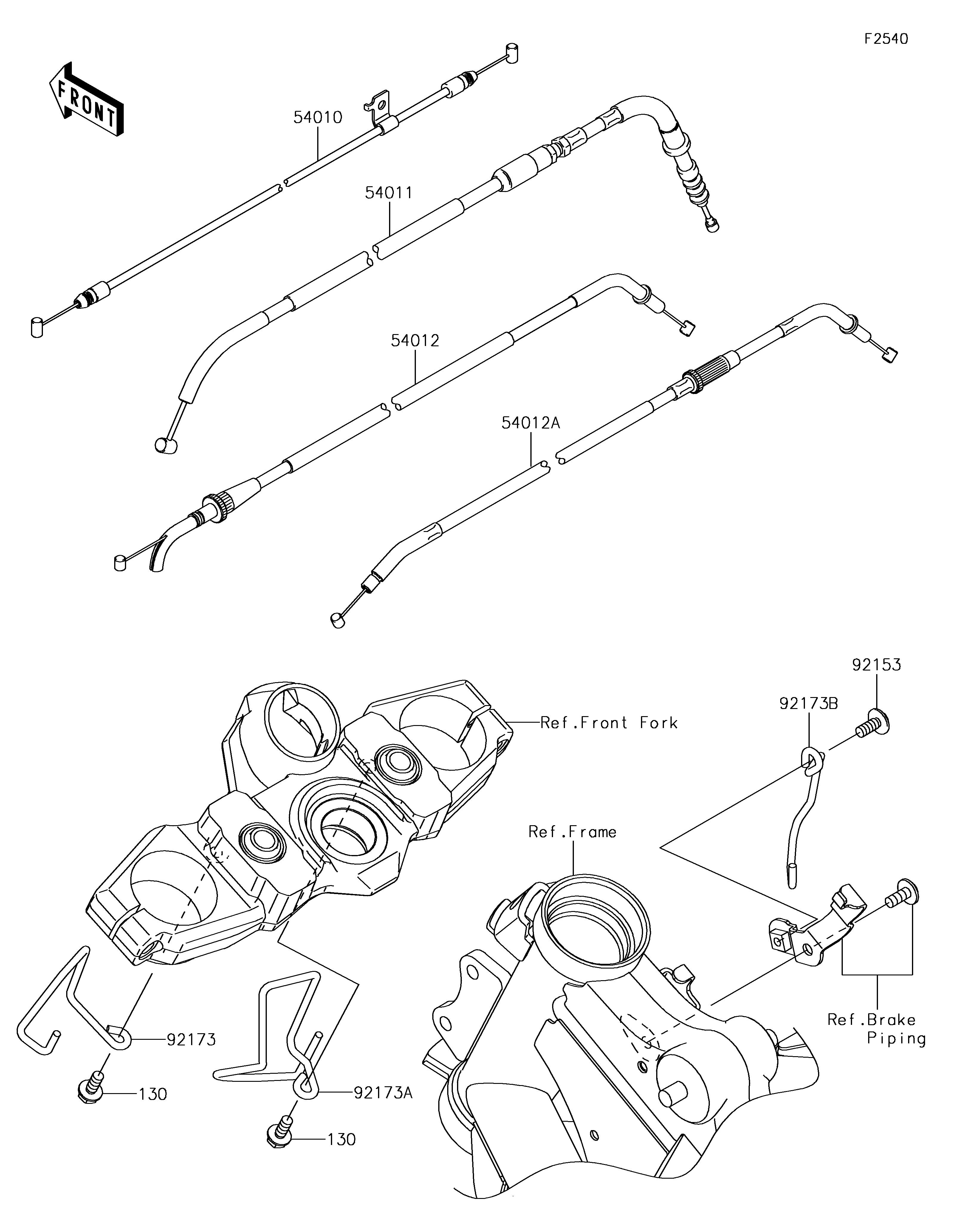

130
130
54010
54011
54012
54012A
92153
92173
92173A
92173B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BA0614 2
CABLE,SEAT LOCK 54010 54010-0602 1
CABLE-CLUTCH 54011 54011-0603 1
CABLE-THROTTLE,OPENING 54012 54012-0300 1
CABLE-THROTTLE,CLOSING 54012A 54012-0301 1
BOLT,SOCKET,6X14 92153 92153-1446 1
CLAMP,UPP BRACKET,LH 92173 92173-1292 1
CLAMP,UPP BRACKET,RH 92173A 92173-1293 1
CLAMP,HEAD PIPE 92173B 92173-1352 1
