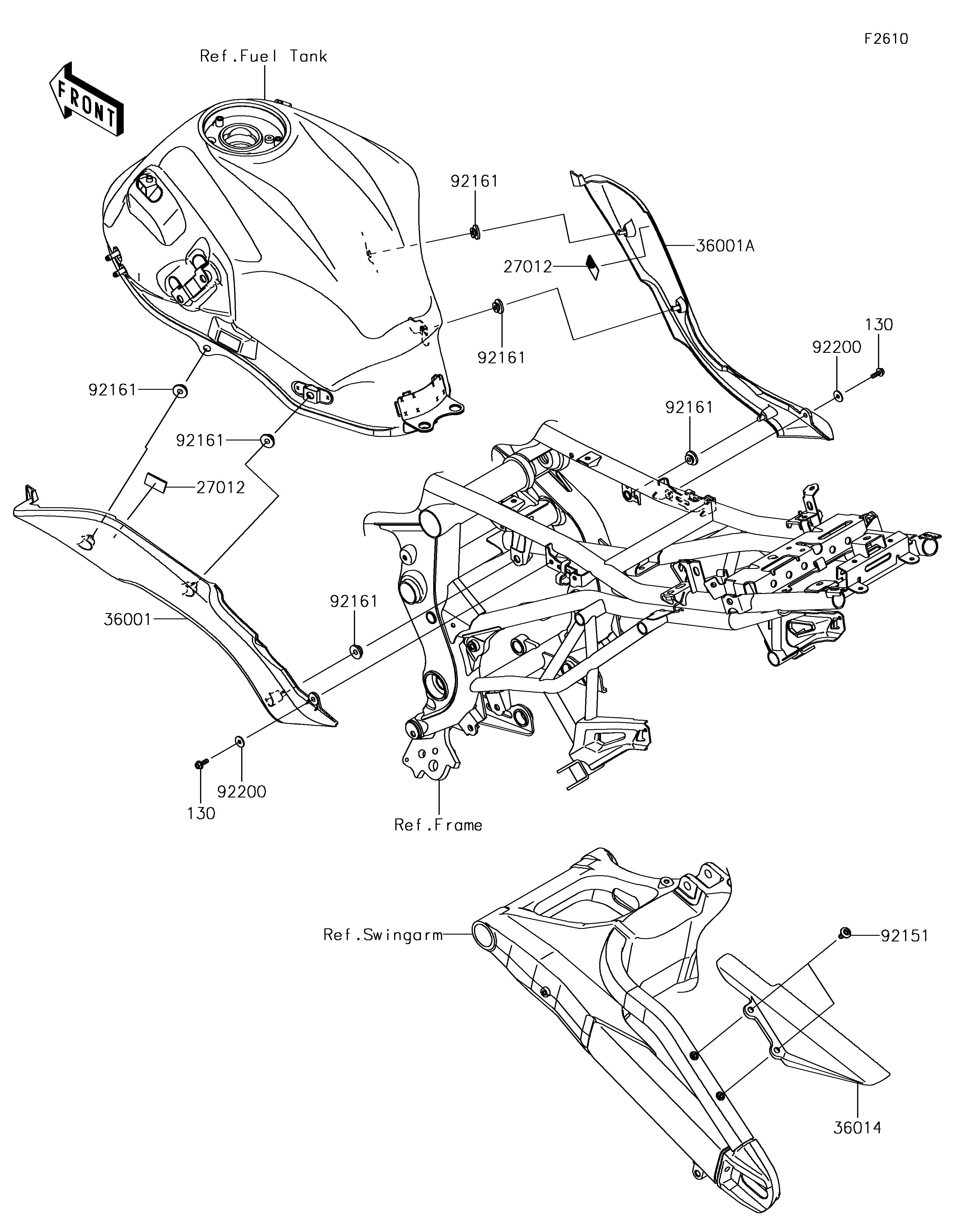

130
130
27012
27012
36001
36001A
36014
92151
92161
92161
92161
92161
92161
92161
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X14 130 130BA0514 2
HOOK 27012 27012-0751 2
COVER-SIDE,LH 36001 36001-0612 1
COVER-SIDE,RH 36001A 36001-0613 1
CASE-CHAIN,RR 36014 36014-0018 1
BOLT,SOCKET,6X14 92151 92151-1654 2
DAMPER 92161 92161-1531 6
WASHER,5.2X16X1.2 92200 92200-0583 2
