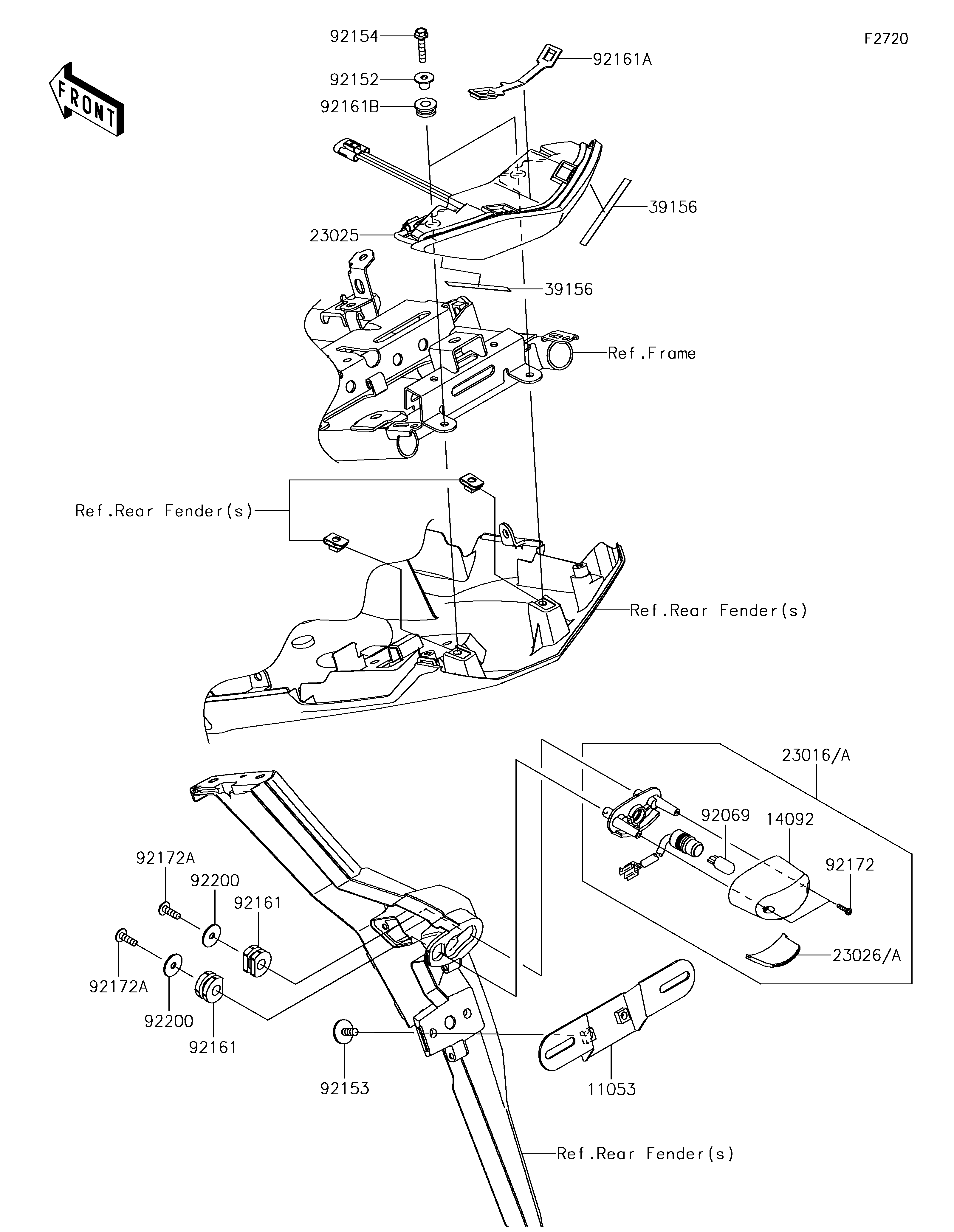

2017 Versys 650 ABS - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11053
14092
23016
23025
23026
39156
39156
92069
92152
92153
92154
92161
92161
92161A
92161B
92172
92172A
92172A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LICENSE 11053 11053-0400 1
COVER,LICENSE LAMP 14092 14092-0001 1
LAMP-ASSY,LICENCE 23016 23016-0583 1
LAMP-TAIL 23025 23025-0348 1
LENS,LICENCE LAMP 23026 23026-0023 1
PAD,6X70 39156 39156-1920 2
BULB,12V 5W 92069 92069-1016 1
COLLAR,5.6X8X9.3 92152 92152-1527 2
BOLT,6X16 92153 92153-1423 2
BOLT,FLANGED,5X25 92154 92154-0846 2
DAMPER 92161 92161-0776 2
DAMPER,TAIL LAMP 92161A 92161-0808 1
DAMPER,8X18X8.1 92161B 92161-1369 2
SCREW,TAPPING,2.9X13 92172 92172-0343 2
SCREW,TAPPING,5X16 92172A 92172-0427 2
WASHER,5.5X20X1.2 92200 92200-0284 2
