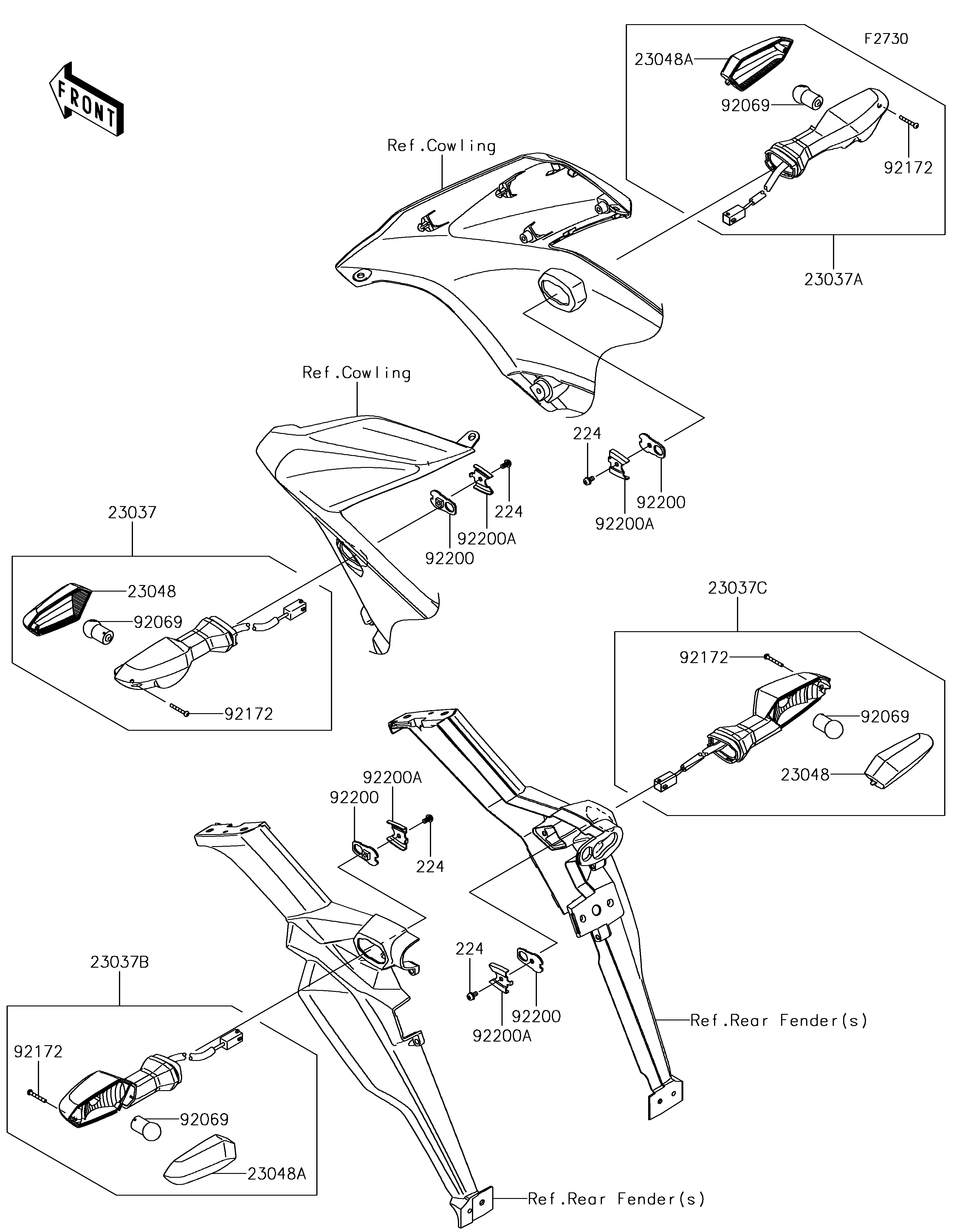

Parts Diagrams |
224
224
224
224
23037
23037A
23037B
23037C
23048
23048
23048A
23048A
92069
92069
92069
92069
92172
92172
92172
92172
92200
92200
92200
92200
92200A
92200A
92200A
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-WP-CROS,4X8 | 224 | 224AB0408 | 4 | ||
LAMP-ASSY-SIGNAL,FR,LH | 23037 | 23037-0295 | 1 | ||
LAMP-ASSY-SIGNAL,FR,RH | 23037A | 23037-0296 | 1 | ||
LAMP-ASSY-SIGNAL,RR,LH | 23037B | 23037-0302 | 1 | ||
LAMP-ASSY-SIGNAL,RR,RH | 23037C | 23037-0303 | 1 | ||
LENS-SIGNAL LAMP | 23048 | 23048-0025 | 2 | ||
LENS-SIGNAL LAMP | 23048A | 23048-0026 | 2 | ||
BULB,12V 10W | 92069 | 92069-0076 | 4 | ||
SCREW,2.9X22 | 92172 | 92172-0395 | 4 | ||
WASHER,NUT 4MM | 92200 | 92200-0854 | 4 | ||
WASHER | 92200A | 92200-0855 | 4 |
SCREW-PAN-WP-CROS,4X8 | |
REF # | 224 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
LAMP-ASSY-SIGNAL,FR,LH | |
REF # | 23037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-ASSY-SIGNAL,FR,RH | |
REF # | 23037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-ASSY-SIGNAL,RR,LH | |
REF # | 23037B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-ASSY-SIGNAL,RR,RH | |
REF # | 23037C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS-SIGNAL LAMP | |
REF # | 23048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LENS-SIGNAL LAMP | |
REF # | 23048A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 10W | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,2.9X22 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,NUT 4MM | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
