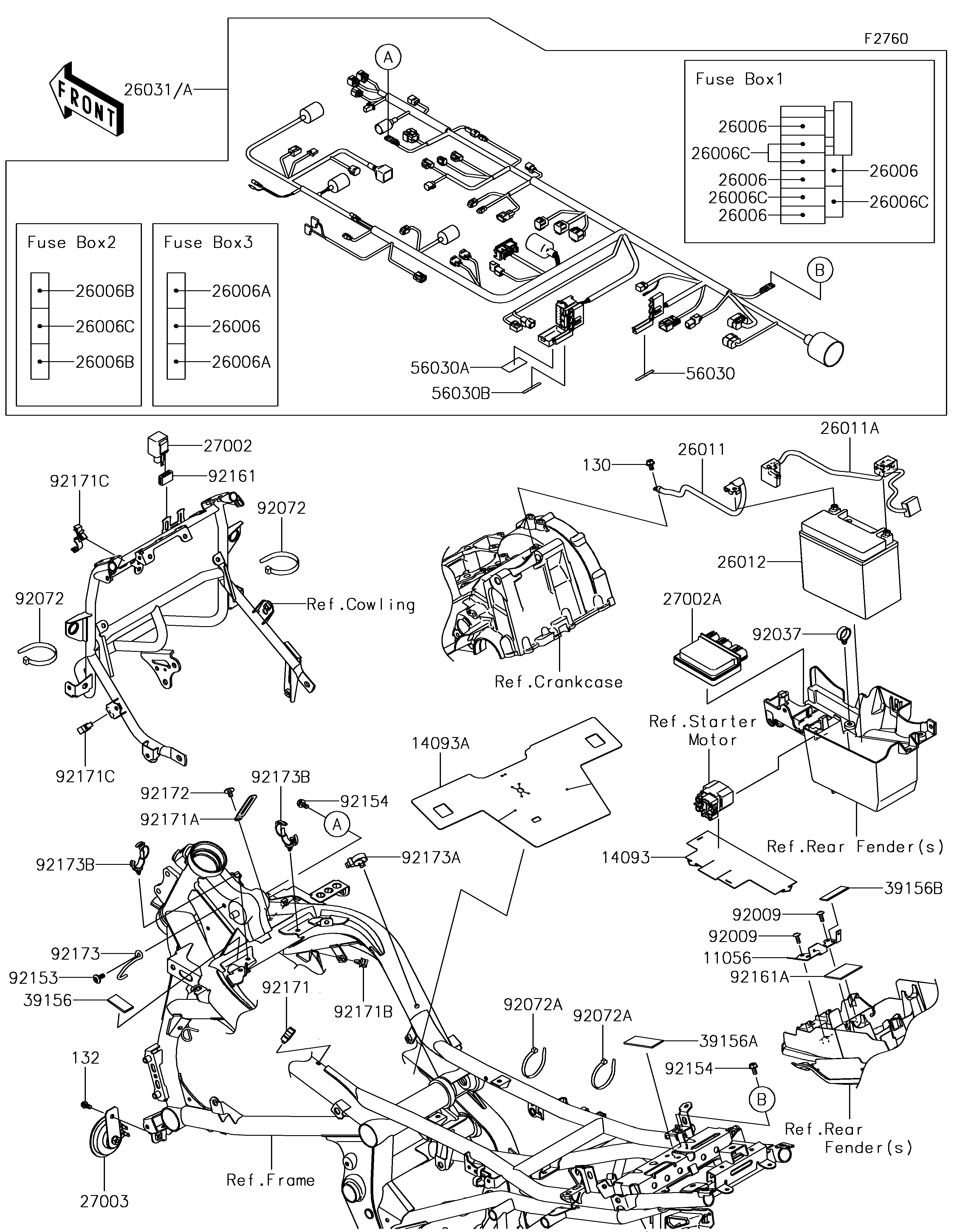

2017 Versys 650 ABS - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
14093
14093
14093A
14093A
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26006C
26011
26011
26011A
26011A
26012
26012
26031
26031
27002
27002
27002A
27002A
27003
27003
39156
39156
39156A
39156A
39156B
39156B
56030
56030
56030A
56030A
56030B
56030B
92009
92009
92009
92009
92037
92037
92072
92072
92072
92072
92072A
92072A
92072A
92072A
92153
92153
92154
92154
92154
92154
92161
92161
92161A
92161A
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
92171C
92171C
92172
92172
92173
92173
92173A
92173A
92173B
92173B
92173B
92173B
130
130
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HARNESS 11056 11056-4346 1
COVER,MG. SWITCH 14093 14093-0251 1
COVER,HEAT SHIELD 14093A 14093-0309 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 5
FUSE,MINI BLADE,25A,NATURAL 26006A 26006-0020 2
FUSE,MINI BLADE,5A,TAN 26006B 26006-1077 2
FUSE,MINI BLADE,10A,RED 26006C 26006-1078 5
WIRE-LEAD,BATTERY(-) 26011 26011-0301 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0876 1
BATTERY,FTX12-BS,12V 10AH 26012 26012-0606 1
HARNESS,MAIN 26031 26031-2161 1 _________________________________________CN
RELAY-ASSY,SIGNAL LAMP 27002 27002-0006 1
RELAY-ASSY,BOX 27002A 27002-0025 1
HORN 27003 27003-0056 1
PAD,20X40X3 39156 39156-0831 1
PAD,70X27X2 39156A 39156-1908 1
PAD,50X18X2 39156B 39156-1909 1
LABEL,FUSE BOX3 56030 56030-0400 1
LABEL,FUSE BOX1 56030A 56030-0705 1
LABEL,FUSE BOX2 56030B 56030-0879 1
SCREW,TAPPING,5X14 92009 92009-1197 2
CLAMP,HOSE 92037 92037-1827 1
BAND,L=202 92072 92072-1195 2
BAND,L=365 92072A 92072-1197 2
BOLT,SOCKET,6X14 92153 92153-1446 1
BOLT,FLANGED,6X12 92154 92154-1050 2
DAMPER,15X25X8.5 92161 92161-1443 1
DAMPER,40X50X2 92161A 92161-1757 1
CLAMP,BRAKE HOSE 92171 92171-0316 1
CLAMP 92171A 92171-0462 1
CLAMP 92171B 92171-0640 1
CLAMP 92171C 92171-0782 2
SCREW,6X10 92172 92172-0005 1
CLAMP,HEAD GUSSET,LH 92173 92173-1329 1
CLAMP,CABLE STRAP 92173A 92173-1336 1
CLAMP,20MM DIA. 92173B 92173-1394 2
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED-SMALL,6X12 132 132BB0612 1
