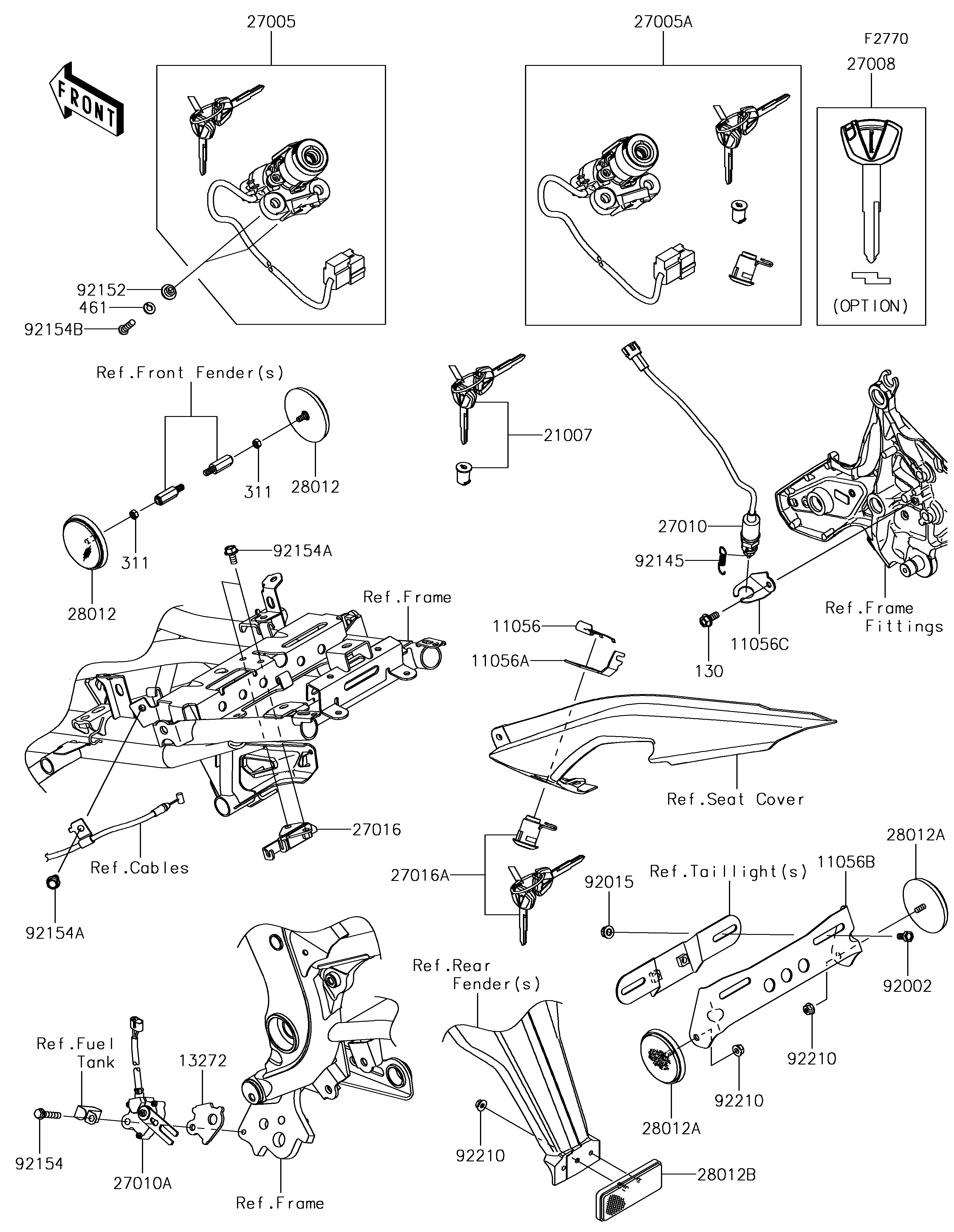

2017 Versys 650 ABS - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11056B
11056C
130
13272
21007
27005
27005A
27008
27010
27010A
27016
27016A
28012
28012
28012A
28012A
28012B
311
311
461
92002
92015
92145
92152
92154
92154A
92154A
92154B
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CLASP 11056 11056-0238 1
BRACKET,SEAT LOCK 11056A 11056-2119 1
BRACKET,REFLECTOR 11056B 11056-2773 1
BRACKET,RR BRAKE SW. 11056C 11056-3974 1
BOLT-FLANGED,6X14 130 130BB0614 1
PLATE 13272 13272-1330 1
ROTOR,LOCK,TANK CAP 21007 21007-5077 1
SWITCH-ASSY-IGNITION 27005 27005-0592 1
SWITCH-ASSY-IGNITION 27005A 27005-5153 1
KEY-LOCK,BLANK 27008 27008-0596 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-0095 1
SWITCH,SIDE STAND 27010A 27010-0722 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0008 1
LOCK-ASSY,SEAT 27016A 27016-5386 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
NUT-HEX,5MM 311 311AB0500 2
WASHER-SPRING,6MM 461 461DA0600 2
BOLT,6X12 92002 92002-1132 2
NUT,FLANGED,6MM 92015 92015-1367 2
SPRING,REAR BRAKE SWITCH 92145 92145-0724 1
COLLAR,6.15X10.15X6 92152 92152-1535 2
BOLT,FLANGED,6X30 92154 92154-1040 1
BOLT,FLANGED,6X12 92154A 92154-1050 3
BOLT,TORX,6X22 92154B 92154-1858 2
NUT,FLANGED,5MM 92210 92210-0007 3
