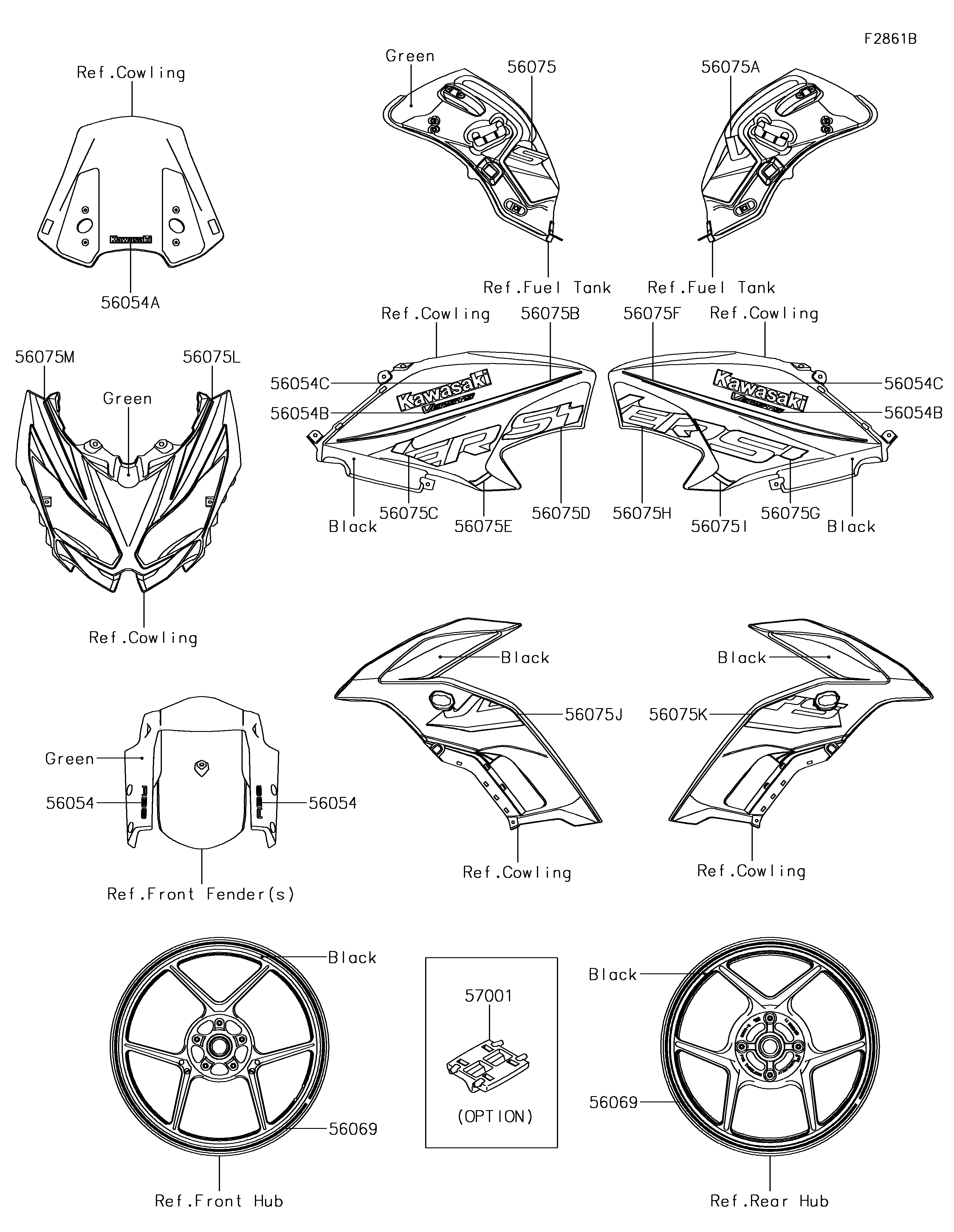

2017 Versys 650 ABS - Decals(Green)(FHFA)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054
56054A
56054B
56054B
56054C
56054C
56069
56069
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
56075H
56075I
56075J
56075K
56075L
56075M
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,ABS 56054 56054-1412 2
MARK,WINDSHIELD,KAWASAKI 56054A 56054-2177 1
MARK,TANK COVER,VERSYS 56054B 56054-2183 2
MARK,TANK COVER,KAWASAKI 56054C 56054-2224 2
PATTERN,WHEEL,GREEN,4X1353 56069 56069-7822 4
PATTERN,FUEL TANK,LH 56075 56075-2528 1
PATTERN,FUEL TANK,RH 56075A 56075-2529 1
PATTERN,TANK SIDE COWL.,LH,UPP 56075B 56075-2530 1
PATTERN,TANK SIDE COWL.,LH,FR 56075C 56075-2531 1
PATTERN,TANK SIDE COWL.,LH,RR 56075D 56075-2532 1
PATTERN,TANK SIDE COWL.,LH,LWR 56075E 56075-2533 1
PATTERN,TANK SIDE COWL.,RH,UPP 56075F 56075-2534 1
PATTERN,TANK SIDE COWL.,RH,FR 56075G 56075-2535 1
PATTERN,TANK SIDE COWL.,RH,RR 56075H 56075-2536 1
PATTERN,TANK SIDE COWL.,RH,LWR 56075I 56075-2537 1
PATTERN,SIDE COWL.,LH 56075J 56075-2538 1
PATTERN,SIDE COWL.,RH 56075K 56075-2539 1
PATTERN,UPP COWL.,LH 56075L 56075-2540 1
PATTERN,UPP COWL.,RH 56075M 56075-2541 1
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
