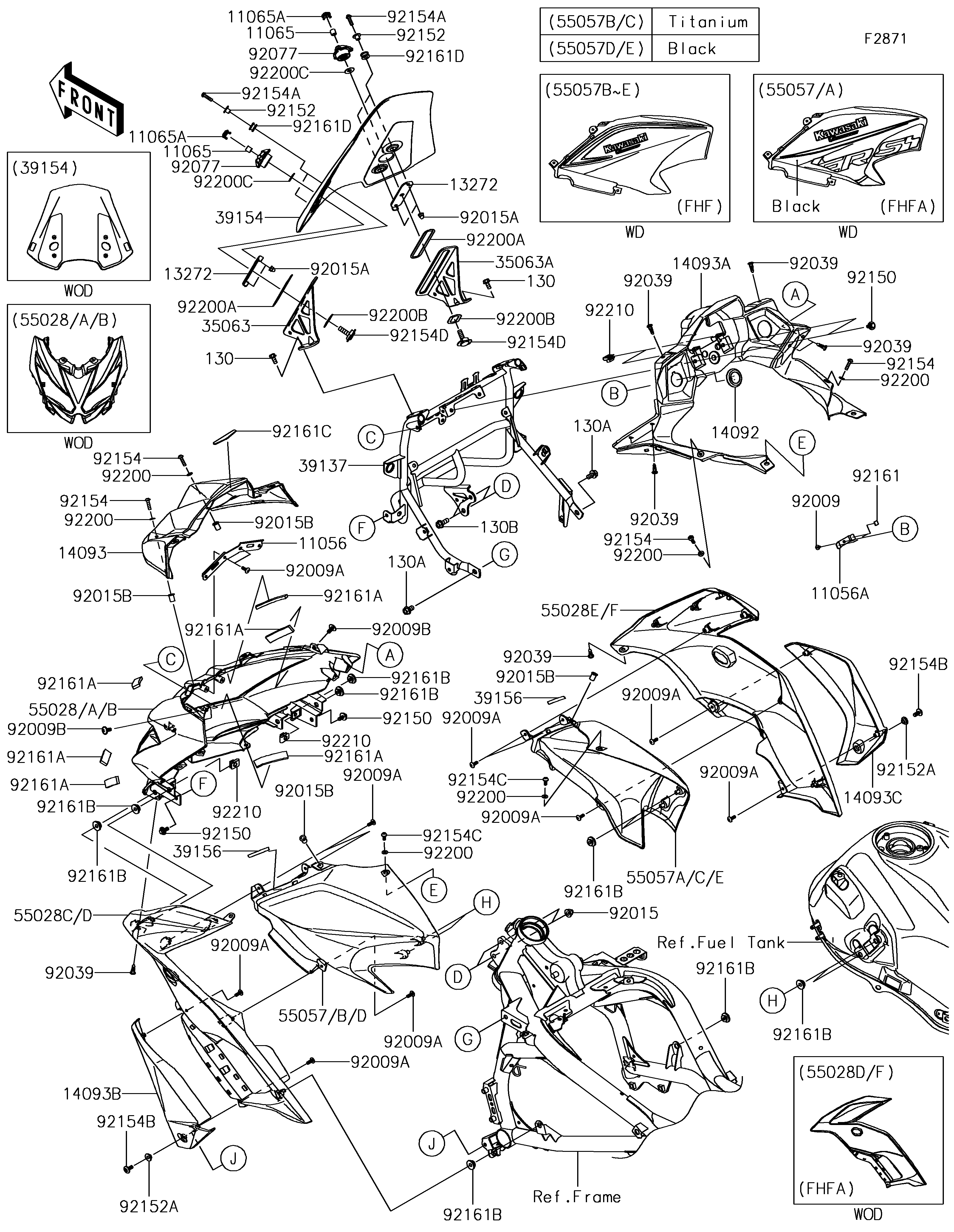

2017 Versys 650 ABS - Cowling(FHF/FHFA)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056A
11056A
11065
11065
11065
11065
11065A
11065A
11065A
11065A
13272
13272
13272
13272
14092
14092
14093
14093
14093A
14093A
14093B
14093B
14093C
14093C
35063
35063
35063A
35063A
39137
39137
39154
39154
39156
39156
39156
39156
55028
55028
55028D
55028D
55028F
55028F
55057
55057
55057A
55057A
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
130
130
130
130
130A
130A
130A
130A
130B
130B
92077
92077
92077
92077
92150
92150
92150
92150
92150
92150
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92154C
92154C
92154D
92154D
92154D
92154D
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161C
92161C
92161D
92161D
92161D
92161D
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200B
92200B
92200B
92200B
92200C
92200C
92200C
92200C
92210
92210
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP 11056 11056-3975 1
BRACKET,CAP COVER 11056A 11056-4313 2
CAP 11065 11065-0156 2
CAP,KNOB 11065A 11065-0734 2
PLATE,WINDSHIELD 13272 13272-2333 2
COVER,DC SOCKET 14092 14092-0214 2
COVER,METER,UPP 14093 14093-0093 1
COVER,METER 14093A 14093-0094 1
COVER,RADIATOR,LH 14093B 14093-0095 1
COVER,RADIATOR RH 14093C 14093-0096 1
STAY,WINDSHIELD,LH 35063 35063-1321 1
STAY,WINDSHIELD,RH 35063A 35063-1322 1
STAY-COMP,UPP COWL. 39137 39137-0669 1
WINDSHIELD 39154 39154-0361 1
PAD,6X70 39156 39156-1920 2
COWLING,UPP,C.L.GREEN 55028 55028-0514-51P 1
COWLING,SIDE,LH,M.S.BLACK 55028D 55028-0515-660 1 _________________________________________CA
COWLING,SIDE,RH,M.S.BLACK 55028F 55028-0516-660 1 _________________________________________CA
COWLING,TANK SIDE,LH,M.S.BLACK 55057 55057-5352-660 1
COWLING,TANK SIDE,RH,M.S.BLACK 55057A 55057-5353-660 1
SCREW,TAPPING,4X8 92009 92009-1155 2
SCREW,TAPPING,5X14 92009A 92009-1197 12
SCREW,6X14 92009B 92009-1662 2
NUT,CAP,8MM 92015 92015-1151 2
NUT,LOCK,FLANGE CAP,5MM 92015A 92015-1263 4
NUT,WELL,5MM 92015B 92015-1757 4
RIVET 92039 92039-0709 8
BOLT-FLANGED,6X14 130 130BA0614 4
BOLT-FLANGED,8X14 130A 130BA0814 2
BOLT-FLANGED,8X20 130B 130BA0820 2
KNOB,ADJUSTERS 92077 92077-0034 2
BOLT,FLANGED,6X14 92150 92150-1689 4
COLLAR 92152 92152-0092 4
COLLAR,6.5X10X5.6 92152A 92152-0445 2
BOLT,SOCKET,5X20 92154 92154-0216 4
BOLT,SOCKET,5X20 92154A 92154-0919 4
BOLT,SOCKET,6X14 92154B 92154-0932 2
BOLT,SOCKET,5X12 92154C 92154-1421 2
BOLT,PLATE,8X30 92154D 92154-1438 2
DAMPER 92161 92161-0816 4
DAMPER,15X70X5 92161A 92161-1380 6
DAMPER 92161B 92161-1531 10
DAMPER,10X65X2 92161C 92161-1758 1
DAMPER 92161D 92161-1938 4
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 6
WASHER 92200A 92200-0801 2
WASHER,23.5X32X1 92200B 92200-0802 2
WASHER,8.2X20X1 92200C 92200-1751 2
NUT,CLIP,6MM 92210 92210-0933 4
