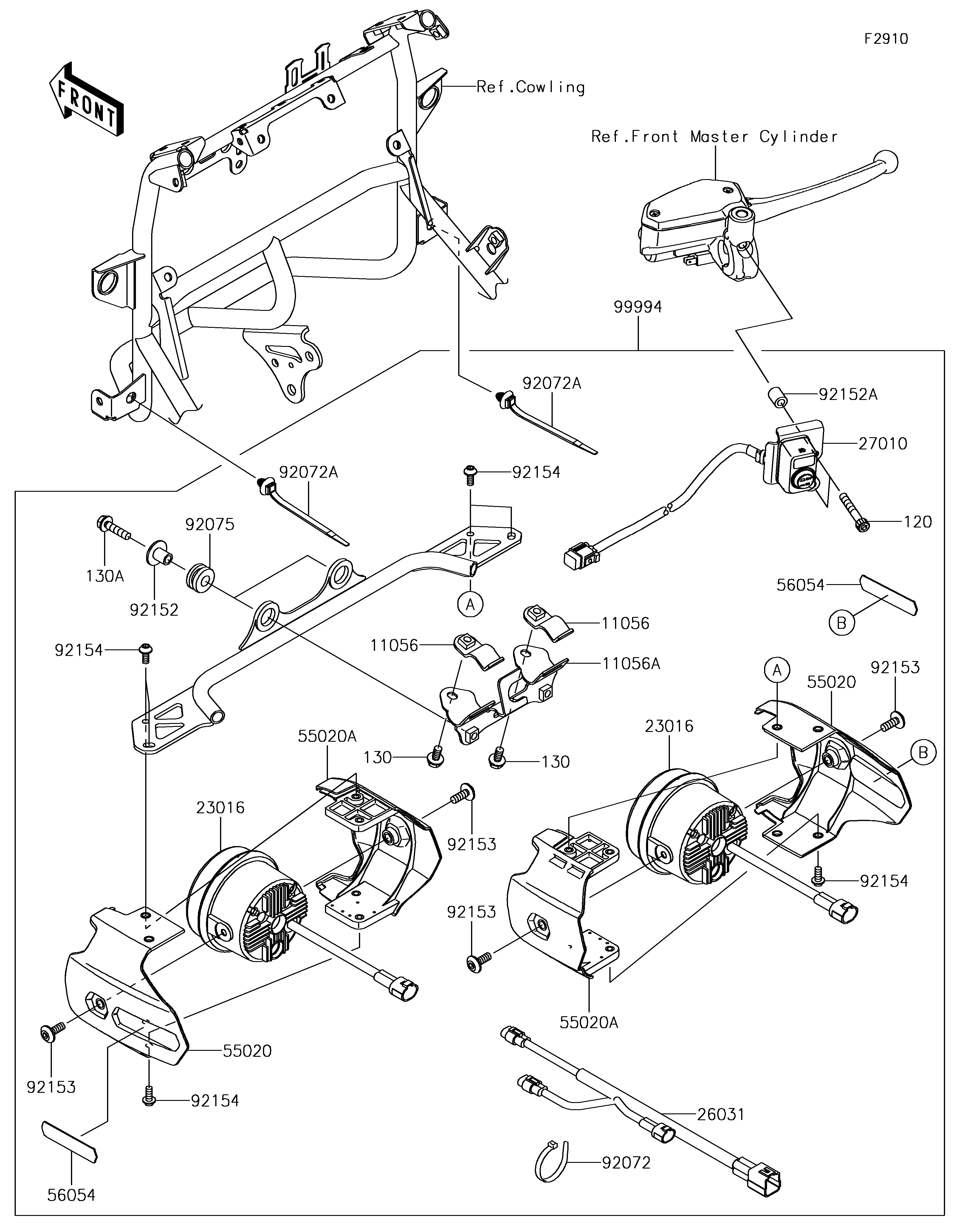

2017 Versys 650 ABS - Accessory(Fog Lamp)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056A
120
130
130
130A
23016
23016
26031
27010
55020
55020
55020A
55020A
56054
56054
92072
92072A
92072A
92075
92152
92152A
92153
92153
92153
92153
92154
92154
92154
92154
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,UPP 11056 11056-3978 2
BRACKET,LWR 11056A 11056-3979 1
BOLT-SOCKET,6X40 120 120CB0640 2
BOLT-FLANGED,6X12 130 130BB0612 2
BOLT-FLANGED,6X25 130A 130BB0625 2
LAMP-ASSY,FOG LAMP,LED 23016 23016-0571 2
HARNESS 26031 26031-1737 1
SWITCH,FOG LAMP 27010 27010-0761 1
GUARD,OUTER 55020 55020-1825 2
GUARD,INNER 55020A 55020-1826 2
MARK,FOG LAMP,KAWASAKI 56054 56054-1695 2
BAND,L=202 92072 92072-1195 7
BAND,OS170-FT7(BLACK) 92072A 92072-1414 2
DAMPER,CASE 92075 92075-222 2
COLLAR,6.8X10X12.1 92152 92152-1407 2
COLLAR,6.3X11X14 92152A 92152-1965 2
BOLT,SOCKET,6X16 92153 92153-1526 4
BOLT,SOCKET,5X12 92154 92154-0917 8
KIT-ACCESSORY,FOG LAMP 99994 99994-0470 1
