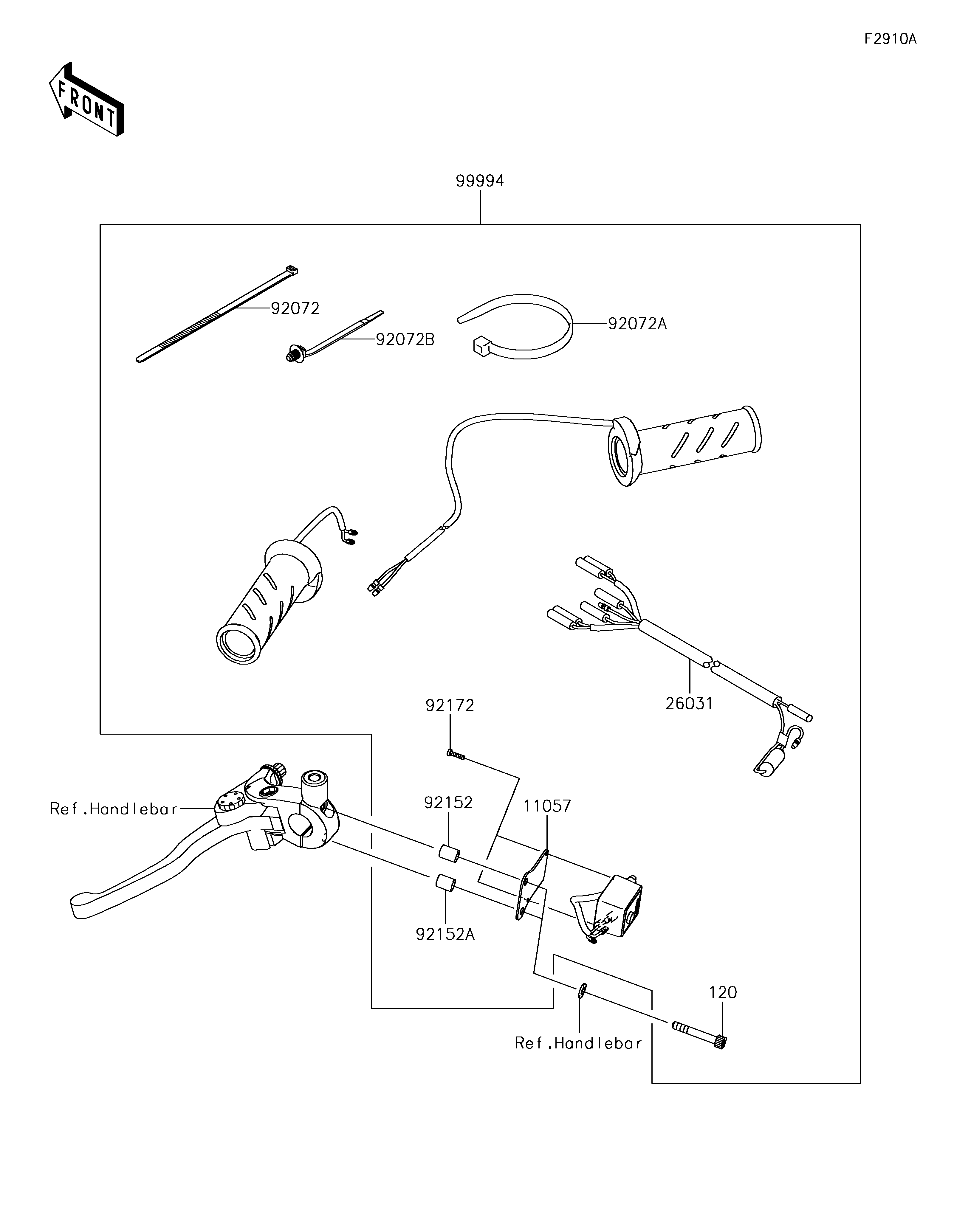

11057
120
26031
92072
92072A
92072B
92152
92152A
92172
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-0654 1
BOLT-SOCKET,6X40 120 120CB0640 2
HARNESS,GRIP HEATER 26031 26031-0971 1
BAND,L=202 92072 92072-1195 1
BAND,L=365 92072A 92072-1197 1
BAND,OS170-FT7(BLACK) 92072B 92072-1414 2
COLLAR,6.5X10.5X14 92152 92152-0901 1
COLLAR,6.5X10.5X13 92152A 92152-0902 1
SCREW,TAPPING,3X12 92172 92172-0489 2
KIT-ACCESSORY,GRIP-HEATER 99994 99994-0887 1
