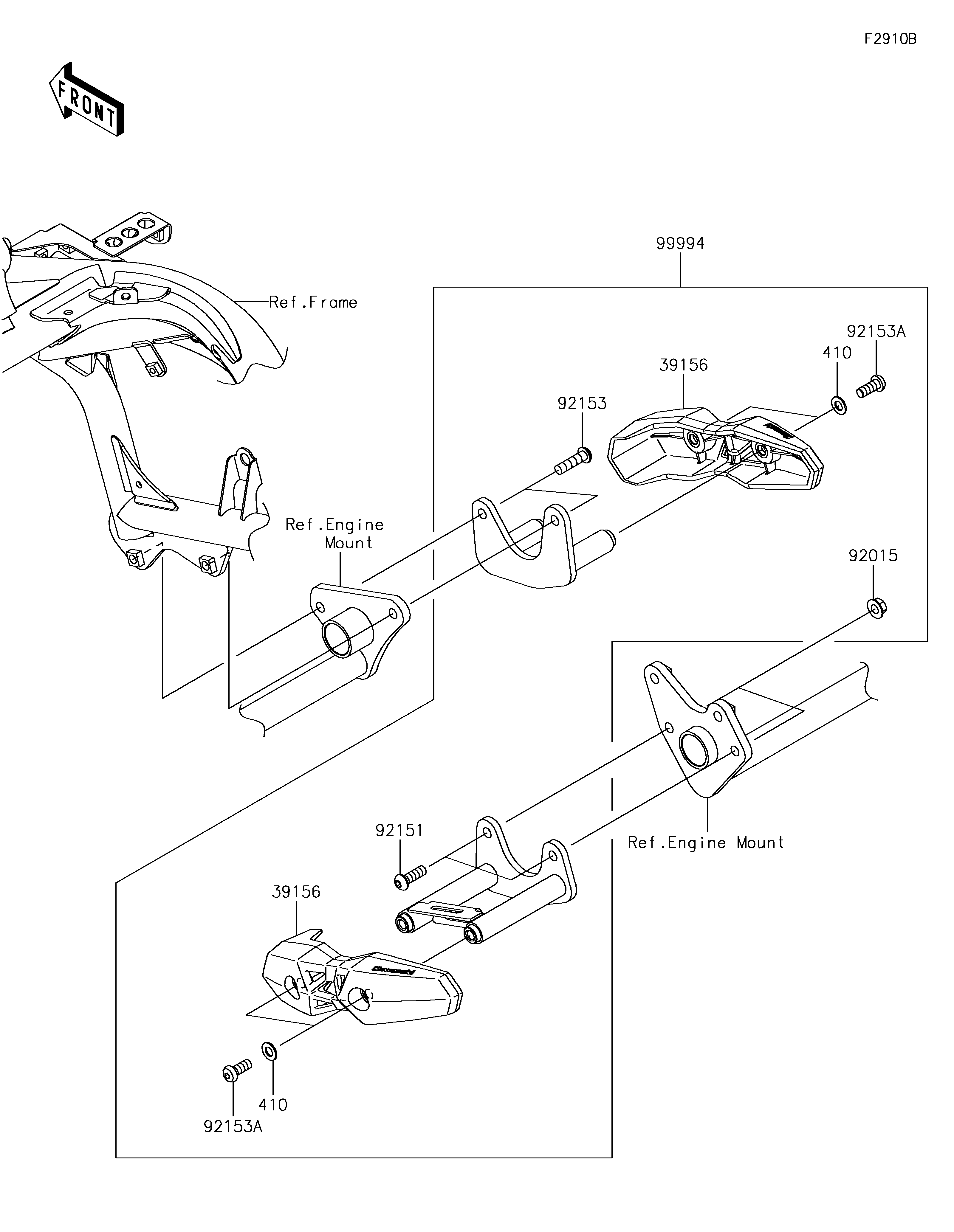

39156
39156
410
410
92015
92151
92153
92153A
92153A
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PAD,SLIDER 39156 39156-1818 2
WASHER-PLAIN-SMALL,8MM,BLACK 410 410AB0800 4
NUT,FLANGED,8MM 92015 92015-1014 2
BOLT,SOCKET,8X25 92151 92151-1327 2
BOLT,SOCKET,8X30 92153 92153-0393 2
BOLT,SOCKET,8X20 92153A 92153-0912 4
KIT-ACCESSORY,GUARD-ENGINE 99994 99994-0477 1
