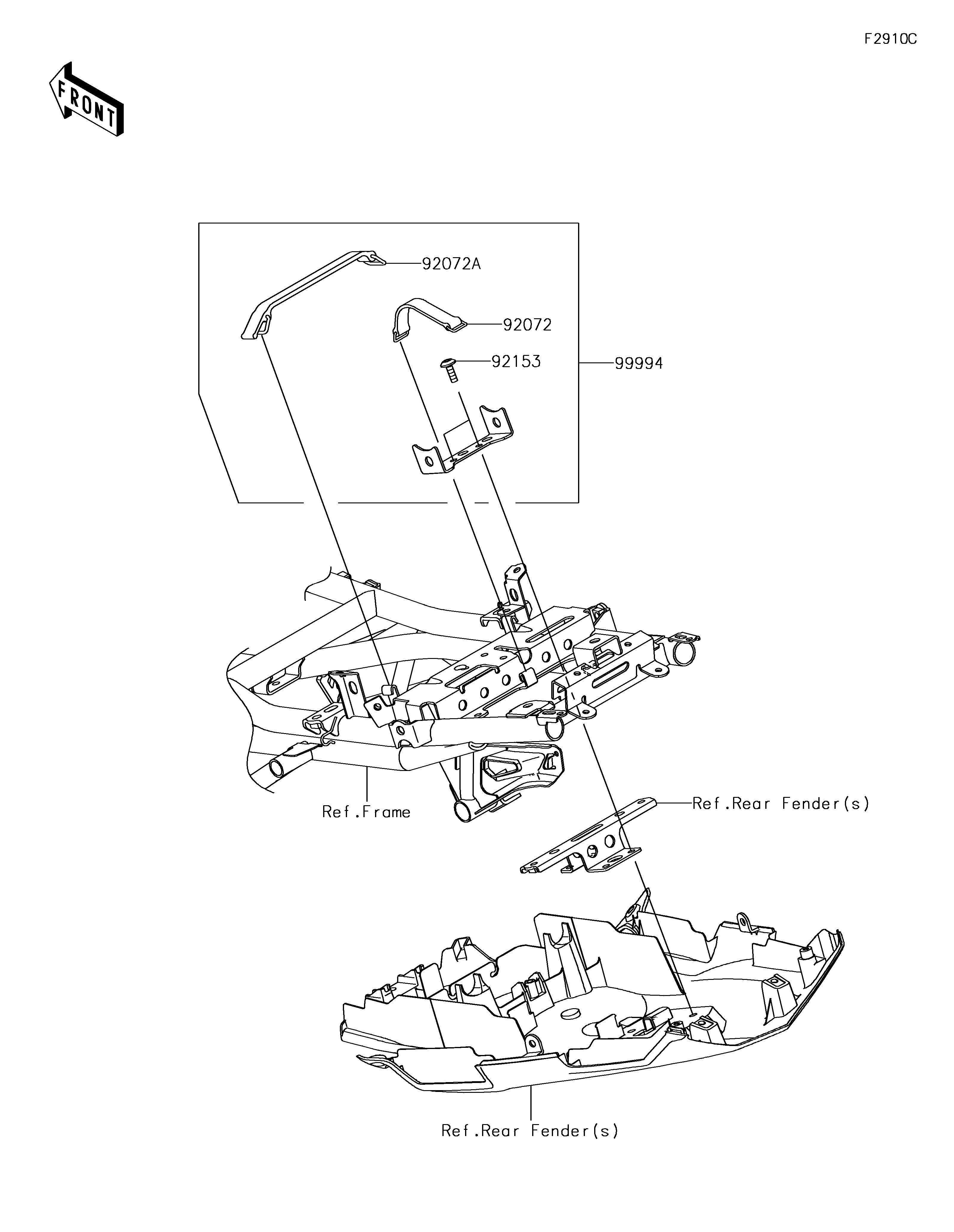

2017 Versys 650 ABS - Accessory(U-Lock Bracket)

92072
92072A
92153
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BAND,L=82 92072 92072-053 1
BAND,L=150 92072A 92072-1203 1
BOLT,SOCKET,6X18 92153 92153-1675 2
KIT-ACCESSORY,U-LOCK 99994 99994-0888 1
