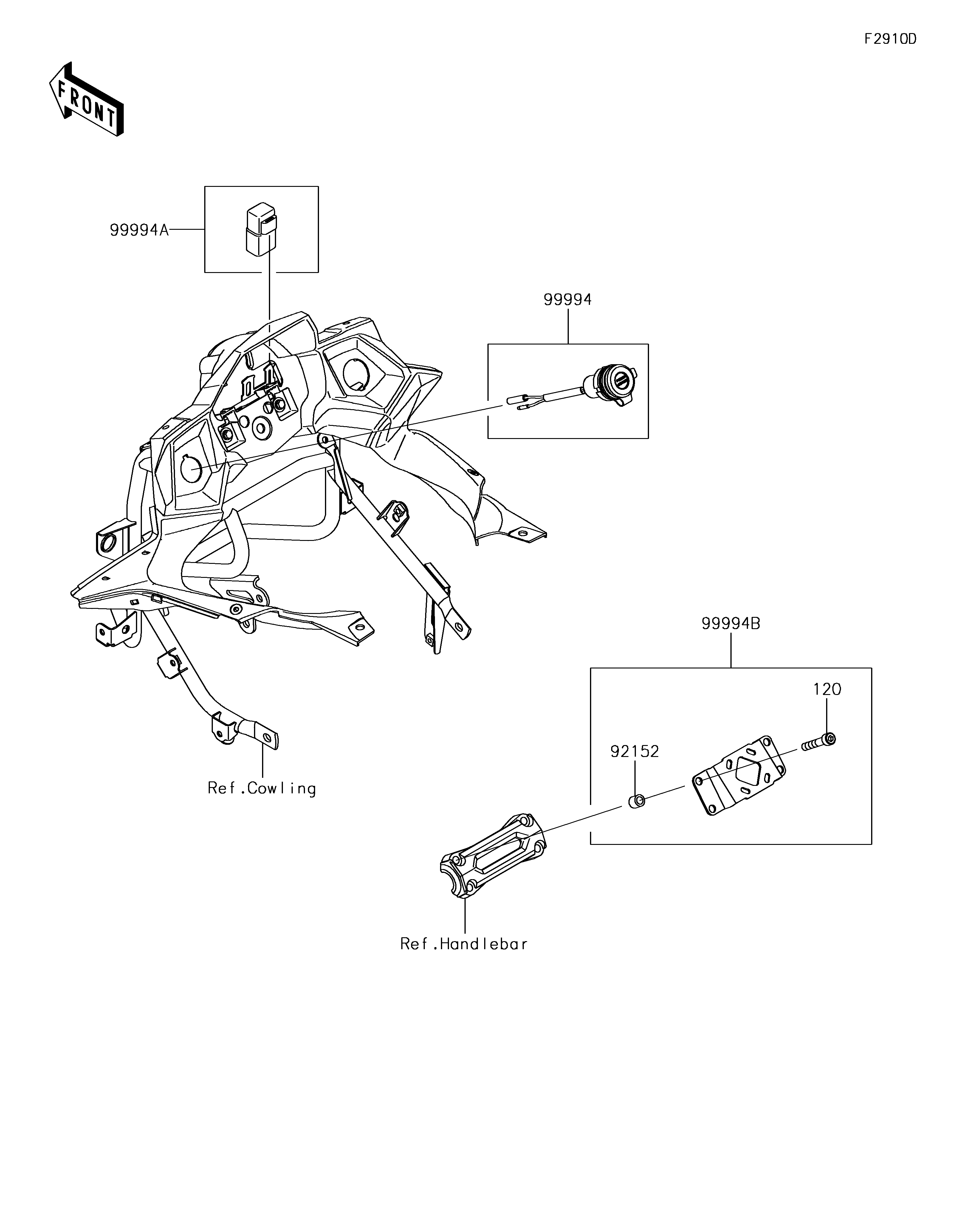

2017 Versys 650 ABS - Accessory(DC Output etc.)

120
92152
99994
99994A
99994B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120CC0845 4
COLLAR 92152 92152-2330 4
KIT-ACCESSORY,DC OUTPUT 99994 99994-0485 1
KIT-ACCESSORY,RELAY 99994A 99994-0556 1
KIT-ACCESSORY,GPS NAVI BKT 99994B 99994-0910 1
