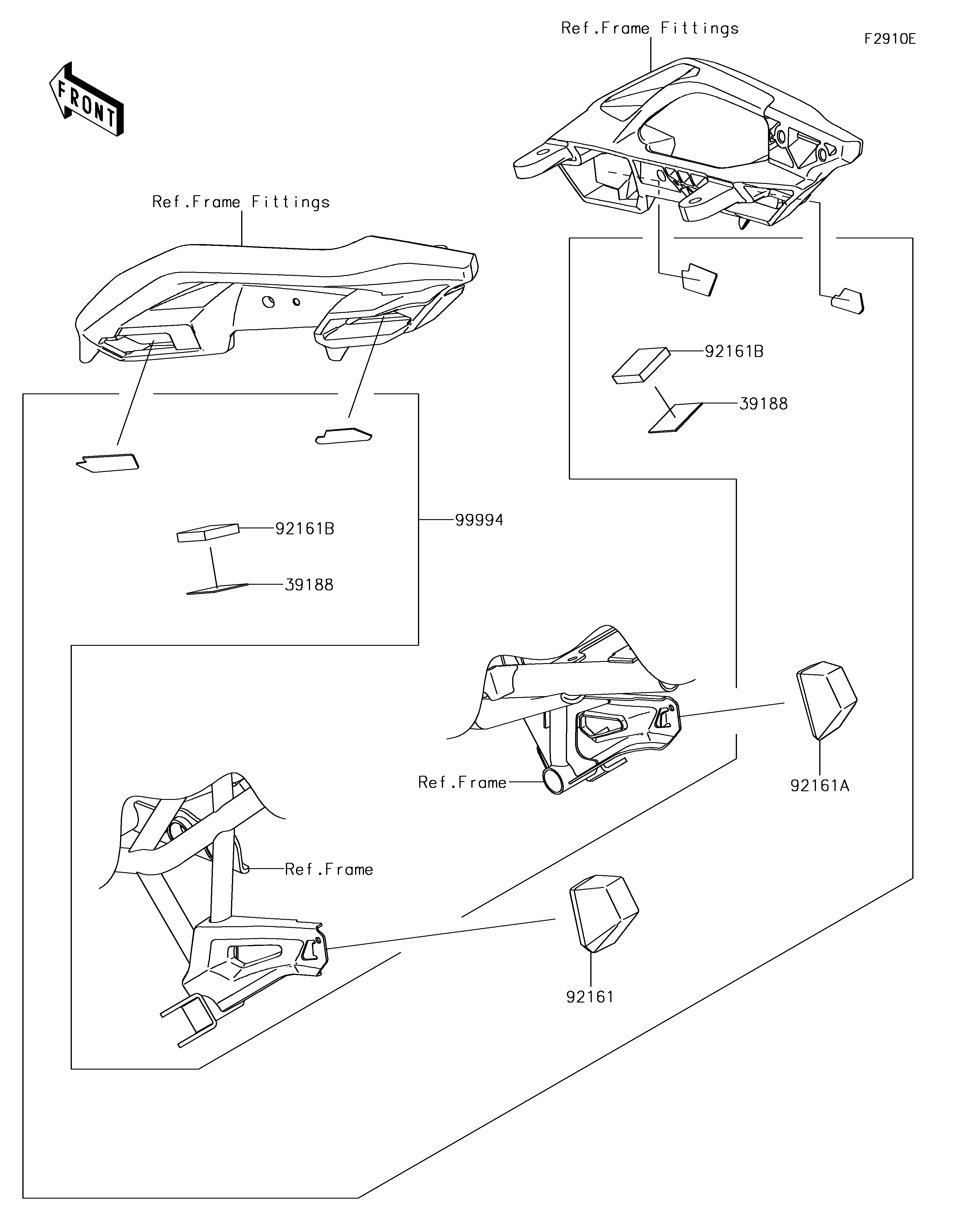

2017 Versys 650 ABS - Accessory(Bag Fitting Kit)

39188
39188
92161
92161A
92161B
92161B
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TAPE,34X34 39188 39188-0561 2
DAMPER,PANNIER,LH 92161 92161-1550 1
DAMPER,PANNIER,RH 92161A 92161-1551 1
DAMPER,34X34X7 92161B 92161-1795 2
KIT-ACCESSORY,BAG FITTING KIT 99994 99994-0537 1
