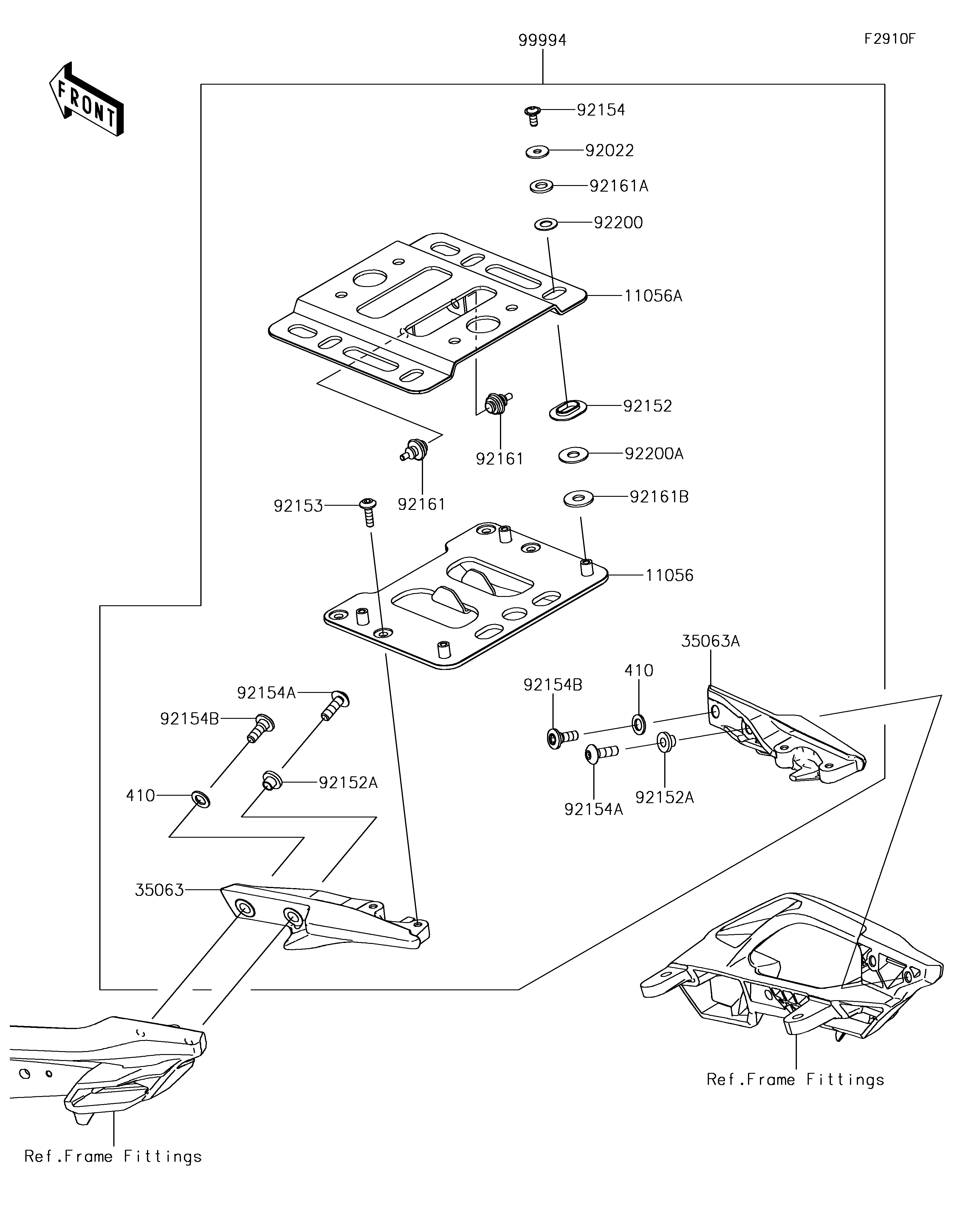

2017 Versys 650 ABS - Accessory(Topcase Bracket)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
35063
35063A
410
410
92022
92152
92152A
92152A
92153
92154
92154A
92154A
92154B
92154B
92161
92161
92161A
92161B
92200
92200A
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TOPCASE,LWR 11056 11056-7239 1
BRACKET,TOPCASE,UPP 11056A 11056-7240 1
STAY,CARRIER,LH,F.S.BLACK 35063 35063-0971-18R 1
STAY,CARRIER,RH,F.S.BLACK 35063A 35063-0972-18R 1
WASHER-PLAIN-SMALL,10MM 410 410AA1000 2
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 4
COLLAR,20.5X36X4.7 92152 92152-1983 4
COLLAR,8X10X10 92152A 92152-2134 2
BOLT,SOCKET,6X22 92153 92153-1792 4
BOLT,SOCKET,6X14 92154 92154-0856 4
BOLT,TORX,8X26 92154A 92154-1897 2
BOLT,SOCKET,8X23 92154B 92154-1901 2
DAMPER,STEP 92161 92161-0766 2
DAMPER,10.3X20X2 92161A 92161-1750 4
DAMPER,10.3X26X2 92161B 92161-1751 4
WASHER,10.3X20X1 92200 92200-0414 4
WASHER,10.3X26X1.5 92200A 92200-1697 4
KIT-ACCESSORY,TOPCASE BKT 99994 99994-0842 1
