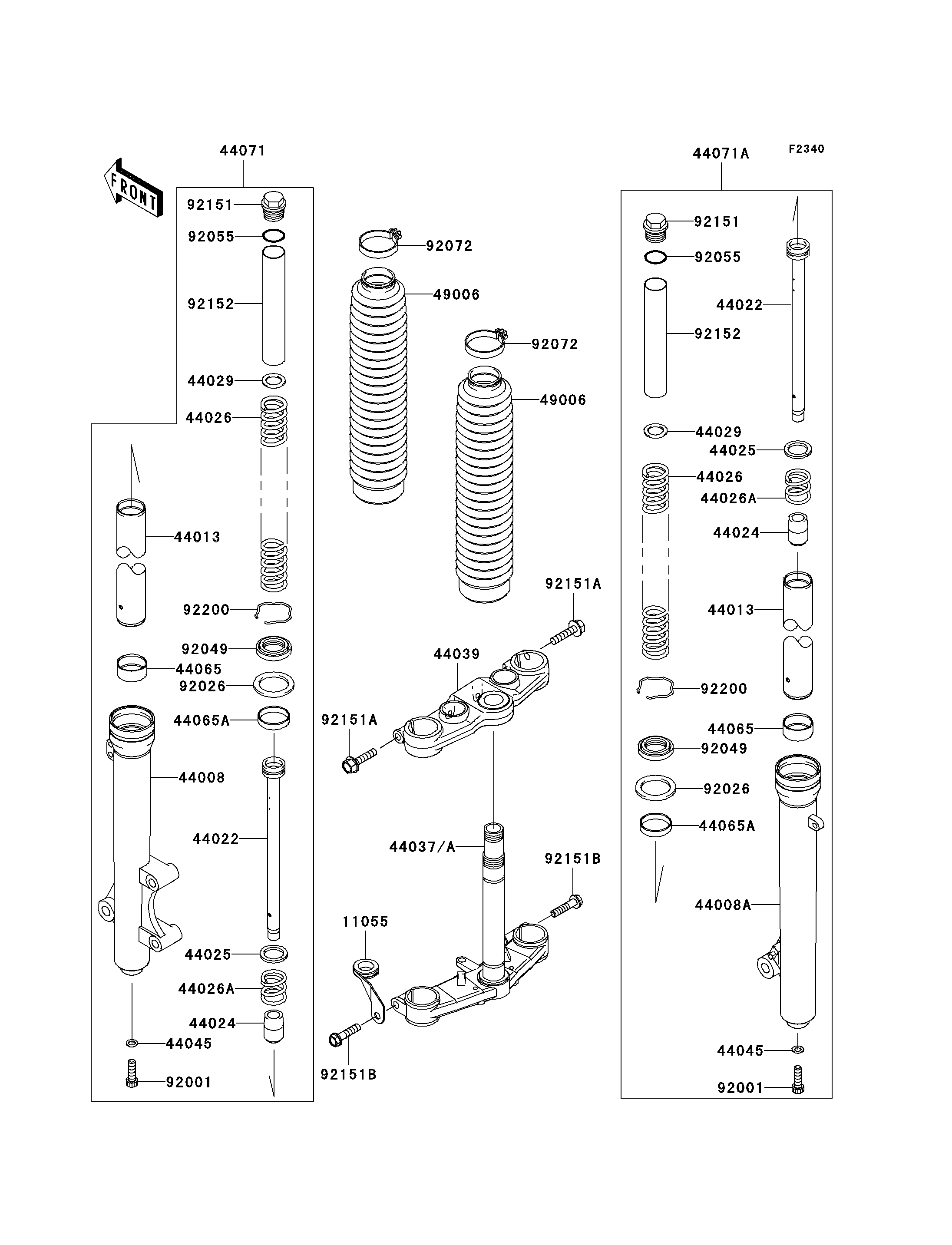

2008 KLX®140 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11055
44008
44008A
44013
44013
44022
44022
44024
44024
44025
44025
44026
44026
44026A
44026A
44029
44029
44037A
44039
44045
44045
44065
44065
44065A
44065A
44071
44071A
49006
49006
92001
92001
92026
92026
92049
92049
92055
92055
92072
92072
92151
92151
92151A
92151A
92151B
92151B
92152
92152
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CABLE GUIDE 11055 11055-0460 1
PIPE-FORK OUTER,LH,P.SILVER 44008 44008-0038-458 1
PIPE-FORK OUTER,RH,P.SILVER 44008A 44008-0039-458 1
PIPE-FORK INNER 44013 44013-0112 2
CYLINDER-FORK 44022 44022-0021 2
CAP-OIL-LOCK 44024 44024-1067 2
RING-FORK PISTON 44025 44025-1065 2
SPRING-FRONT FORK 44026 44026-0118 2
SPRING-FRONT FORK 44026A 44026-1417 2
SEAT-FORK SPRING 44029 44029-1136 2
HOLDER-FORK UNDER,P.SILVER 44037A 44037-0072-458 1
HOLDER-FORK UPPER 44039 44039-0066 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
BUSHING-FRONT FORK,INNER PIPE 44065 44065-1123 2
BUSHING-FRONT FORK 44065A 44065-1133 2
DAMPER-ASSY,FORK,LH,P.SILVER 44071 44071-0540-458 1
DAMPER-ASSY,FORK,RH,P.SILVER 44071A 44071-0541-458 1
BOOT,FORK,BLACK 49006 49006-0057-BD 2
BOLT,FORK CYLINDER 92001 92001-1464 2
SPACER 92026 92026-1365 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1524 2
RING-O,FORK TOP 92055 92055-1367 2
BAND,BOOT 92072 92072-0107 2
BOLT,FORK TOP 92151 92151-1262 2
BOLT,FLANGED,8X35 92151A 92151-1635 2
BOLT,FLANGED,10X35 92151B 92151-1636 2
COLLAR,FORK,L=150 92152 92152-0643 2
WASHER 92200 92200-1496 2
