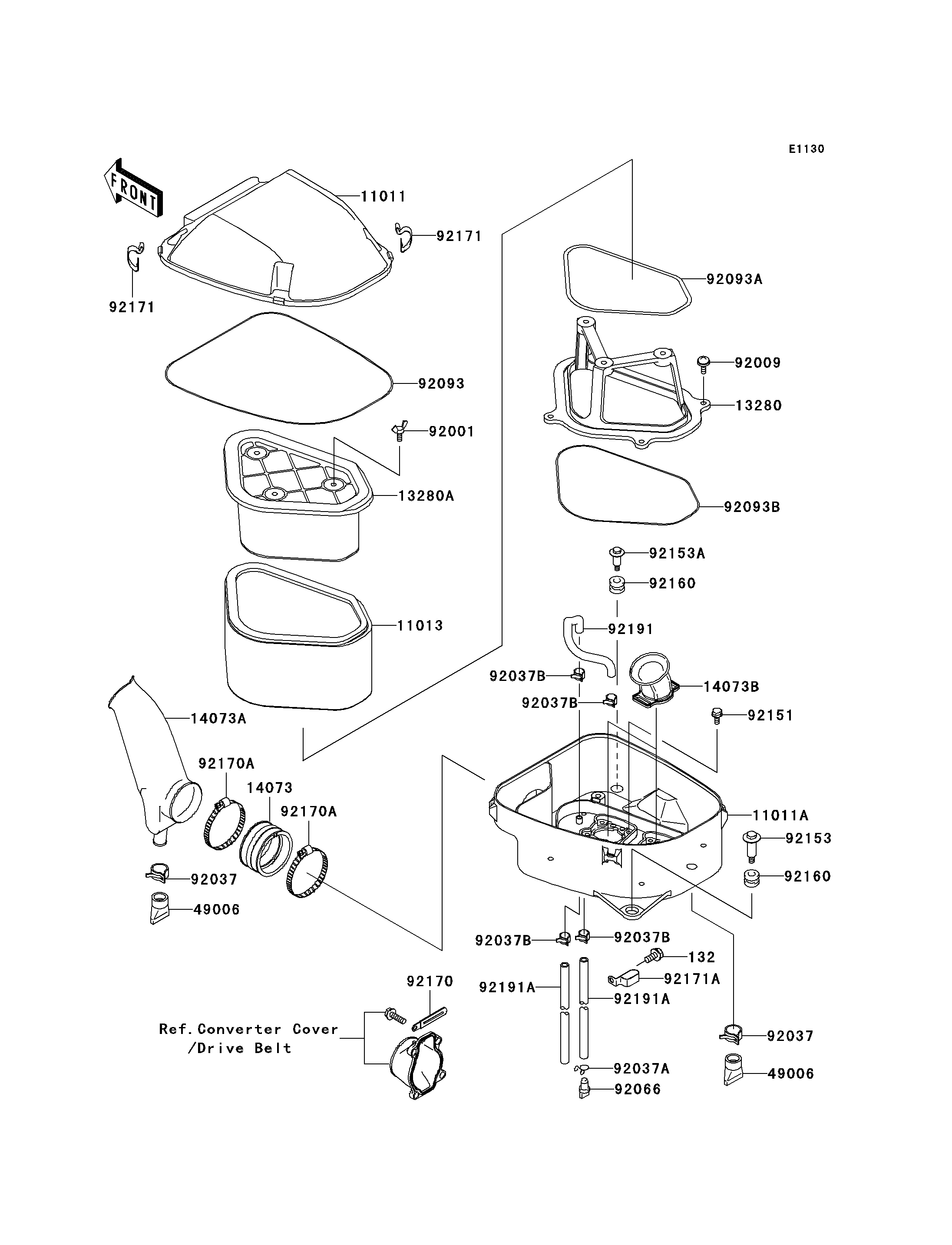

2005 Brute Force 650 4x4 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
132
11011
11011A
11013
13280
13280A
14073
14073A
14073B
49006
49006
92001
92009
92037
92037
92037A
92037B
92037B
92037B
92037B
92066
92093
92093A
92093B
92151
92153
92153A
92160
92160
92170
92170A
92170A
92171
92171
92171A
92191
92191A
92191A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132Y0612 1
CASE-AIR FILTER,UPP 11011 11011-0046 1
CASE-AIR FILTER,LWR 11011A 11011-0047 1
ELEMENT-AIR FILTER 11013 11013-0001 1
HOLDER 13280 13280-0111 1
HOLDER 13280A 13280-1272 1
DUCT,JOINT 14073 14073-1775 1
DUCT,INTAKE 14073A 14073-1778 1
DUCT,AIR FANNEL 14073B 14073-1830 2
BOOT 49006 49006-1292 2
BOLT,WING,6X15 92001 92001-1703 3
SCREW,6X16 92009 92009-1621 4
CLAMP,HOSE CLIP 92037 92037-1460 2
CLAMP,TUBE 92037A 92037-147 1
CLAMP,TUBE 92037B 92037-1505 4
PLUG,DRAIN 92066 92066-1211 1
SEAL,AIR FILTER CASE 92093 92093-1522 1
SEAL,HOLDER-HOLDER 92093A 92093-1569 1
SEAL,HOLDER-LOWER 92093B 92093-1570 1
BOLT,FLANGED,5X12 92151 92151-1305 8
BOLT,AIR FILTER,LH 92153 92153-1051 1
BOLT,FLANGED,6X28.7 92153A 92153-1052 1
DAMPER 92160 92160-1594 2
CLAMP 92170 92170-1514 1
CLAMP 92170A 92170-1764 2
CLAMP,AIR FILTER CASE 92171 92171-1394 4
CLAMP,AIR VENT 92171A 92171-1522 1
TUBE,7X11X210 92191 92191-1494 1
TUBE,7X11X470 92191A 92191-1531 2
