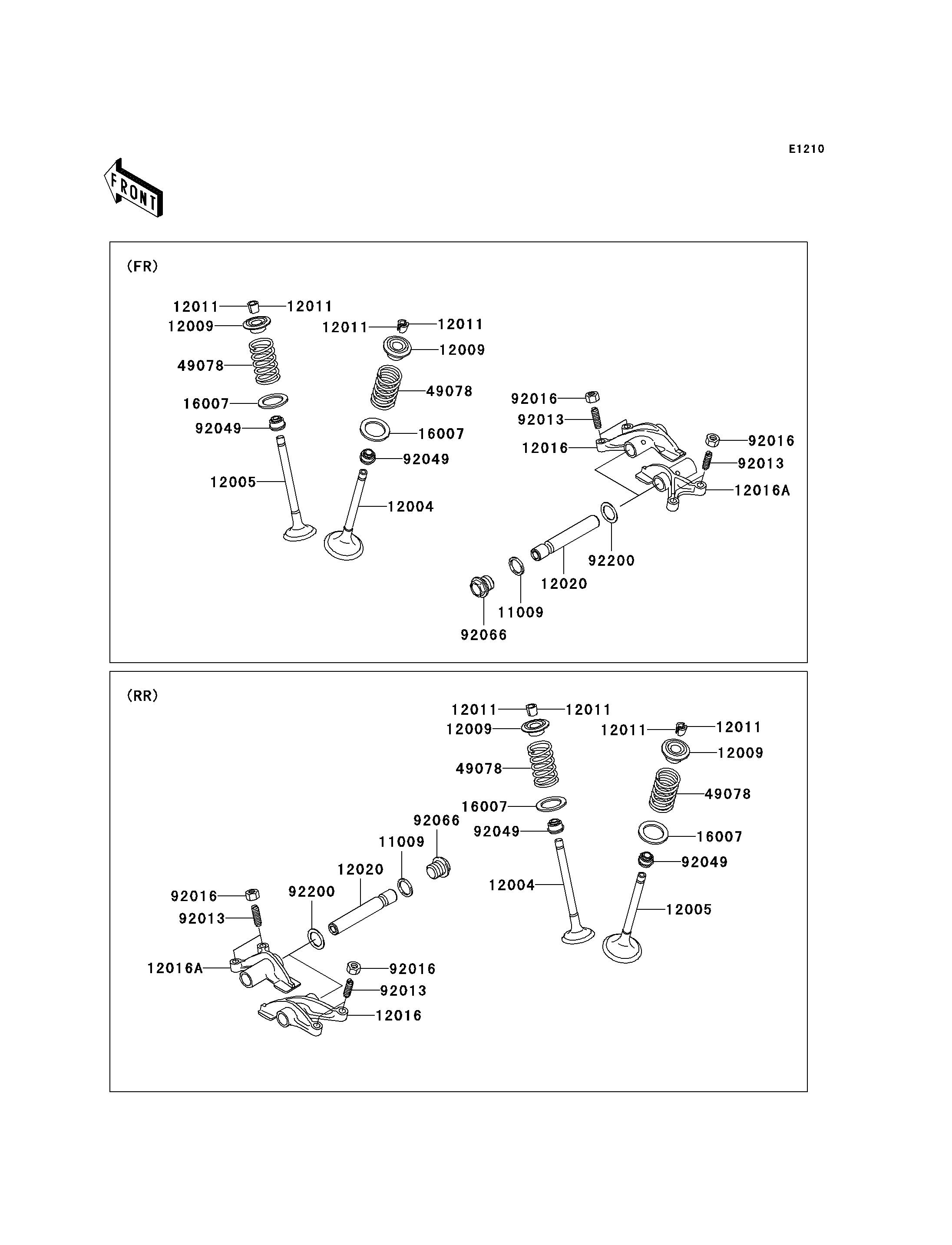

2005 Brute Force 650 4x4 - Valve(s)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
12004
12004
12005
12005
12009
12009
12009
12009
12011
12011
12011
12011
12011
12011
12011
12011
12016
12016
12016A
12016A
12020
12020
16007
16007
16007
16007
49078
49078
49078
49078
92013
92013
92013
92013
92016
92016
92016
92016
92049
92049
92049
92049
92066
92066
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,14X18X1.5 11009 11009-1430 4
VALVE-INTAKE 12004 12004-0007 4
VALVE-EXHAUST 12005 12005-0016 4
RETAINER-VALVE SPRING 12009 12009-1056 8
COLLET 12011 12011-1051 16
ARM-ROCKER,EXHAUST 12016 12016-1128 2
ARM-ROCKER,INTAKE 12016A 12016-1129 2
SHAFT-ROCKER 12020 12020-0004 4
SEAT-SPRING,17.5X23.8X0.5 16007 16007-1178 8
SPRING-ENGINE VALVE 49078 49078-0014 8
SCREW,6MM 92013 92013-009 8
NUT,6MM 92016 92016-061 8
SEAL-OIL,VSB58.558 92049 92049-1218 8
PLUG,DRAIN 92066 92066-2196 4
WASHER,13X17X0.3 92200 92200-1508 4
