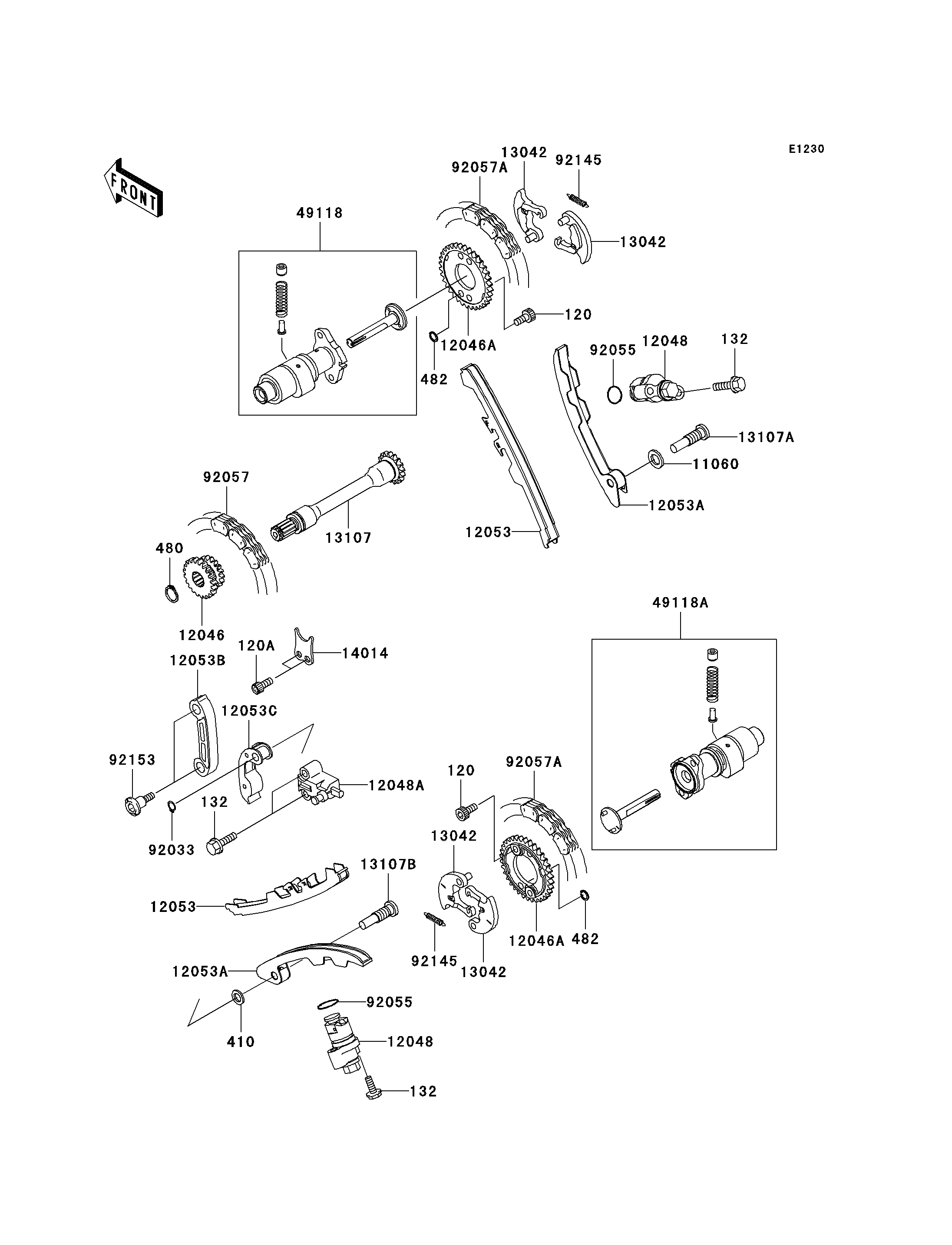

2005 Brute Force 650 4x4 - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
120
120
120A
132
132
132
410
480
482
482
11060
12046
12046A
12046A
12048
12048
12048A
12053
12053
12053A
12053A
12053B
12053C
13042
13042
13042
13042
13107
13107A
13107B
14014
49118
49118A
92033
92055
92055
92057
92057A
92057A
92145
92145
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X10 120 120P0610 4
BOLT-SOCKET,6X14 120A 120S0614 2
BOLT-FLANGED-SMALL,6X30 132 132Y0630 6
WASHER-PLAIN-SMALL,8MM 410 410B0800 1
CIRCLIP-TYPE-C,14MM 480 480J1400 1
CIRCLIP-TYPE-E 482 482J5000 4
GASKET 11060 11060-1966 1
SPROCKET,21T&17T 12046 12046-0021 1
SPROCKET,CAMSHAFT,34T 12046A 12046-1203 2
TENSIONER-ASSY,CAM 12048 12048-1176 2
TENSIONER-ASSY,SECONDARY 12048A 12048-1177 1
GUIDE-CHAIN,CAMSHAFT,TENSION 12053 12053-1441 2
GUIDE-CHAIN,CAMSHAFT,SLACK 12053A 12053-1442 2
GUIDE-CHAIN,TENSION 12053B 12053-1443 1
GUIDE-CHAIN,SLACK 12053C 12053-1444 1
WEIGHT,DECOMP 13042 13042-1141 4
SHAFT 13107 13107-0029 1
SHAFT,CHAIN GUIDE,FR 13107A 13107-1443 1
SHAFT,CHAIN GUIDE,RR 13107B 13107-1444 1
PLATE-POSITION,DRIVE 14014 14014-1148 1
CAMSHAFT-COMP,FR 49118 49118-1193 1
CAMSHAFT-COMP,RR 49118A 49118-1194 1
RING-SNAP,8MM 92033 92033-1039 1
RING-O,18.8X1.9 92055 92055-086 2
CHAIN,DID SCR-0412 SDH 92057 92057-0073 1
CHAIN,DID SCR-0409 SDH 92057A 92057-0074 2
SPRING,DECOMP 92145 92145-1303 2
BOLT,SOCKET,6X24.5 92153 92153-1200 2
