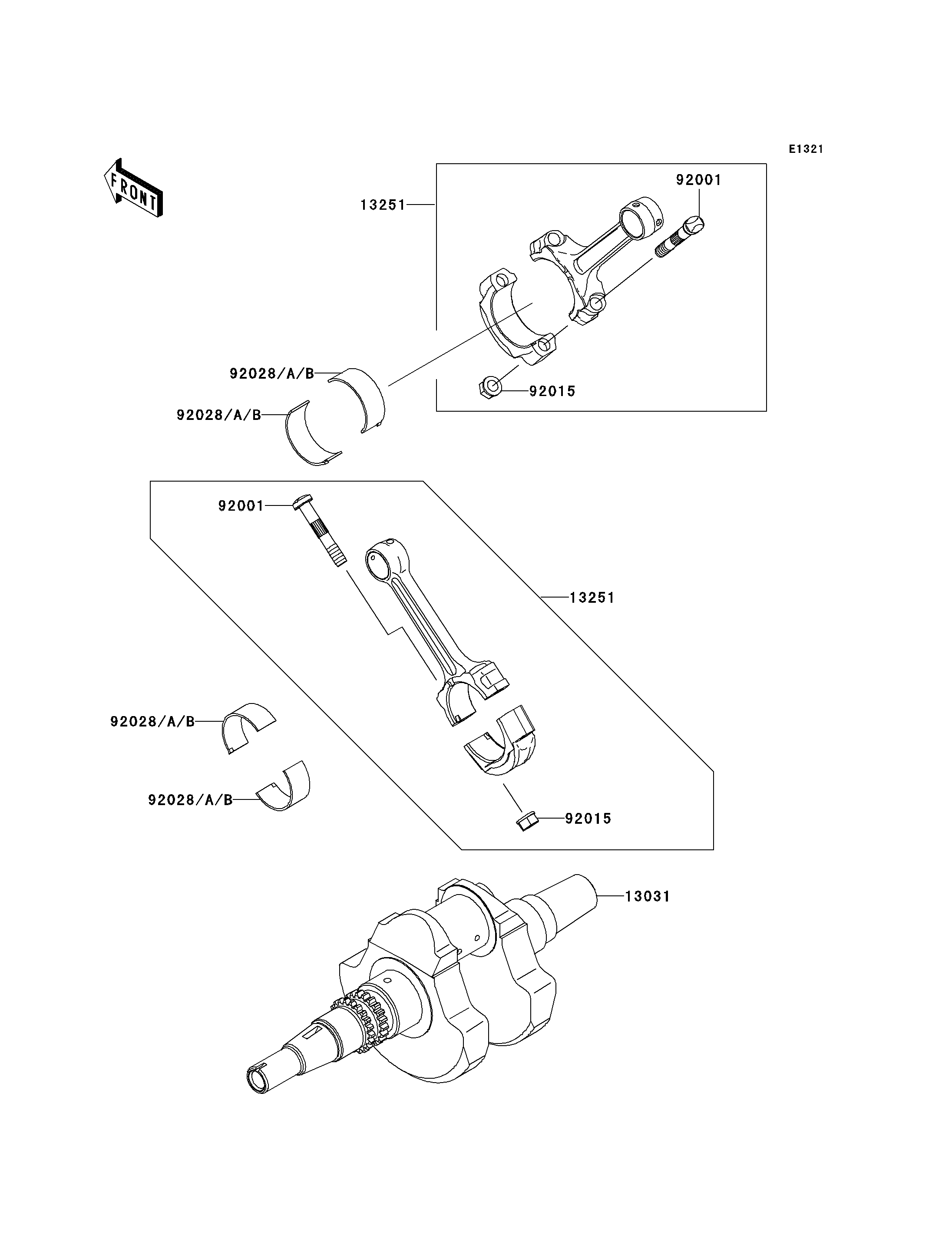

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKSHAFT-COMP 13031 13031-1473 1
ROD-ASSY-CONNECTING 13251 13251-1130 2
BOLT,CONNECTING ROD 92001 92001-1980 4
NUT,FLANGED,8MM 92015 92015-1311 4
BUSHING,CONNECTING ROD,GREEN 92028 92028-1961 AR
BUSHING,CONNECTING ROD,YELLOW 92028A 92028-1962 4
BUSHING,CONNECTING ROD,BROWN 92028B 92028-1963 AR
