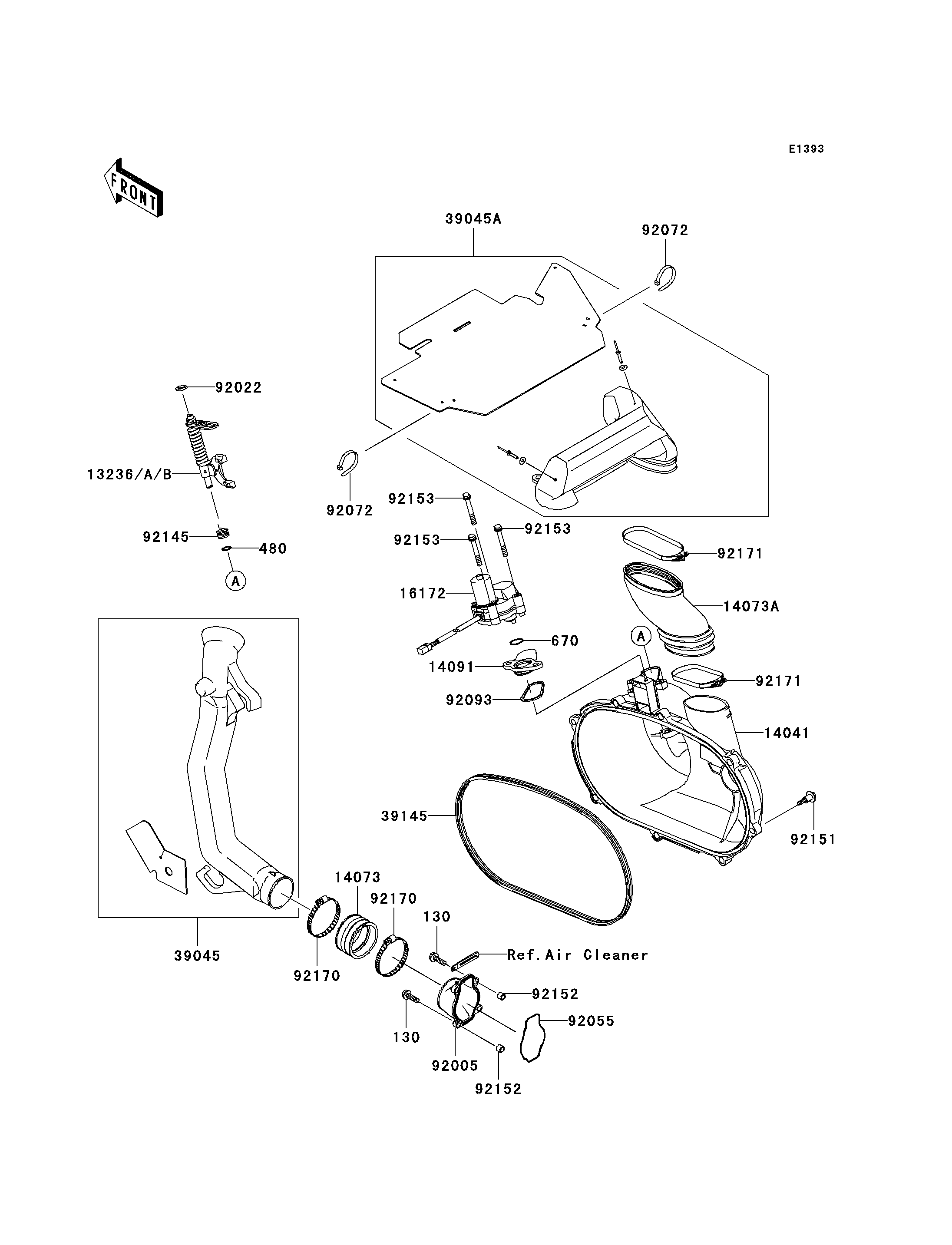

2005 Brute Force 650 4x4 - Converter Cover

DOWNLOAD PDF
SELECT A NEW PART
130
130
480
670
13236
13236A
13236B
14041
14073
14073A
14091
16172
39045
39045A
39145
92005
92022
92055
92072
92072
92093
92145
92151
92152
92152
92153
92153
92153
92170
92170
92171
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130Z0620 4
CIRCLIP-TYPE-C,10MM 480 480J1000 1
O RING 670 670D3022 1
LEVER-COMP,YELLOW 13236 13236-0046 AR
LEVER-COMP,GREEN 13236A 13236-0047 AR
LEVER-COMP,PAINT LESS 13236B 13236-0048 1
COVER-COMP 14041 14041-1158 1
DUCT,JOINT 14073 14073-1775 1
DUCT,EXHAUST 14073A 14073-1792 1
COVER 14091 14091-1421 1
ACTUATOR 16172 16172-0006 1
DUCT-ASSY,SNORKEL,IN 39045 39045-0002 1
DUCT-ASSY,SNORKEL,EX 39045A 39045-1063 1
TRIM-SEAL 39145 39145-1135 1
FITTING 92005 92005-1387 1
WASHER,10.2X16X1 92022 92022-1829 1
RING-O 92055 92055-1630 1
BAND,L=188 92072 92072-1239 2
SEAL 92093 92093-1548 1
SPRING 92145 92145-1567 1
BOLT,FLANGED,6X30 92151 92151-1686 8
COLLAR 92152 92152-1332 4
BOLT,6X47 92153 92153-0678 3
CLAMP 92170 92170-1764 2
CLAMP 92171 92171-1336 2
