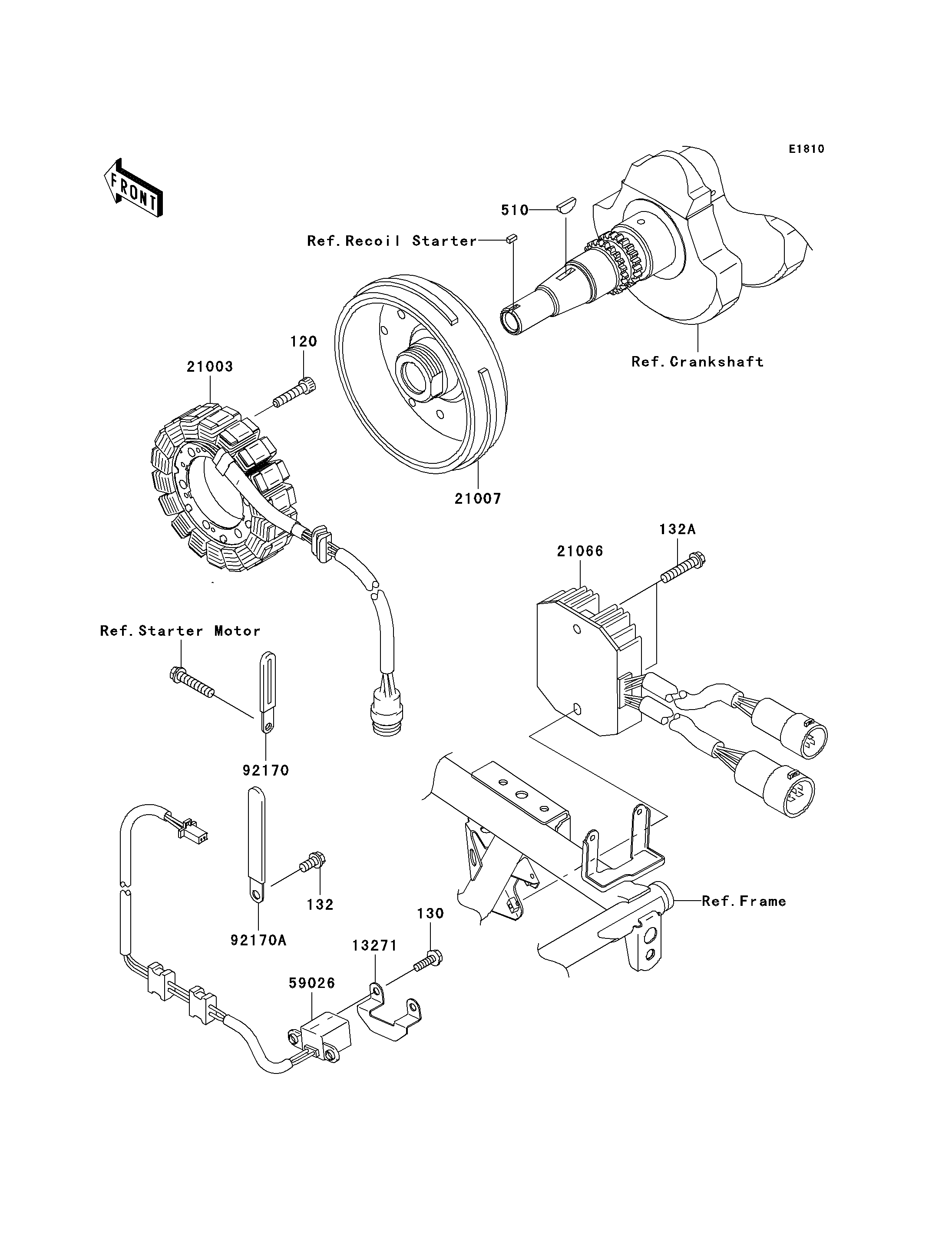

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X28 120 120P0628 3
BOLT-FLANGED,5X16 130 130G0516 2
BOLT-FLANGED-SMALL,6X12 132 132Y0612 1
BOLT-FLANGED-SMALL,6X30 132A 132Y0630 2
KEY-WOODRUFF 510 510A4200 1
PLATE 13271 13271-1369 1
STATOR 21003 21003-1359 1
ROTOR 21007 21007-1367 1
REGULATOR-VOLTAGE 21066 21066-1112 1
COIL-PULSING 59026 59026-1159 1
CLAMP 92170 92170-1514 1
CLAMP 92170A 92170-1925 1
