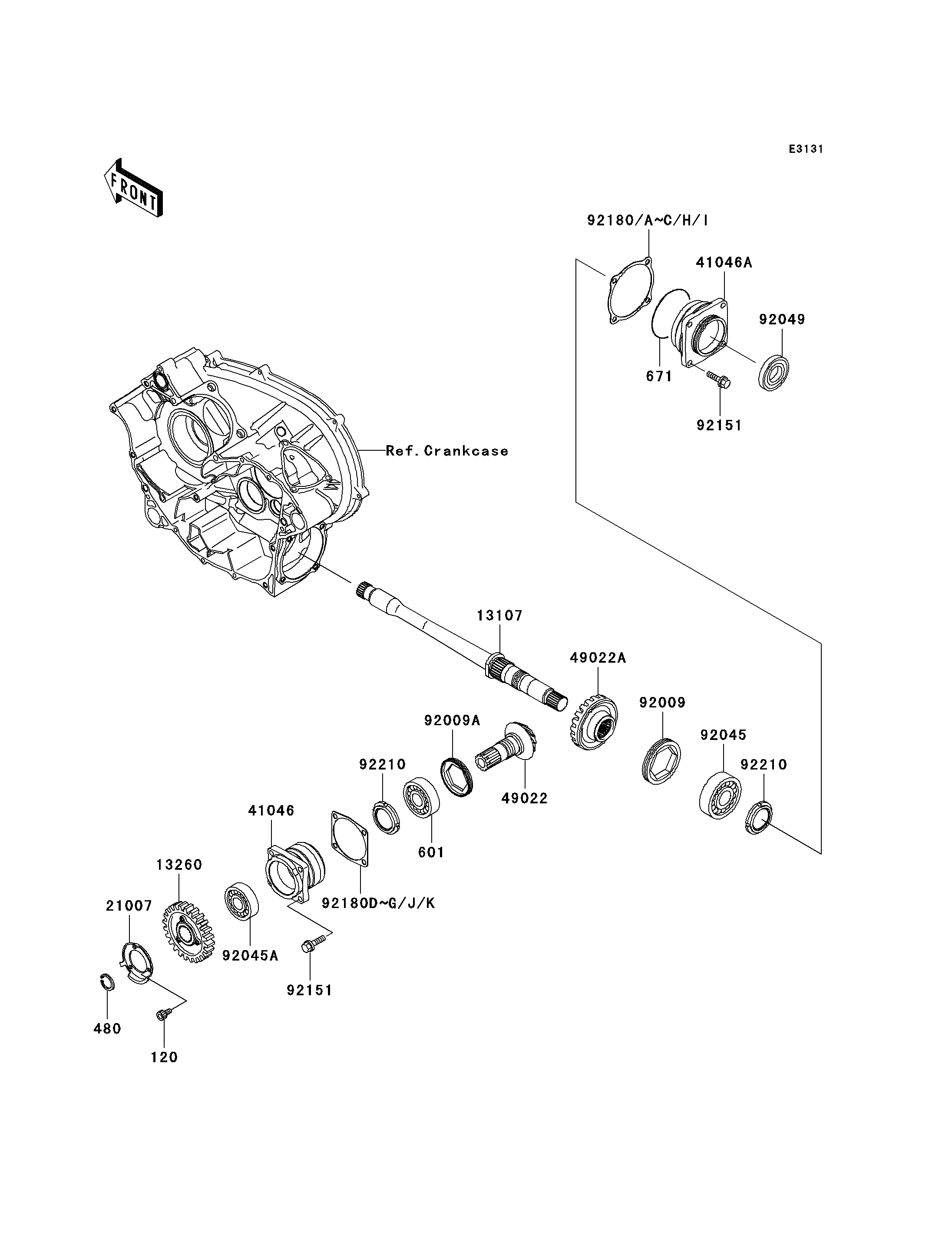

2005 Brute Force 650 4x4 - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
120
480
601
671
13107
13260
21007
41046
41046A
49022
49022A
92009
92009A
92045
92045A
92049
92151
92151
92180
92180A
92180B
92180C
92180D
92180E
92180F
92180G
92180H
92180I
92180J
92180K
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120P0612 3
CIRCLIP-TYPE-C,28MM 480 480J2800 1
BEARING-BALL,#6206C3 601 601B6206 1
O RING 671 671D2585 1
SHAFT 13107 13107-0027 1
GEAR,OUTPUT 29T 13260 13260-1922 1
ROTOR,REVERSE SENSOR 21007 21007-1416 1
HOUSING-BEARING 41046 41046-1101 1
HOUSING-BEARING 41046A 41046-1102 1
GEAR-BEVEL,DRIVE,12T 49022 49022-0010 1
GEAR-BEVEL,DRIVEN,20T 49022A 49022-0011 1
SCREW-SET-SOCKET,75X10 92009 92009-1667 1
SCREW,64MM 92009A 92009-1914 1
BEARING-BALL,6306SH2 92045 92045-1190 1
BEARING-BALL,62/28 92045A 92045-1207 1
SEAL-OIL 92049 92049-1529 1
BOLT-FLANGED-SMALL,8X30 92151 92151-1688 8
SHIM,DRIVEN,T=0.15 92180 92180-1307 AR
SHIM,DRIVEN,T=0.20 92180A 92180-1308 AR
SHIM,DRIVEN,T=0.50 92180B 92180-1309 AR
SHIM,DRIVEN,T=0.80 92180C 92180-1310 AR
SHIM,DRIVE,T=0.15 92180D 92180-1311 AR
SHIM,DRIVE,T=0.20 92180E 92180-1312 AR
SHIM,DRIVE,T=0.50 92180F 92180-1313 AR
SHIM,DRIVE,T=0.80 92180G 92180-1314 AR
SHIM,DRIVEN,T=1.00 92180H 92180-1349 AR
SHIM,DRIVEN,T=1.20 92180I 92180-1350 AR
SHIM,DRIVE,T=1.00 92180J 92180-1351 AR
SHIM,DRIVE,T=1.20 92180K 92180-1352 AR
NUT,30MM 92210 92210-1294 2
