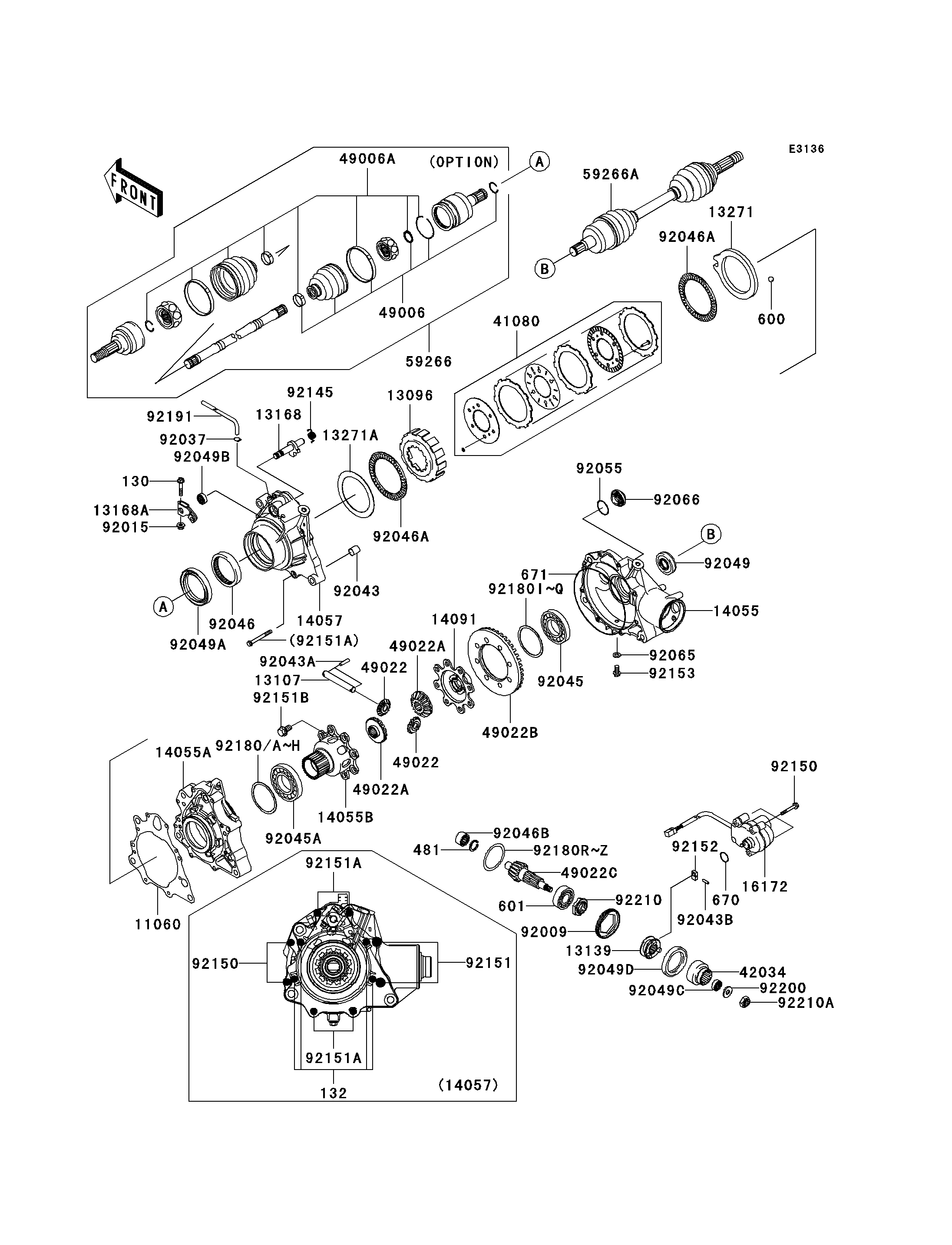

2005 Brute Force 650 4x4 - Drive Shaft-Front

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
11060
13096
13096
13096
13107
13107
13107
13139
13139
13139
13168
13168
13168
13168A
13168A
13168A
13271
13271
13271
13271A
13271A
13271A
14055
14055
14055
14055A
14055A
14055A
14055B
14055B
14055B
14057
14057
14057
14091
14091
14091
16172
16172
16172
41080
41080
41080
42034
42034
42034
49006
49006
49006
49006A
49006A
49006A
49022
49022
49022
49022
49022
49022
49022A
49022A
49022A
49022A
49022A
49022A
49022B
49022B
49022B
49022C
49022C
49022C
59266
59266
59266
59266A
59266A
59266A
92009
92009
92009
92015
92015
92015
92037
92037
92037
92043
92043
92043
92043A
92043A
92043A
92043B
92043B
92043B
92045
92045
92045
92045A
92045A
92045A
92046
92046
92046
92046A
92046A
92046A
92046A
92046A
92046A
92046B
92046B
92046B
92049
92049
92049
92049A
92049A
92049A
92049B
92049B
92049B
92049C
92049C
92049C
92049D
92049D
92049D
92055
92055
92055
92065
92065
92065
92066
92066
92066
92145
92145
92145
92150
92150
92150
92150
92150
92150
92151
92151
92151
92151A
92151A
92151A
92151A
92151A
92151A
92151B
92151B
92151B
92152
92152
92152
92153
92153
92153
92180
92180
92180
92180A
92180A
92180A
92180B
92180B
92180B
92180C
92180C
92180C
92180D
92180D
92180D
92180E
92180E
92180E
92180F
92180F
92180F
92180G
92180G
92180G
92180H
92180H
92180H
92180I
92180I
92180I
92180J
92180J
92180J
92180K
92180K
92180K
92180L
92180L
92180L
92180M
92180M
92180M
92180N
92180N
92180N
92180O
92180O
92180O
92180P
92180P
92180P
92180Q
92180Q
92180Q
92180R
92180R
92180R
92180S
92180S
92180S
92180T
92180T
92180T
92180U
92180U
92180U
92180V
92180V
92180V
92180W
92180W
92180W
92180X
92180X
92180X
92180Y
92180Y
92180Y
92180Z
92180Z
92180Z
92191
92191
92191
130
130
130
132
132
132
481
481
481
600
600
600
601
601
601
670
670
670
671
671
671
92200
92200
92200
92210
92210
92210
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DIFF CASE 11060 11060-1982 1
HOUSING-CLUTCH,DISC 13096 13096-1163 1
SHAFT,CROSS 13107 13107-1447 1
SHIFTER,DIFFERENTIAL 13139 13139-1097 1
LEVER,DIFF 13168 13168-1724 1
LEVER,DIFFERENTIAL 13168A 13168-1725 1
PLATE,CAM 13271 13271-1497 1
PLATE,DISC 13271A 13271-1503 1
CASE-GEAR 14055 14055-0014 1
CASE-GEAR,CENTER 14055A 14055-1155 1
CASE-GEAR,BEVEL,LH 14055B 14055-1156 1
CASE-COMP-GEAR,DIFF,LH 14057 14057-1004 1
COVER,BEVEL,RH 14091 14091-1197 1
ACTUATOR 16172 16172-0004 1
DISC ASSY,DIFFERENTIAL LOCK 41080 41080-1512 1
COUPLING,BEVEL 42034 42034-1192 1
BOOT,DOJ 49006 49006-0034 2 (OPTION)
BOOT,BJ 49006A 49006-0035 2 (OPTION)
GEAR-BEVEL,10T 49022 49022-1177 2
GEAR-BEVEL,16T 49022A 49022-1178 2
GEAR-BEVEL,35T 49022B 49022-1190 1
GEAR-BEVEL,8T 49022C 49022-1201 1
JOINT-BALL,LH 59266 59266-1135 1
JOINT-BALL,RH 59266A 59266-1136 1
SCREW,64MM 92009 92009-1914 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 1
CLAMP,HOSE 92037 92037-1104 1
PIN,6.2X8X14 92043 92043-1263 2
PIN 92043A 92043-1575 2
PIN,2X9.8 92043B 92043-1649 1
BEARING-BALL,60/32 92045 92045-1393 1
BEARING-BALL,6910 92045A 92045-1394 1
BEARING-NEEDLE,TA627412ZE02 92046 92046-1282 1
BEARING-NEEDLE,AK1116 92046A 92046-1286 2
BEARING-NEEDLE,AJ501515W 92046B 92046-1297 1
SEAL-OIL,SDD7 22X48X7HS 92049 92049-1534 1
SEAL-OIL,HTCY 62X81X10.5 92049A 92049-1536 1
SEAL-OIL,TC 12X22X7 92049B 92049-1550 1
SEAL-OIL,KB 13X19X13 92049C 92049-1572 1
SEAL-OIL,TCY 48X65X8 92049D 92049-1573 1
RING-O,25.7X2.4 92055 92055-1136 1
GASKET 92065 92065-023 1
PLUG 92066 92066-1303 1
SPRING,DIFF RETURN 92145 92145-1344 1
BOLT,6X45 92150 92150-1884 5
BOLT,8X50 92151 92151-1794 2
BOLT,6X60 92151A 92151-1795 4
BOLT,10X19.5 92151B 92151-1910 8
COLLAR 92152 92152-1349 1
BOLT,8X15 92153 92153-0870 1
SHIM,62X71X0.15 92180 92180-1390 AR
SHIM,62X71X0.20 92180A 92180-1391 AR
SHIM,62X71X0.50 92180B 92180-1392 AR
SHIM,62X71X0.70 92180C 92180-1393 AR
SHIM,62X71X0.80 92180D 92180-1394 AR
SHIM,62X71X0.90 92180E 92180-1395 AR
SHIM,62X71X1.00 92180F 92180-1396 AR
SHIM,62X71X1.10 92180G 92180-1397 AR
SHIM,62X71X1.20 92180H 92180-1398 AR
SHIM,32X42X0.15 92180I 92180-1399 AR
SHIM,32X42X0.20 92180J 92180-1400 AR
SHIM,32X42X0.50 92180K 92180-1401 AR
SHIM,32X42X0.70 92180L 92180-1402 AR
SHIM,32X42X0.80 92180M 92180-1403 AR
SHIM,32X42X0.90 92180N 92180-1404 AR
SHIM,32X42X1.00 92180O 92180-1405 AR
SHIM,32X42X1.10 92180P 92180-1406 AR
SHIM,32X42X1.20 92180Q 92180-1407 AR
SHIM,50X61X0.15 92180R 92180-1408 AR
SHIM,50X61X0.20 92180S 92180-1409 AR
SHIM,50X61X0.50 92180T 92180-1410 AR
SHIM,50X61X0.70 92180U 92180-1411 AR
SHIM,50X61X0.80 92180V 92180-1412 AR
SHIM,50X61X0.90 92180W 92180-1413 AR
SHIM,50X61X1.00 92180X 92180-1414 AR
SHIM,50X61X1.10 92180Y 92180-1415 AR
SHIM,50X61X1.20 92180Z 92180-1416 AR
TUBE,BREATHER 92191 92191-1638 1
BOLT-FLANGED,6X35 130 130G0635 1
BOLT-FLANGED-SMALL,6X30 132 132Y0630 4
CIRCLIP-TYPE-C,25MM 481 481J2500 1
BALL-STEEL,11/32" 600 600A1100 6
BEARING-BALL,#6305 601 601A6305 1
O RING 670 670D3022 1
O RING 671 671D25145 1
WASHER,10X24X2.5 92200 92200-1635 1
NUT,25MM 92210 92210-1225 1
NUT,LOCK,10MM 92210A 92210-1351 1
