130
130
130
130
130
130
34028
34028
34028A
34028B
92015
92015
92015

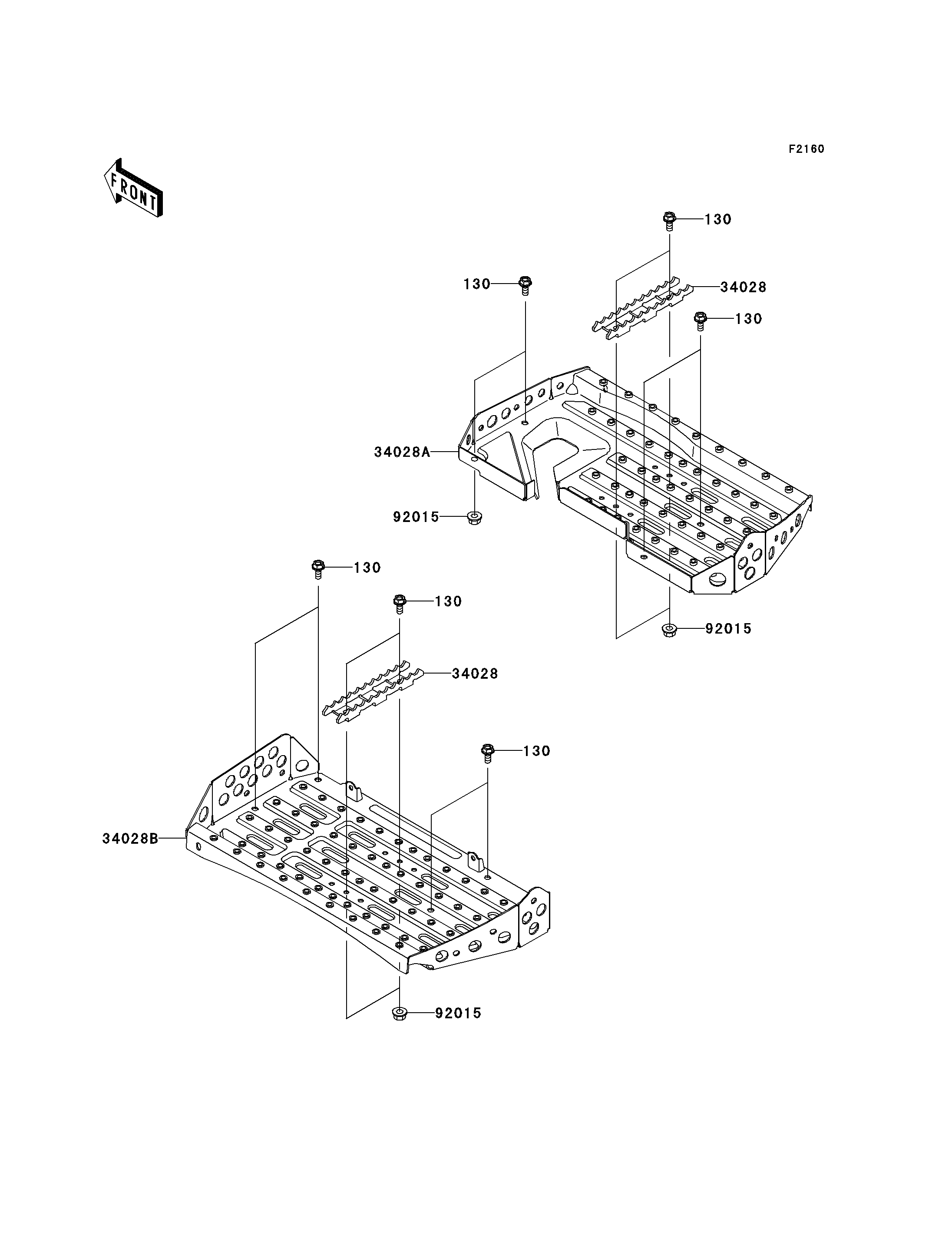

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130J0614 12
STEP,FOOT PEG,BLACK 34028 34028-1487-10 2
STEP,RH,BLACK 34028A 34028-1513-10 1
STEP,LH,BLACK 34028B 34028-1521-10 1
NUT,FLANGED,6MM 92015 92015-1367 5
