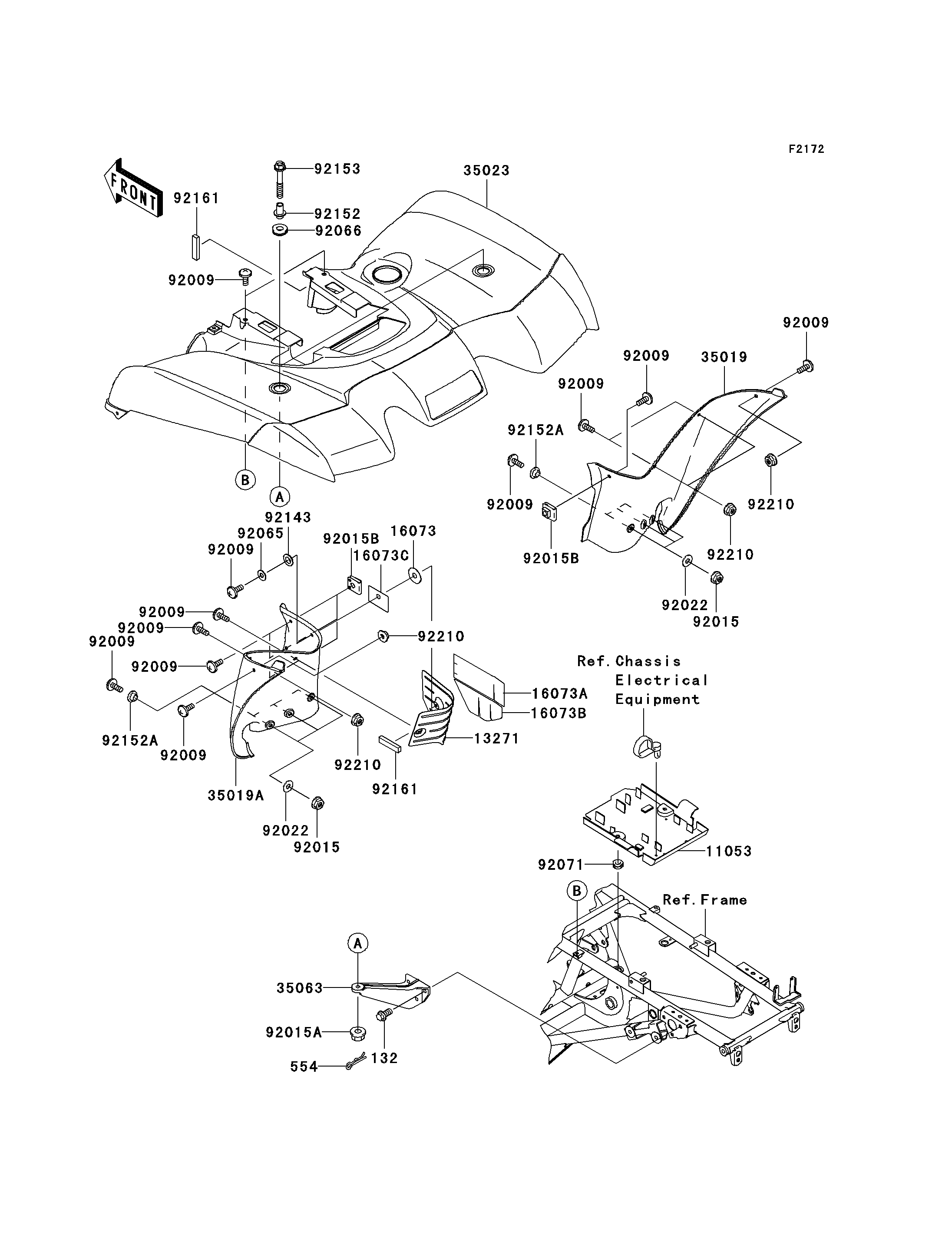

2005 Brute Force 650 4x4 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
132
554
11053
13271
16073
16073A
16073B
16073C
35019
35019A
35023
35063
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92015
92015
92015A
92015B
92015B
92022
92022
92065
92066
92071
92143
92152
92152A
92152A
92153
92161
92161
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X18 132 132J0818 6
PIN-SNAP,8MM 554 554A0800 2
BRACKET,ELECTRIC 11053 11053-1308 1
PLATE,HEAT GUARD 13271 13271-0411 1
INSULATOR 16073 16073-0023 1
INSULATOR 16073A 16073-0024 1
INSULATOR 16073B 16073-0025 1
INSULATOR 16073C 16073-0026 1
FLAP,RR,RH,F.BLACK 35019 35019-0033-6Z 1
FLAP,RR,LH,F.BLACK 35019A 35019-0041-6Z 1
FENDER-REAR,C.H.GREEN 35023 35023-0057-826 1
STAY,RR FENDER 35063 35063-1100 2
SCREW,6X16 92009 92009-1621 19
NUT,FLANGED,6MM 92015 92015-1367 6
NUT,LOCK,FLANGED,8MM 92015A 92015-1397 2
NUT,CLAMP,6MM 92015B 92015-1678 4
WASHER,6.5X16X1.0 92022 92022-1093 6
GASKET,6X14X0.8 92065 92065-092 1
PLUG 92066 92066-1438 2
GROMMET 92071 92071-1131 2
COLLAR 92143 92143-1087 1
COLLAR,L=38.5 92152 92152-0098 2
COLLAR 92152A 92152-0224 6
BOLT,FLANGED,8X68 92153 92153-0326 2
DAMPER 92161 92161-0272 2
NUT,6MM 92210 92210-1368 5
