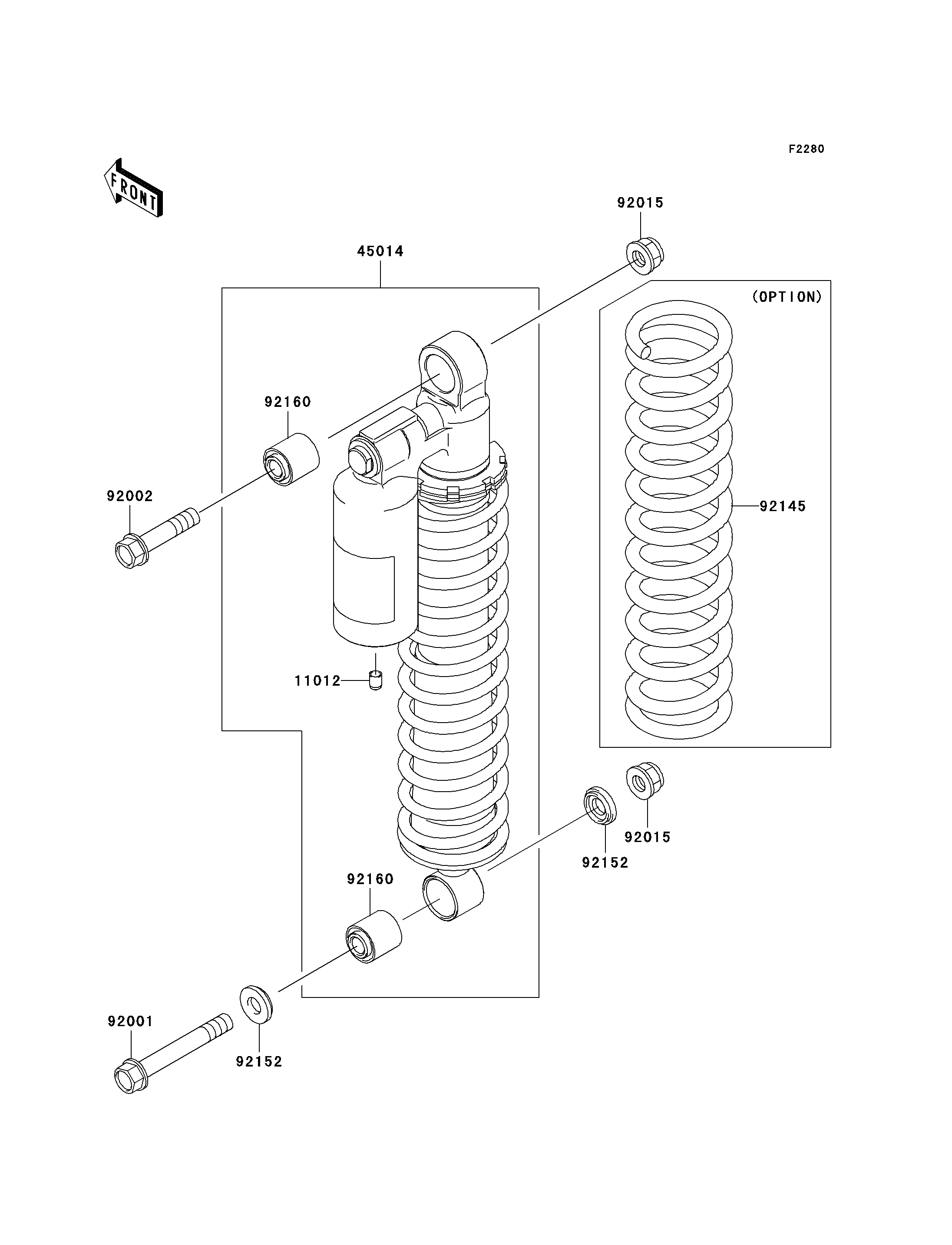

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1283 1
SHOCKABSORBER 45014 45014-0028 1
BOLT,FLANGED,12X88 92001 92001-1693 1
BOLT,FLANGED,12X55 92002 92002-1840 1
NUT,FLANGED,LOCK,12MM 92015 92015-1617 2
SPRING,REAR SHOCK,K=24.5N/MM 92145 92145-0231 1 (OPTION)
COLLAR 92152 92152-1293 2
DAMPER,SHOCKABSORBER 92160 92160-1777 2
