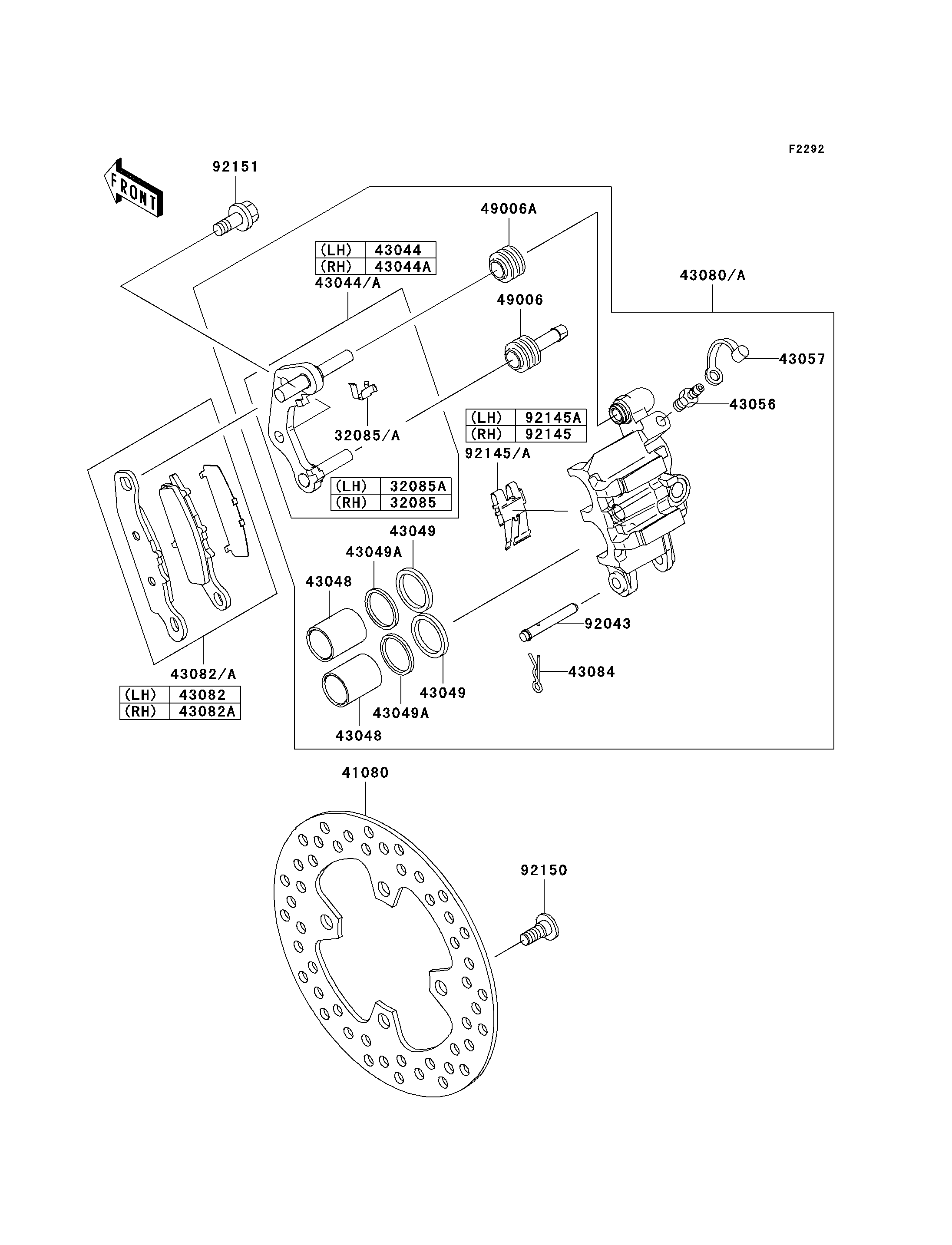

2005 Brute Force 650 4x4 - Front Brake
32085
32085A
41080
43044
43044A
43048
43048
43049
43049
43049A
43049A
43056
43057
43080
43080A
43082
43082A
43084
49006
49006A
92043
92145
92145A
92150
92151
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
STOPPER | 32085 | 32085-1437 | 1 | ||
STOPPER | 32085A | 32085-1517 | 1 | ||
DISC,FR | 41080 | 41080-1513 | 2 | ||
HOLDER-COMP-CALIPER,FR,LH | 43044 | 43044-1130 | 1 | ||
HOLDER-COMP-CALIPER,FR,RH | 43044A | 43044-1131 | 1 | ||
PISTON-CALIPER | 43048 | 43048-1083 | 4 | ||
PACKING,PISTON | 43049 | 43049-1059 | 4 | ||
PACKING,PISTON SEAL | 43049A | 43049-1090 | 4 | ||
BREATHER-BRAKE | 43056 | 43056-1054 | 2 | ||
CAP-BREATHER | 43057 | 43057-003 | 2 | ||
CALIPER-SUB-ASSY,FR,RH,BLACK | 43080 | 43080-5081-DJ | 1 | ||
CALIPER-SUB-ASSY,FR,LH,BLACK | 43080A | 43080-5082-DJ | 1 | ||
PAD-ASSY-BRAKE | 43082 | 43082-1255 | 1 | ||
PAD-ASSY-BRAKE | 43082A | 43082-1273 | 1 | ||
CLAMP,PAD | 43084 | 43084-003 | 2 | ||
BOOT,CALIPER | 49006 | 49006-1054 | 2 | ||
BOOT,CALIPER | 49006A | 49006-1055 | 2 | ||
PIN,PAD | 92043 | 92043-1356 | 2 | ||
SPRING,PAD | 92145 | 92145-1260 | 1 | ||
SPRING,PAD | 92145A | 92145-1354 | 1 | ||
BOLT,SOCKET,8X20 | 92150 | 92150-1800 | 8 | ||
BOLT,FLANGED,8X19 | 92151 | 92151-1793 | 4 |
