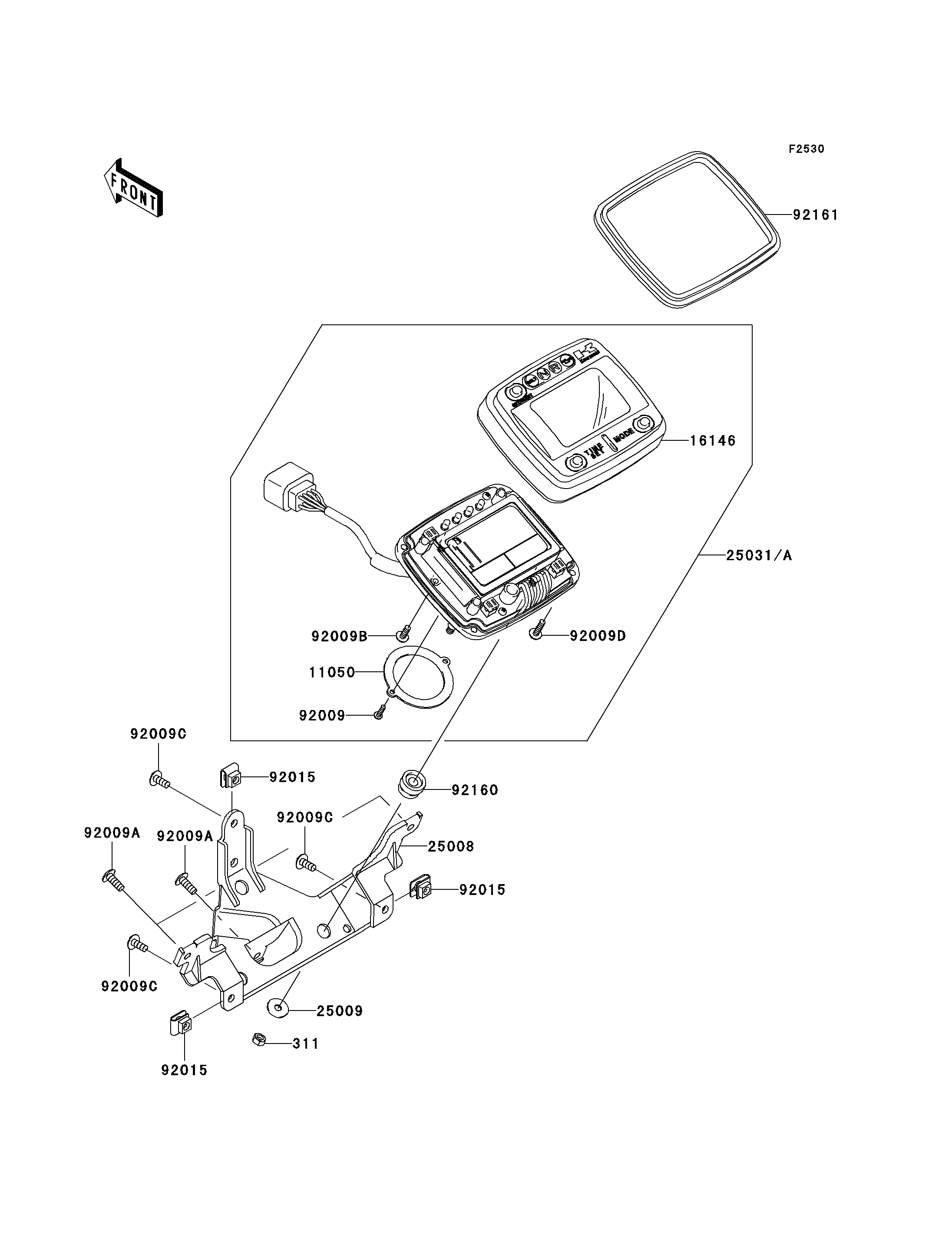

Parts Diagrams |
311
11050
16146
25008
25009
92009
92009A
92009A
92009B
92009C
92009C
92009C
92009D
92015
92015
92015
92160
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT-HEX | 311 | 311C0500 | 3 | ||
| BRACKET,METER | 11050 | 11050-1932 | 1 | ||
| COVER-ASSY,UPPER | 16146 | 16146-0011 | 1 | ||
| BRACKET-METER | 25008 | 25008-0003 | 1 | ||
| WASHER,5.2X16X1.2 | 25009 | 25009-004 | 3 | ||
| SCREW,TAPPING,3X12 | 92009 | 92009-1028 | 2 | ||
| SCREW,TAPPING,5X14 | 92009A | 92009-1197 | 3 | ||
| SCREW,TAPPING,4X12 | 92009B | 92009-1254 | 1 | ||
| SCREW,5X12 | 92009C | 92009-1652 | 3 | ||
| SCREW,6X18 | 92009D | 92009-1663 | 4 | ||
| NUT,5MM | 92015 | 92015-1573 | 3 | ||
| DAMPER | 92160 | 92160-1460 | 3 | ||
| DAMPER,METER,UPP | 92161 | 92161-1114 | 1 | ||
| METER-ASSY,MPH | 25031 | 25031-0034 | 1 | US | |
| METER-ASSY,KPH | 25031A | 25031-0057 | 1 | CN |
| NUT-HEX | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BRACKET,METER | |
| REF # | 11050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-ASSY,UPPER | |
| REF # | 16146 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-METER | |
| REF # | 25008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X16X1.2 | |
| REF # | 25009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,3X12 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X14 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X12 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92009C |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X18 | |
| REF # | 92009D |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER,METER,UPP | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER-ASSY,MPH | |
| REF # | 25031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| METER-ASSY,KPH | |
| REF # | 25031A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
