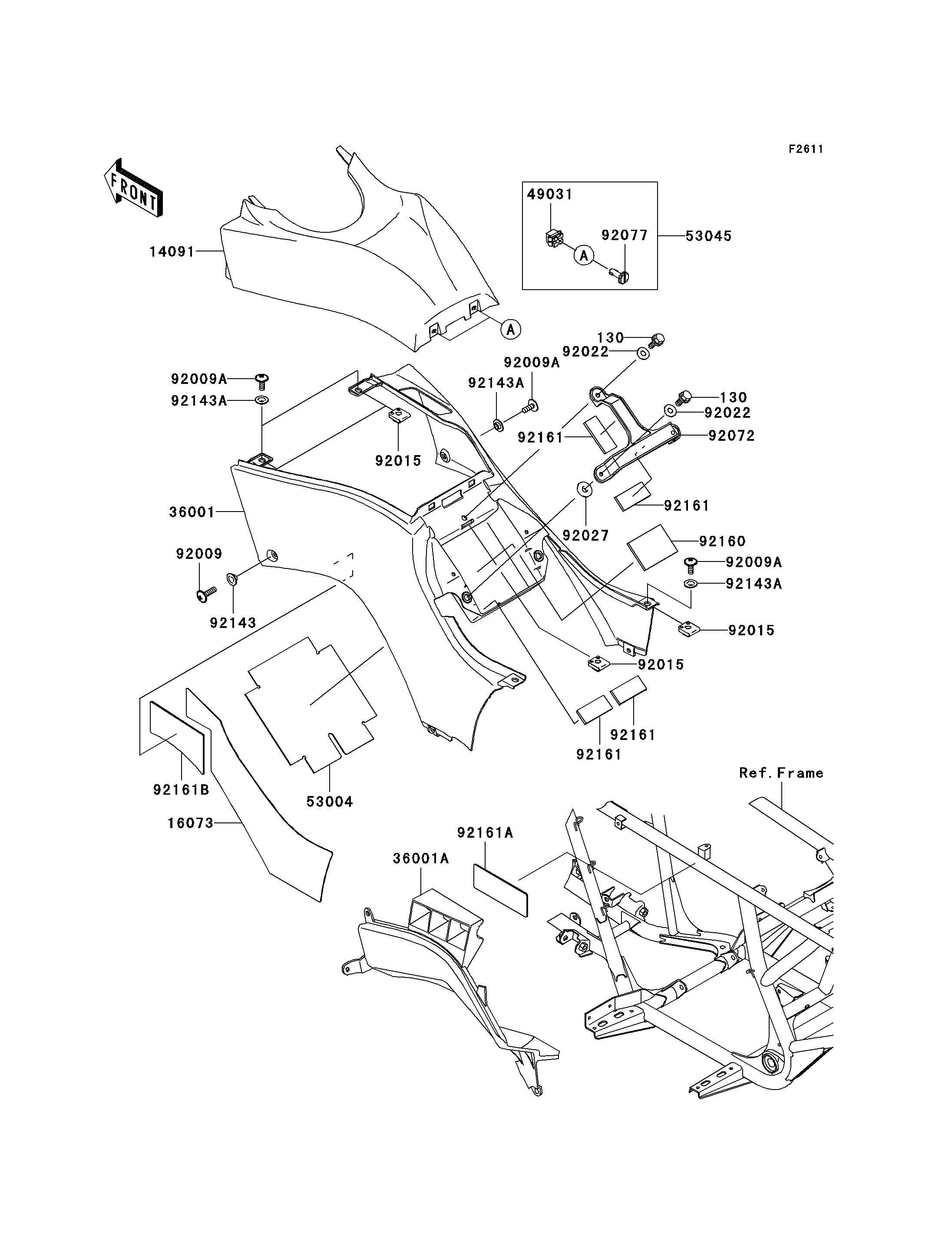

2005 Brute Force 650 4x4 - Side Covers

DOWNLOAD PDF
SELECT A NEW PART
130
130
14091
16073
36001
36001A
49031
53004
53045
92009
92009A
92009A
92009A
92015
92015
92015
92022
92022
92027
92072
92077
92143
92143A
92143A
92143A
92160
92161
92161
92161
92161
92161A
92161B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130J0618 3
COVER,AIR CLEANER,C.H.GREEN 14091 14091-0403-826 1
INSULATOR,SIDE COVER 16073 16073-0019 1
COVER-SIDE,C.H.GREEN 36001 36001-0066-826 1
COVER-SIDE 36001A 36001-1647 1
LATCH 49031 49031-0001 2
MAT,BATTERY CASE 53004 53004-1172 1
HOOK-ASSY 53045 53045-0007 2
SCREW,6X22,BLACK 92009 92009-1256 1
SCREW,6X16 92009A 92009-1621 5
NUT,CLAMP,6MM 92015 92015-1678 5
WASHER,6.5X16X1.0 92022 92022-1093 3
COLLAR,L=4.7 92027 92027-1964 2
BAND,BATTERY 92072 92072-1406 1
KNOB 92077 92077-0002 2
COLLAR 92143 92143-1057 1
COLLAR 92143A 92143-1087 5
DAMPER,BATTERY 92160 92160-1897 1
DAMPER 92161 92161-1127 4
DAMPER,SIDE COVER 92161A 92161-1201 1
DAMPER,FUEL TANK COVER 92161B 92161-1202 1
