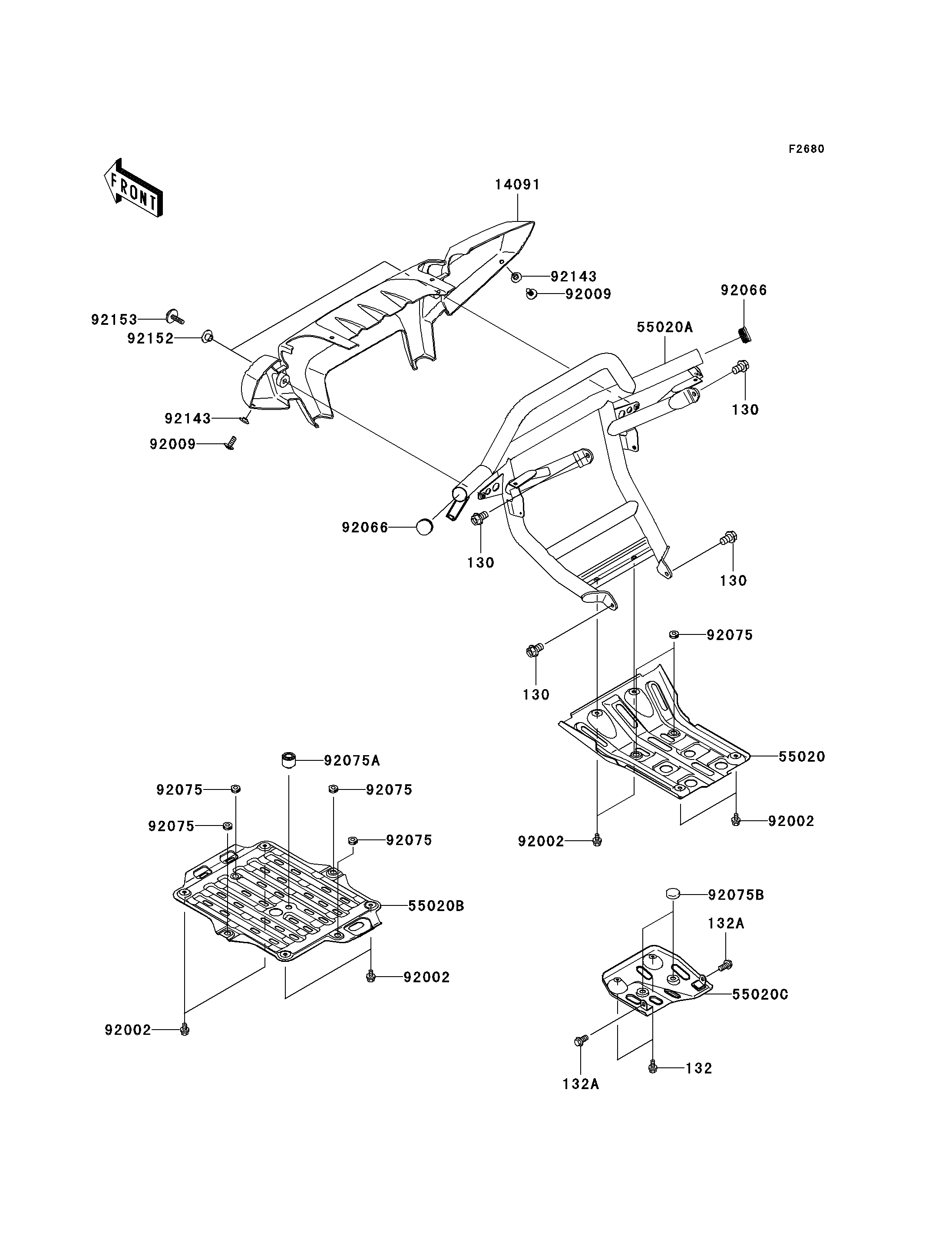

2005 Brute Force 650 4x4 - Guard(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
132
132A
132A
14091
55020
55020A
55020B
55020C
92002
92002
92002
92002
92009
92009
92066
92066
92075
92075
92075
92075
92075
92075A
92075B
92143
92143
92152
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X20 130 130T0820 4
BOLT-FLANGED-SMALL,6X12 132 132J0612 2
BOLT-FLANGED-SMALL,8X16 132A 132J0816 2
COVER,FRONT BUMPER,F.BLACK 14091 14091-0291-6Z 1
GUARD,FRONT SKID 55020 55020-0001 1
GUARD,FRONT,M.GRAYSTONE 55020A 55020-0131-379 1
GUARD,ENGINE,UNDER 55020B 55020-1712 1
GUARD,SWING ARM 55020C 55020-1756 1
BOLT,6X10 92002 92002-1449 8
SCREW,6X16 92009 92009-1621 2
PLUG 92066 92066-0035 2
DAMPER 92075 92075-051 6
DAMPER 92075A 92075-1002 1
DAMPER 92075B 92075-157 2
COLLAR 92143 92143-1087 2
COLLAR 92152 92152-0181 2
BOLT,SOCKET,6X22 92153 92153-0665 2
