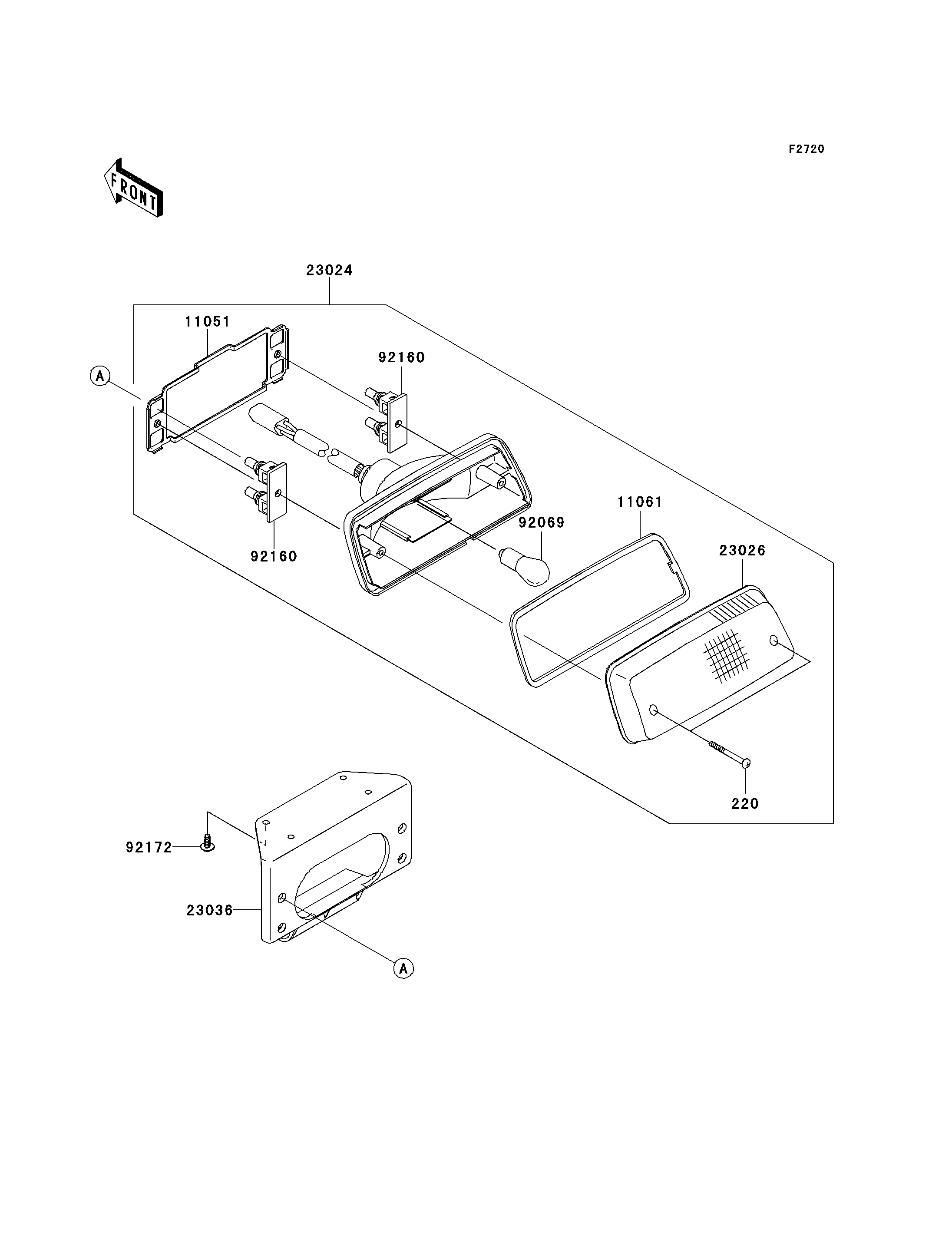

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,4X40 220 220B0440 2
BRACKET,TAIL LAMP 11051 11051-1870 1
GASKET,TAIL LAMP LENS 11061 11061-0055 1
LAMP-ASSY-TAIL 23024 23024-1130 1
LENS,TAIL LAMP 23026 23026-1230 1
BRACKET-TAIL LAMP 23036 23036-0005 1
BULB,12V 21/5W 92069 92069-063 1
DAMPER,TAIL LAMP 92160 92160-1053 2
SCREW,TAPPING,5X10 92172 92172-1061 4
