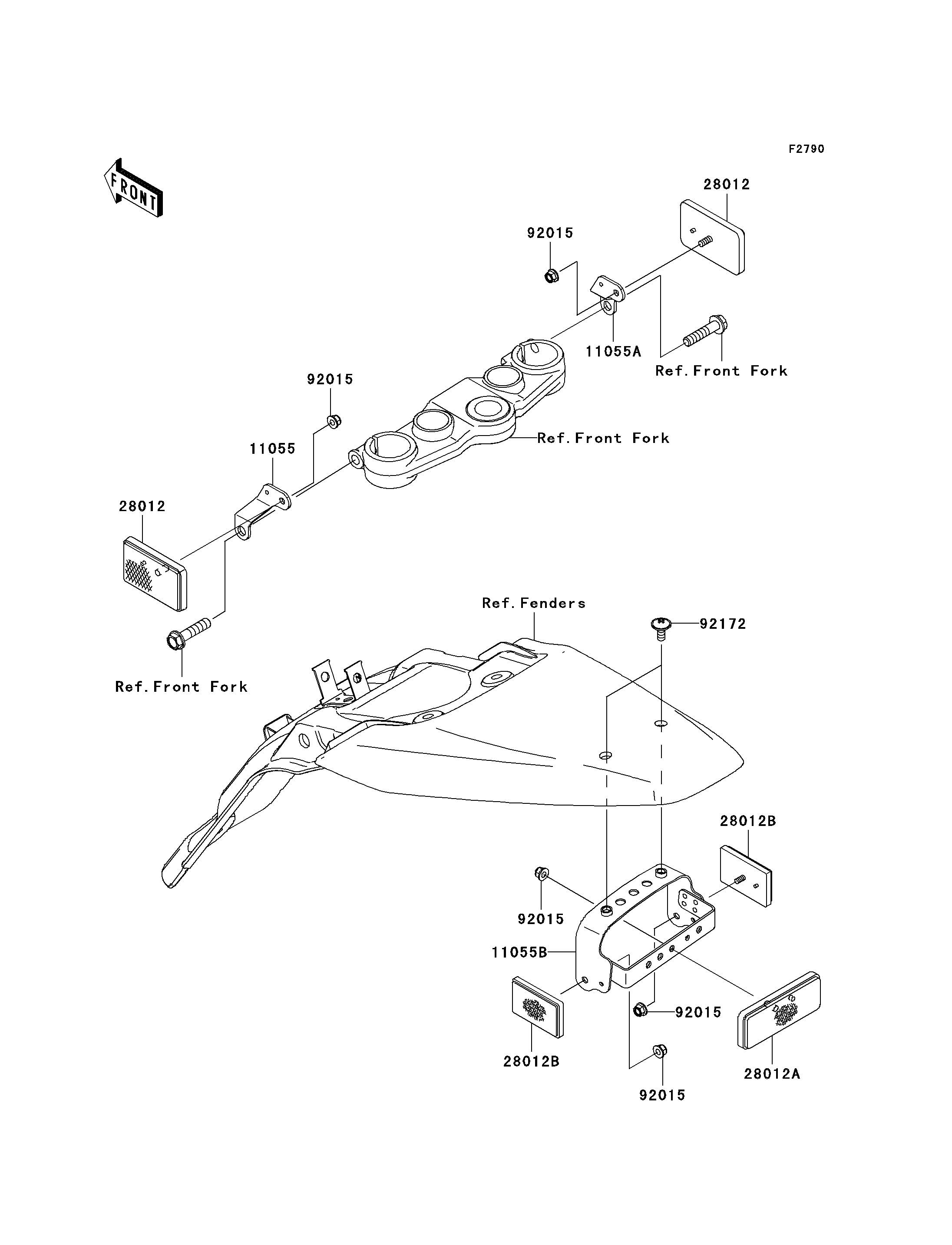

2008 KLX®140 - Reflectors(A8F/A9F/AAF/ABF)(CN)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR,FR,LH 11055 11055-0469 1 CN
BRACKET,REFLECTOR,FR,RH 11055A 11055-0470 1 CN
BRACKET,REFLECTOR,RR 11055B 11055-0770 1 CN
REFLECTOR-REFLEX 28012 28012-1003 2 CN
REFLECTOR-REFLEX 28012A 28012-1077 1 CN
REFLECTOR-REFLEX 28012B 28012-1088 2 CN
NUT,LOCK,FLANGED,5MM 92015 92015-1752 5 CN
SCREW,6X14 92172 92172-0401 2 CN
