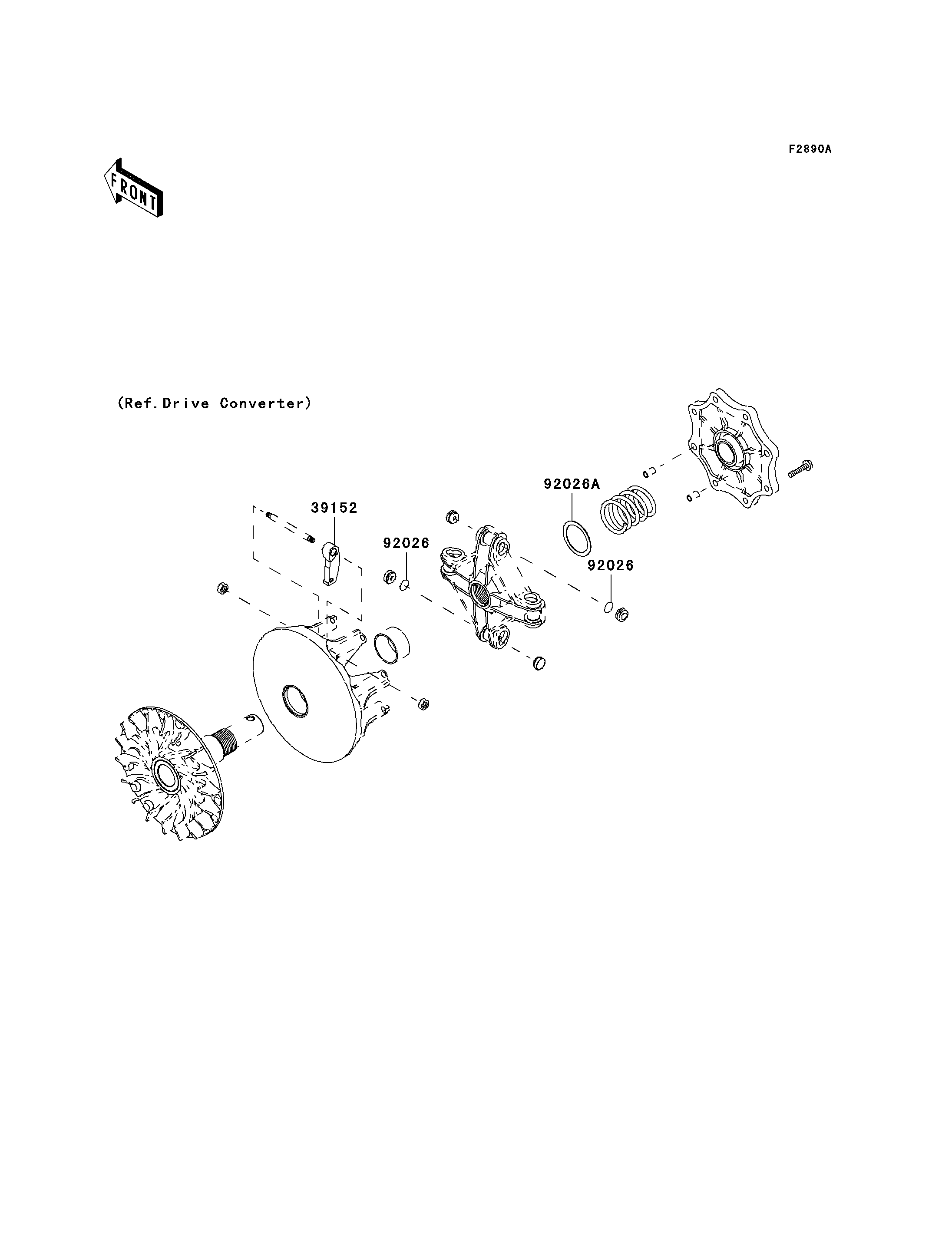

39152
92026
92026
92026A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT-RAMP 39152 39152-1088 4 (OPTION)
SPACER,T=0.1 92026 92026-0038 2 (OPTION)
SPACER,39X49.5X1.0 92026A 92026-1603 1 (OPTION)
